Summary of Contents for BZB Gear BG-MFVS61-G2

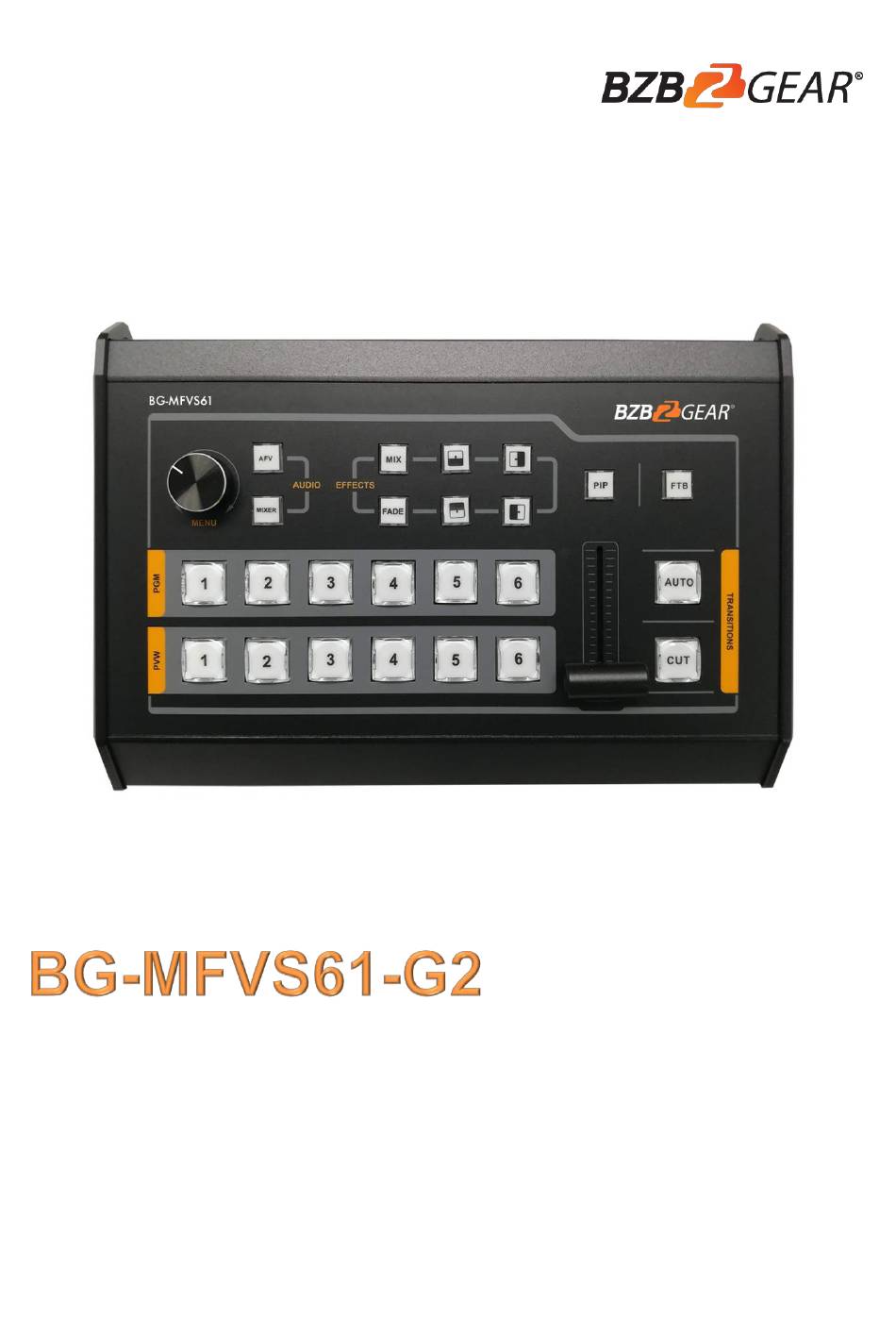

  • Page 1 6-input 3G-SDI / HDMI Video Mixer and Production Switcher with Integrated Capture...
  • Page 2 USING THE UNIT SAFELY Before using this unit, please read below warning and precautions which provide important information concerning the proper operation of the unit. Besides, to assure that you have gained a good grasp of every feature of your new unit, read below manual. This manual should be saved and kept on hand for further convenient reference.

  • Page 3: Table Of Contents

    CONTENTS 1. BRIEF INTRODUCTION ..........................2 1.1. Overview ..............................2 1.2. Main Features............................. 2 2. INTERFACES ..............................3 2.1. Rear Interfaces ............................3 2.2. Tally PIN Definition ............................ 3 3. SPECIFICATION ............................4 4. FRONT CONTROL PANEL ......................... 5 5. OPERATION INSTRUCTION ........................6 5.1.

  • Page 4: Brief Introduction

    1. BRIEF INTRODUCTION 1.1. Overview The BG-MFVS61-G2 is a compact 6-channel SDI/HDMI multi-format video switcher that allows video switching, audio mixing, and different transition effects. The inclusion of a USB 3.0 video output allows direct connection to a PC or Mac for streaming directly to platforms like YouTube and Facebook.

  • Page 5: Interfaces

    2. CONNECTIONS 2.1. Rear Panel LAN (for update) 3.5mm AUDIO IN/ OUT AUDIO OUT AUDIO IN HDMI PGM OUT HDMI &SDI MULTIVEW OUT SDI AUX OUT SDI PGM OUT SDI IN HDMI IN DC 12V Power Switch SDI AUX OUT(for PVW/PGM) USB OUT (for live streaming) GPIO (for tally) 2.2.

  • Page 6: Specification

    3. SPECIFICATIONS Video Inputs 4×3G/HD/SD-SDI, 2×HDMI 1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98 SDI Input Format 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50 PAL, 525i 59.94 NTSC 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976 1080i 50/59.94/60 HDMI Input Format Inputs 720p 60/59.94/50/30/29.97/25/24/23.98 576i 50, 576p 50 SDI Video Rate Auto detection, SD/HD/3G-SDI SDI Compliance SMPTE 259M/ SMPTE 292M/ SMPTE 424M...

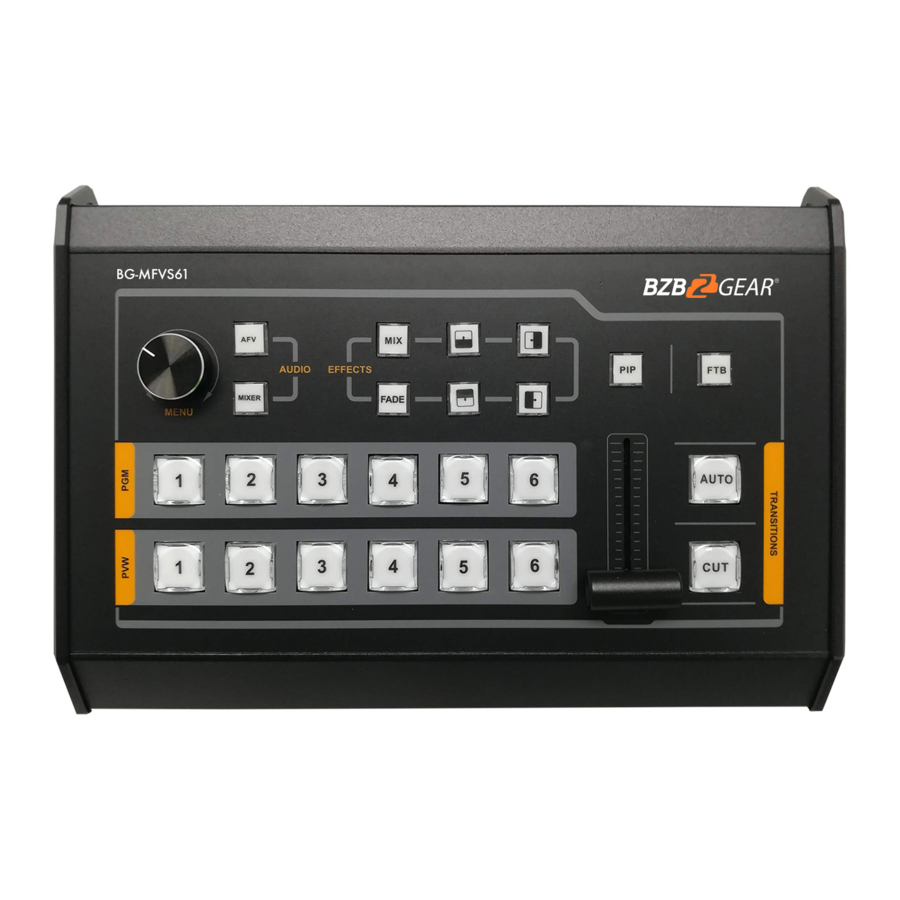

  • Page 7: Front Control Panel

    RJ45 Power DC 12V, 1.8A Consumption ≤ 22W Operation Temperature -20℃~60℃ Storage Temperature -30℃~70℃ Operation Humidity 20%~70%RH Dimensions 330×243.5×67mm Weight Warranty 2-Year Limited 1×Power Supply (DC12V 2A), Accessories Accessories 1×USB3.0 Cable Type-C to Type-A 4. FRONT CONTROL PANEL PVW:1-6 Select the signal source for Preview. PGM:1-6 Select the signal source for Program MENU...

  • Page 8: Operation Instruction

    Audio follow video mode FADE Fade transition effect Mix transition effect Wipe transition effect Picture in Picture Fade to Black AUTO Performs an automated switch between Program and Preview. Performs a simple immediate switch between Program and Preview. T-bar Manual Transition between Program and Preview. 5.

  • Page 9: Pgm Pvw Switching

    The lower right corner of the display features the menu and status information. The CH1, CH2 are the channel selection of the 2 audio sources for audio mixer. There is a real-time Digital clock/Analog clock displayed beside the menu. 5.2. PGM PVW Switching 5.2.1.

  • Page 10: Transition Control

    5.3. Transition Control There are two transition control types for this video switcher: Transition without effects and Transition with effects. 1) Transition without Effects CUT performs a simple immediate switch between Preview and Program views. This is no delay seamless switching and the selected transition effect WIPE, MIX or FADE is not used. 2) Transition with Effects AUTO performs an automated switch between Preview and Program views.

  • Page 11: Fade Transition

    For example: If choosing , use T-Bar or AUTO to operate the transition and the WIPE effect is as follows: INV button is an alternative button. Press it first and then press a Direction button, the WIPE will start from an inverse direction.

  • Page 12: Menu Setting

    6. MENU SETTING 6.1. SDI PGM/ AUX and Multiview Output Format The output format of multiview is fixed at 1080p60, and for PGM output it can be set in the menu. In addition to the PVW and PGM outputs there is a selectable AUX output. The auxiliary output can easily be switched between PVW and PGM via Menu knob.

  • Page 13: Pip Mode

    6.3. PIP Mode When PIP is pressed a small image will appear on the top left corner of PVW window as in following image. The menu will enter an interface as shown below. The window size, position and border of PIP can be set from the menu.

  • Page 14: Network Settings

    Connect the switcher to a PC and download the time control software from our website: https://bzbgear.com/knowledge-base/how-to-set-the-time-on-the-bg-mfvs-61/ Open the software and click Scan to search and connect the device, then the clock time will be changed to same time as the PC. 6.5.

  • Page 15: Warranty / Mission Statement

    Warranty BZBGEAR wants to assure you peace of mind. All BZBGEAR cameras and camera-related products include our Stress-Free Three-Year Warranty. For complete warranty information, please visit BZBGEAR.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind.
