- Page 1 User Manual BG-UHD-KVM41 HDMI 2.0 4x1 Switcher with KVM USB3.0 All Rights Reserved...
- Page 2 Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment. Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
Table of Contents 1. Product Introduction ....................1 1.1 Features ....................... 1 1.2 Package List ....................2 2. Specification ......................3 3. Panel Description ....................4 3.1.1 Front Panel..................4 3.1.2 Rear Panel ..................5 4. System Connection ....................6 4.1 Usage Precaution .................. -
Page 5: Product Introduction
1. Product Introduction Thanks for choosing the professional BG-UHD-KVM41 HDMI 2.0 4x1 Switcher. The switcher features four HDMI video inputs and one HDMI output. It supports HDMI video resolution up to 4Kx2K@60Hz 4:4:4 HDR 10 and Dolby Vision. The switcher... -
Page 6: Package List
1.2 Package List 1x BG-UHD-KVM41HDMI 2.0 4x1 Switcher 2x Mounting Ears with 4 Screws 4x Plastic Cushions 4x 3-pin Terminal Blocks 1x RS232 Cable (3-pin to DB9) 1x Power Adapter (12V DC 2A) 1x User Manual Note: Please contact your distributor immediately if you found any damage or defect in the components. -
Page 7: Specification
2. Specification Video Input Input (4) SOURCE 1~4 Input Connector (4) Female type-A HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4, HDR10, Dolby Vision HDMI Standard HDCP Version Video Output (1) DISPLAY Output Output Connector (1) Female type-A HDMI HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4, HDR10, Dolby Vision HDMI Standard HDCP Version... -
Page 8: Panel Description
General Bandwidth 18Gbps Operation Temperature -10℃ ~ +55℃ Storage Temperature -25℃ ~ +70℃ Relative Humility 10%-90% Type-A USB Power Supply System Power Supply Input:100V~240V AC; Output: 12V DC 2A System Power Consumption 14W(Max) Dimension (W*H*D) 200mm x 40mm x 100mm Net Weight 685g 3. -
Page 9: Rear Panel

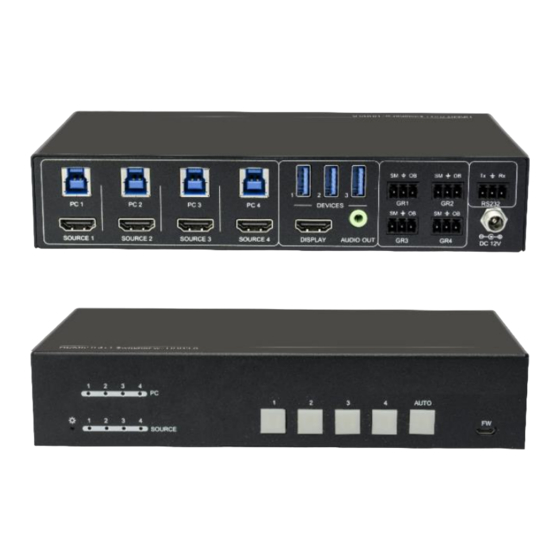

the HUG Table Grommet 3.1.2 Rear Panel PC 1 PC 2 PC 3 PC 4 DEVICES RS232 SOURCE 1 SOURCE 2 SOURCE 3 SOURCE 4 DISPLAY AUDIO OUT DC 12V ① SOURCE1~SOURCE4: Four type-A female HDMI input ports to connect HDMI source devices (PC, Blu-ray Disc™... -
Page 10: System Connection
4. System Connection 4.1 Usage Precaution Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and safe. -
Page 11: Button Control
5. Button Control Manual Switching Press button 1~4 to the corresponding HDMI input source. Auto Switching Press AUTO to enable auto switch mode, and then the button LED will illuminate blue. When in auto mode, the switcher follows the rules in the certain circumstances: The switcher will automatically switch to the first available active input starting at input 1 to 4. -
Page 12: Rs232 Control
7. RS232 Control Connect the switcher to the control device (e.g. PC) with RS232 cable and set the parameters in the right manner, the control device is capable to control this switcher by RS232 commands. 7.1 RS232 Control Software Installation: Copy the control software file to the computer connected with this switcher. - Page 13 The interface of the control software is shown as below: Parameter configuration area Monitoring area, indicates if the command sent works. Command sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, then the RS232 commands can be sent in Command Sending Area.
-
Page 14: Rs232 Command
@INPUT_SIGNAL_DETECTION 0! #GET_HDMI_DETECTI Get the detection method of ON_MODE HDMI source input. @INPUT_SIGNAL_DETECTION 1! @RS232 QUERY STATUS! @BG-UHD-KVM41 @V1.0.0 @FRONT PANEL UNLOCK! @HDMI OUT SWITCH TO AUTO MODE! #GET_STATUS Get the system status. @HDMI IN SWITCH TO 1! @OUTPUT_HDCP 0! -
Page 15: Signal Switching
Command Description Command Example and Feedback #REBOOT Reboot the device. @REBOOT Get all commands and its #HELP usage. 7.2.2 Signal Switching Command Example and Command Description Feedback #SET_AV H1 Switch to HDMI source 1. @HDMI IN SWITCH TO 1! #SET_AV H2 Switch to HDMI source 2. -
Page 16: Edid Management
7.2.4 EDID Management Command Example and Command Description Feedback [PARAM]= 0000~0011 [PARAM]=0000, set the EDID mode to #SET_EDID_MODE 0000 Pass-through (Factory default). If the source device can’t read EDID from #SET_EDID_MODE display device, it will use the built-in [PARAM] EDID: 3840x2160@60Hz Deep Color Stereo Audio. -
Page 17: Baudrate Setting
Command Example and Command Description Feedback HDCP version of HDMI output is HDCP 1.4 for broader video solution. If the input video has no HDCP content, the HDMI output has no HDCP too. #GET_OUTPUT_HDC Get the HDCP mode of HDMI output. @OUTPUT_HDCP 0! 7.2.6 Baudrate Setting Command Example and... -
Page 18: Firmware Upgrade
8. Firmware Upgrade Please follow the steps as below to upgrade firmware by the FW port on the front panel: 1) Prepare the latest upgrade file (.bin) and rename it as “FW_MERG.bin” on PC. 2) Power off the switcher, and connect the FW port of switcher to the PC with USB cable. -
Page 19: Panel Drawing
9. Panel Drawing 200.00 mm HDMI2 0 4x1 Switcher w USB3 0 BG-UHD-KVM41 Switcher... -
Page 20: Troubleshooting & Maintenance
10. Troubleshooting & Maintenance Problems Potential Causes Solutions Bad quality of the Try another high quality connecting cable. cable. Output image with white noise. Make sure the connection Fail or loose connection. is good Check with oscilloscope No signal at the input / or multimeter if there is output end. -
Page 21: Customer Service
11. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is one year. 2) Scope These terms and conditions of Customer Service apply to the customer service provided for the products or any other items sold by authorized distributor only. -
Page 22: Second Year Assurance
12. Warranty Information (Second Year Assurance) BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*! Taking advantage of this program is simple, just follow the steps below: 1. -
Page 23: Mission Statement
13. Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.
