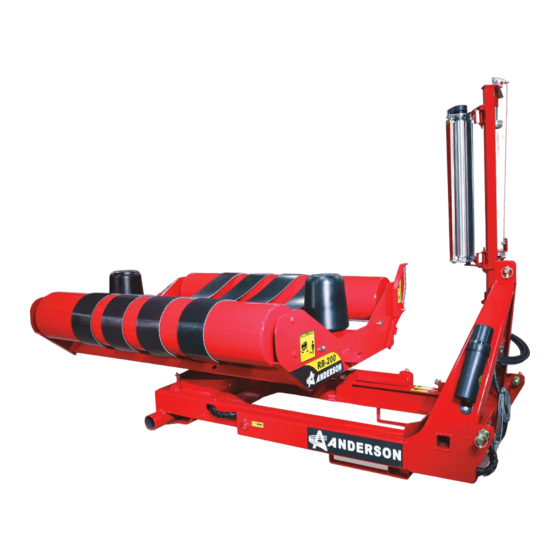

Anderson RB200 Quick Start Manual

Hide thumbs Also See for RB200:

QUICK START GUIDE

RB200

This Quick start up guide does not replace in any way or form the

user manual of this unit. The intension of this document is for use

when setting up the machine after delivery to the dealer and before

the machine is transferred to the end user. This document should

be used as a checklist and memory aid for employees already

familiar with the guidelines in the user manual. Failure to operate

the product correctly can result in damage to the product, personal

property, and cause serious injury. This guide should not be

transferred to the owner of the machine.

Table of Contents

Need help?

Do you have a question about the RB200 and is the answer not in the manual?

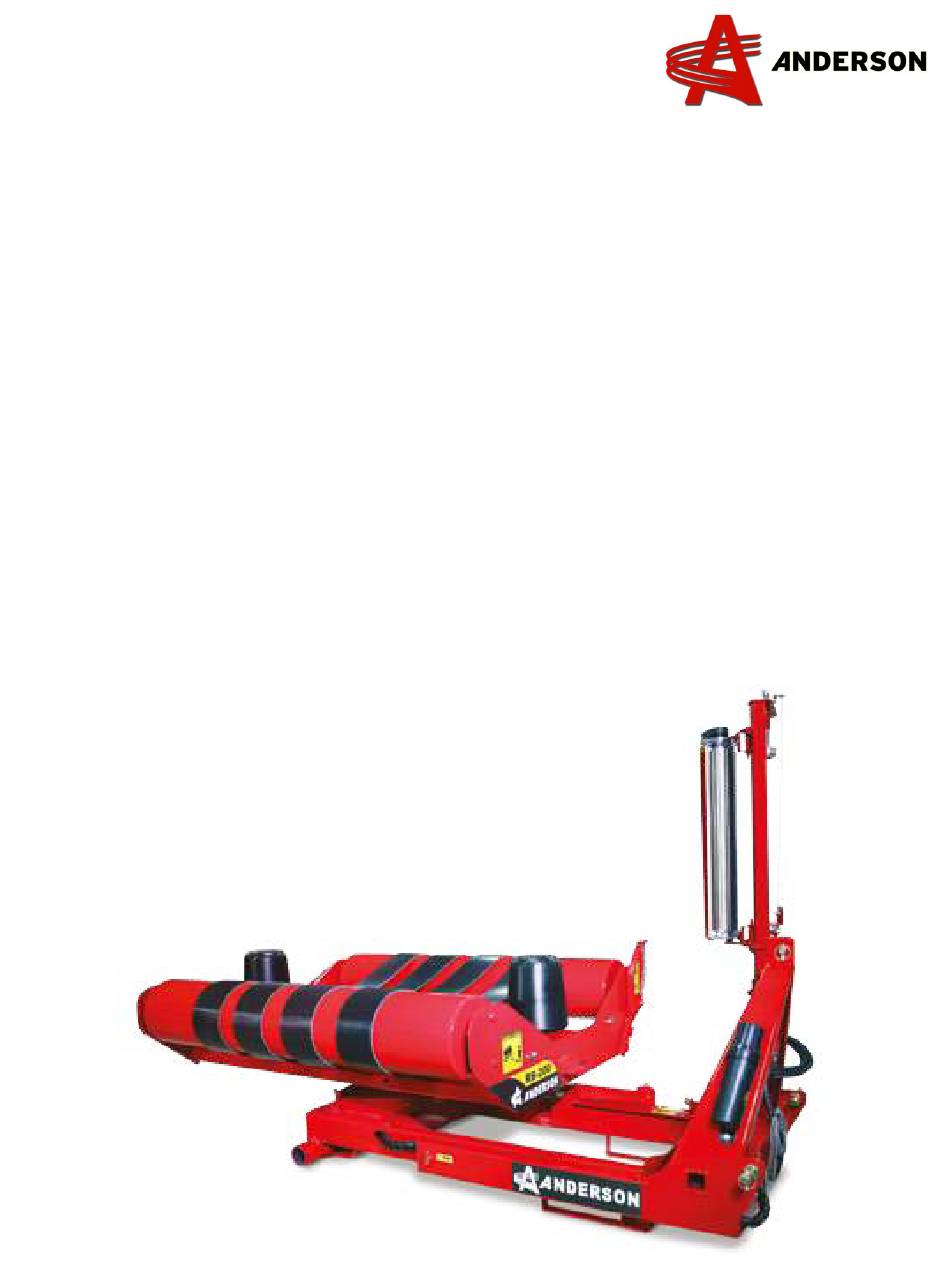

Page 1 QUICK START GUIDE RB200 This Quick start up guide does not replace in any way or form the user manual of this unit. The intension of this document is for use when setting up the machine after delivery to the dealer and before the machine is transferred to the end user.
Page 2 QUICK START GUIDE RB200 After receiving your machine you will want to set it up to be ready for any demo opportunity or sale that may come along. Besides that, you want to be sure that the machine is in factory condition, free of damage from transport and defective parts due to the transport from our factory to your dealership.
Page 3 QUICK START GUIDE (WITHOUT BALE) RB200 Hook the machine to a tractor to test it. Be sure that the tractor and the machine are secured by the pins supplied with the machine. (See the below illustrations) Attach the machine’s hoses to the tractor as shown.
Page 4 QUICK START GUIDE (WITH BALE) RB200 When the machine is to be delivered to the user there are steps you must follow to be sure they are comfortable with wrapping their first bale. These steps are also important if you are doing a live demo.
Page 5 QUICK START GUIDE (WITH BALE) RB200 Turn on the bale counter and set it up. 1) Press the ON button 2) You will have to set the counter up. To do so you will hold the Adjust Select for 3 seconds. You can then scroll through 4 menus with the same button (adjust select) 3) Use the + and –...
