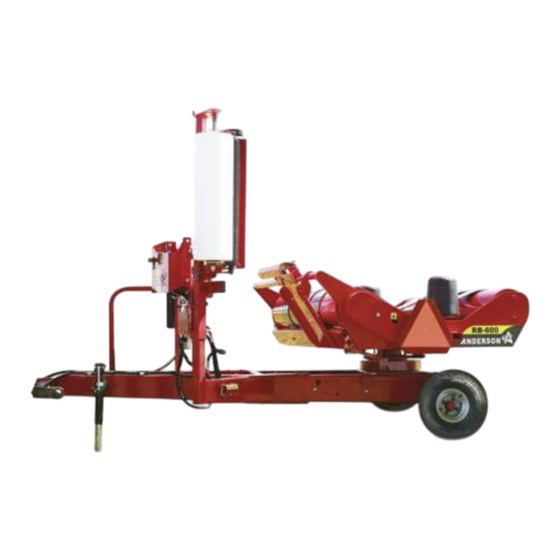

Anderson RB600 Quick Start Up Manual

Table of Contents

Download this manual

QUICK START UP

RB600

This Quick start up guide does not replace in any way or form the

user manual of this unit. The intension of this document is for use

when setting up the machine after delivery to the dealer and before

the machine is transferred to the end user. This document should

be used as a checklist and memory aid for employees already

familiar with the guidelines in the user manual. Failure to operate

the product correctly can result in damage to the product, personal

property, and cause serious injury. This guide should not be

transferred to the owner of the machine.

Table of Contents

Need help?

Do you have a question about the RB600 and is the answer not in the manual?

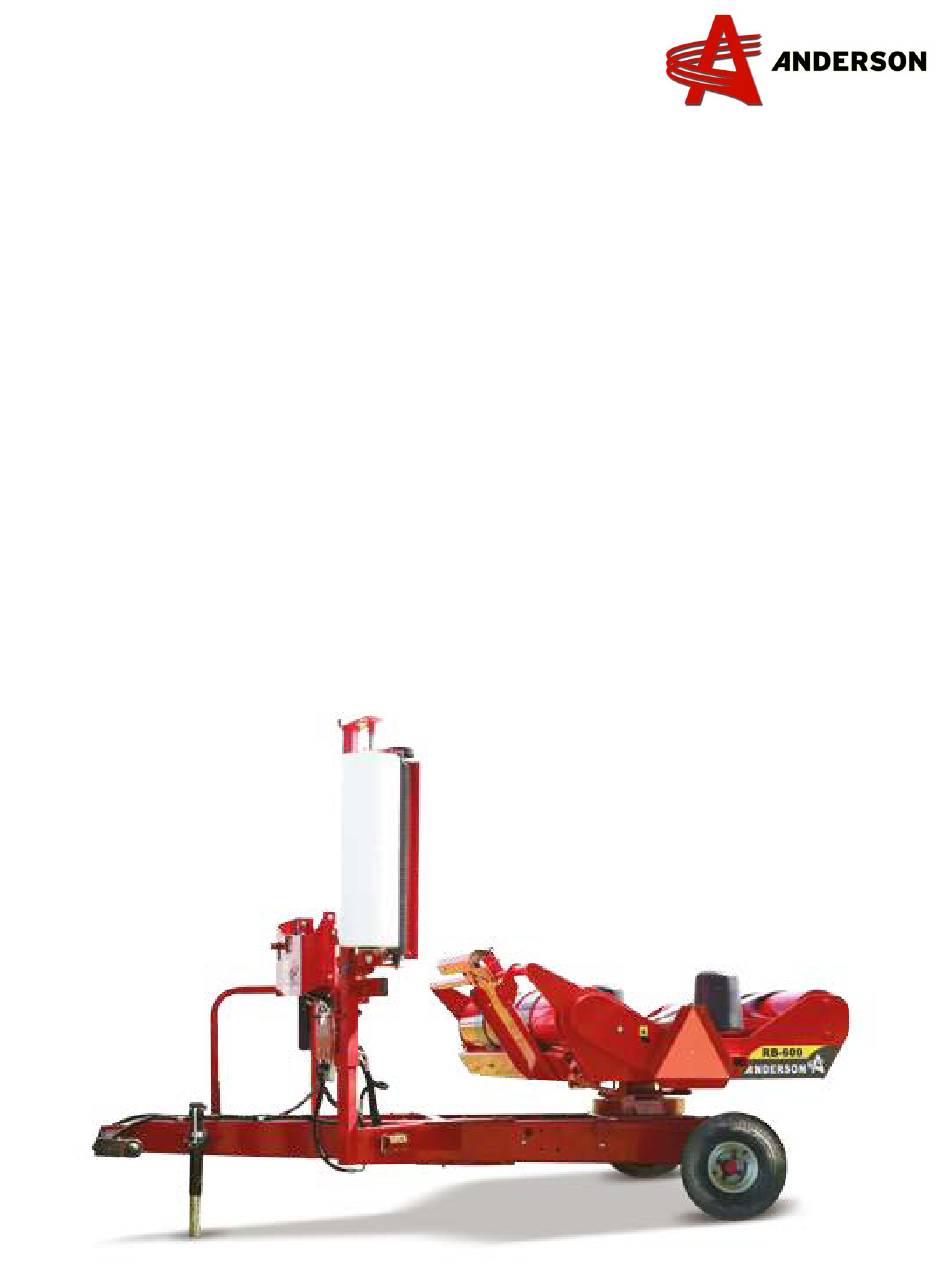

Page 1 QUICK START UP RB600 This Quick start up guide does not replace in any way or form the user manual of this unit. The intension of this document is for use when setting up the machine after delivery to the dealer and before the machine is transferred to the end user.
Page 2 QUICK START GUIDE RB600 After receiving your machine you will want to set it up to be ready for any demo opportunity or sale that may come along. Besides that, you want to be sure that the machine is in factory condition, free of damage from transport and defective parts due to the transport from our factory to your dealership.
Page 3 QUICK START GUIDE RB600 When the machine is to be delivered to the user there are steps you must follow to be sure they are comfortable with wrapping their first bale. These steps are also important if you are doing a live demo.
Page 4 QUICK START GUIDE RB600 Hook the machine up to a tractor to test it. Attach the machine’s hoses to the tractor as shown. Be sure that your tractor is adjusted at a flow rate of 8 GPM at 2000 PSI.
Page 5 QUICK START GUIDE RB600 The RB500 is equipped with a mechanical cut and hold system. The mechanical cut and hold works on a rack and pinion system that stretches a large spring as the table turns. The trigger for the release of the system is under the table and is activated as the table dumps.
