QUICK START GUIDE

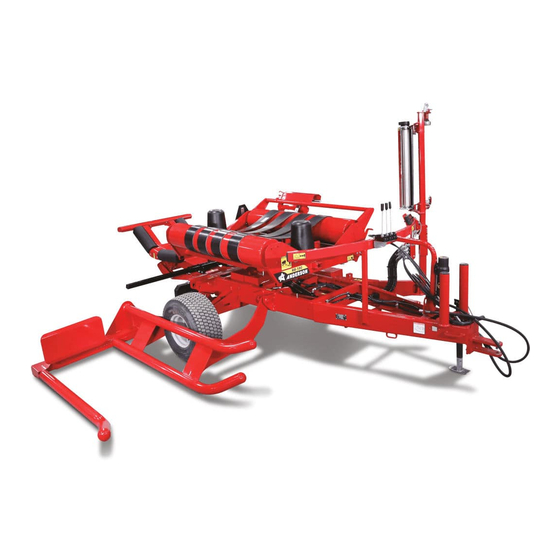

RB580
This Quick start up guide does not replace in any way or form the
user manual of this unit. The intension of this document is for use
when setting up the machine after delivery to the dealer and before
the machine is transferred to the end user. This document should
be used as a checklist and memory aid for employees already
familiar with the guidelines in the user manual. Failure to operate
the product correctly can result in damage to the product, personal
property, and cause serious injury. This guide should not be
transferred to the owner of the machine.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Anderson RB580
Summary of Contents for Anderson RB580

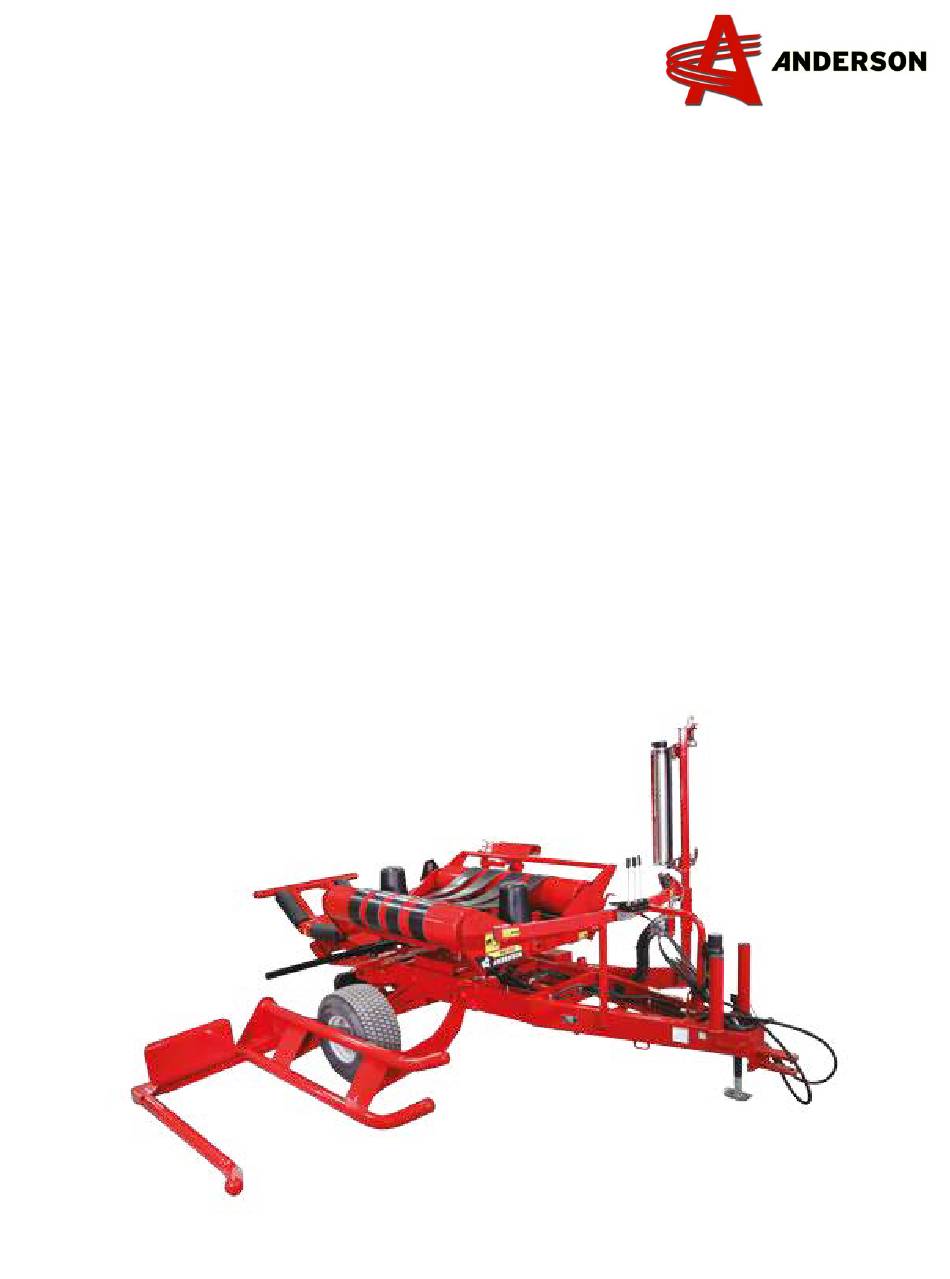

- Page 1 QUICK START GUIDE RB580 This Quick start up guide does not replace in any way or form the user manual of this unit. The intension of this document is for use when setting up the machine after delivery to the dealer and before the machine is transferred to the end user.
- Page 2 QUICK START GUIDE RB580 After receiving your machine you will want to set it up to be ready for any demo opportunity or sale that may come along. Besides that, you want to be sure that the machine is in factory condition, free of damage from transport and defective parts due to the transport from our factory to your dealership.
- Page 3 QUICK START GUIDE RB580 When the machine is to be delivered to the user there are steps you must follow to be sure they are comfortable with wrapping their first bale. These steps are also important if you are doing a live demo.
- Page 4 QUICK START GUIDE RB580 Hook the machine to a tractor to test it. Attach the machine hoses to the tractor as shown. Be sure that your tractor is adjusted at a flow rate of 8 GPM at 2000 PSI. Turn on the bale counter and set.
- Page 5 QUICK START GUIDE RB580 The RB580 is equipped with a mechanical cut and hold system. The mechanical cut and hold works on a rack and pinion system that stretches a large spring as the table turns. The trigger for the release of the system is under the table and is activated as the table dumps.
- Page 6 QUICK START GUIDE RB580 The RB580 is equipped with a loading arm that make it possible to load bale directly onto the bale wrapper without using a frontal loader. The loading arm is sent with extension cables to control the wrapper from the tractor seat. For loading a bale, the turntable must be parallel to the loading arm.
