Terminal Adapter (QDGY911912) Setting

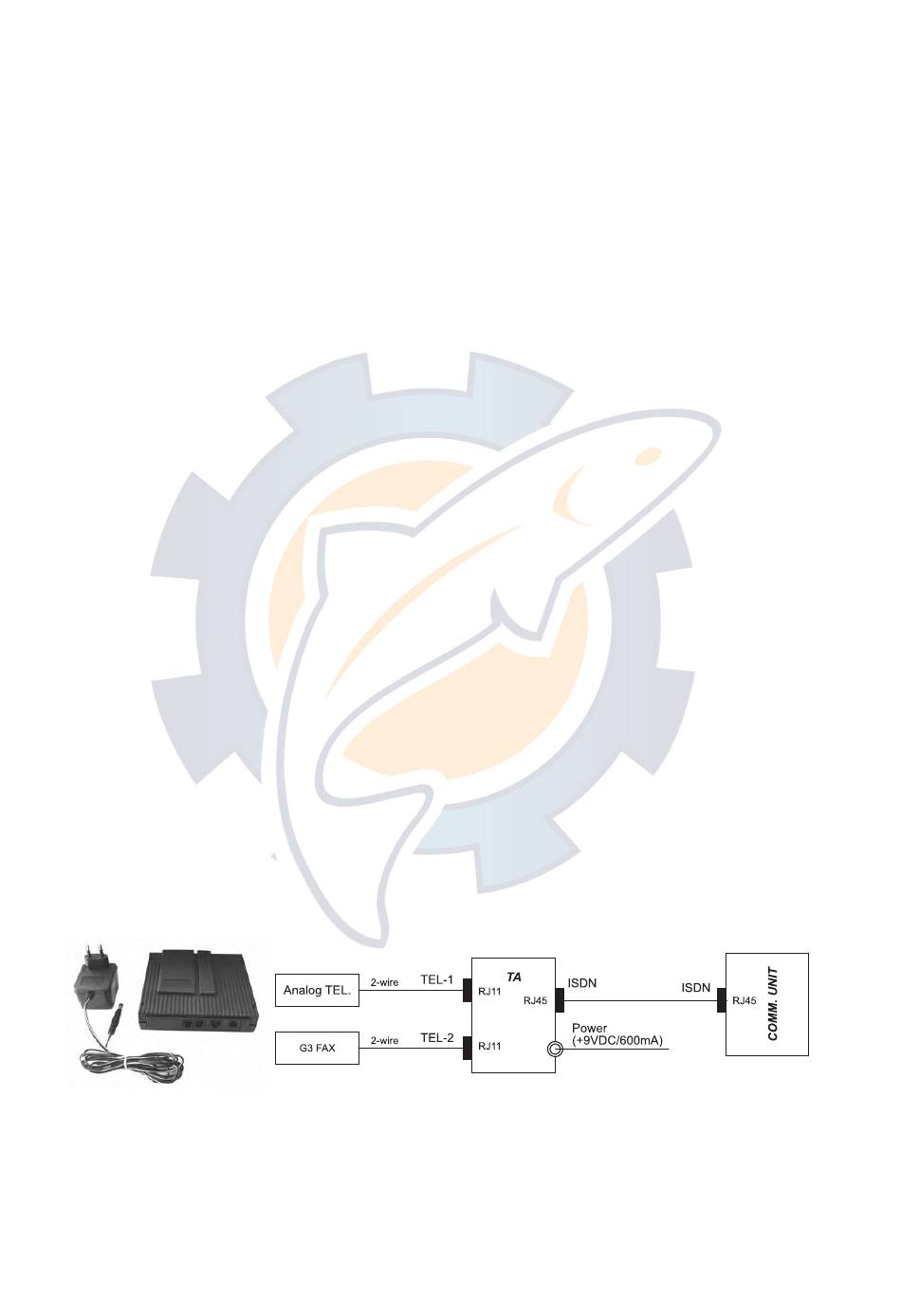

The terminal adapter is used to connect analog devices to the ISDN port. The analog device
supports 4.8k speech and 9.6kbps fax. All programming of the terminal adapter is done with
the analog telephone/fax connected to the terminal adapter to be programmed (except PIN
code which can be programmed from any port).
• Command sequence: [*][Command][*][parameter][#]
• When the setting command is accepted, a long beep sounds ("Pi-, Pi --") from the
telephone handset.
• When the setting command is not accepted, a trill beep sounds ("Piro-, Piro -") from the
telephone handset.
To set the terminal adapter:
1. Set Terminal ID and MSN, using "Device manager" in the Configuration menu of vtLite
Mobile.
1. Set the five-digit PIN code. For example, to change PIN code from "00000" to "01234,"
press [*][9][0][*][0][0][0][0][0][*][0][1][2][3][4][#] on the terminal device. The PIN setting
can be made on any terminal device.
[9][0]= PIN code setting command
[0][0][0][0][0]= Previous PIN code
[0][1][2][3][4]= New PIN code
3. Assign MSN to Terminal Adapter port. To do so, use the following key strokes on each
terminal unit.
MSN=40 (9.6kbps fax):
MSN=21 (4.8k Speech):
[0][1]= MSN setting command
[0][1][2][3][4]= PIN code
[4][0]= MSN
[2][1]= MSN
4. Set service type onto Terminal Adapter, using the following key strokes.
G3 FAX (Type: 4):
Analog telephone, Modem (Type: 2): [*][0][4][*][0][1][2][3][4][*][2][#]
[0][4]= Service type setting command
[0][1][2][3][4]= PIN code
[4]= Fax
[2]= Telephone
Note: It is imperative that you remember your newly configured PIN. It is recommended
that you write it down and store it in a safe place. Should you forget your PIN, you
will not be able to change any settings.
[*][0][1][*][0][1][2][3][4][*][4][0][#]
[*][0][1][*][0][1][2][3][4][*][2][1][#]
[*][0][4][*][0][1][2][3][4][*][4][#]
