Facsimile FAX-2820
Note that the hooks supplied are not used in the installation.
Note: When ship's main is 110/115 VAC, the optional Transformer E-300 is required.

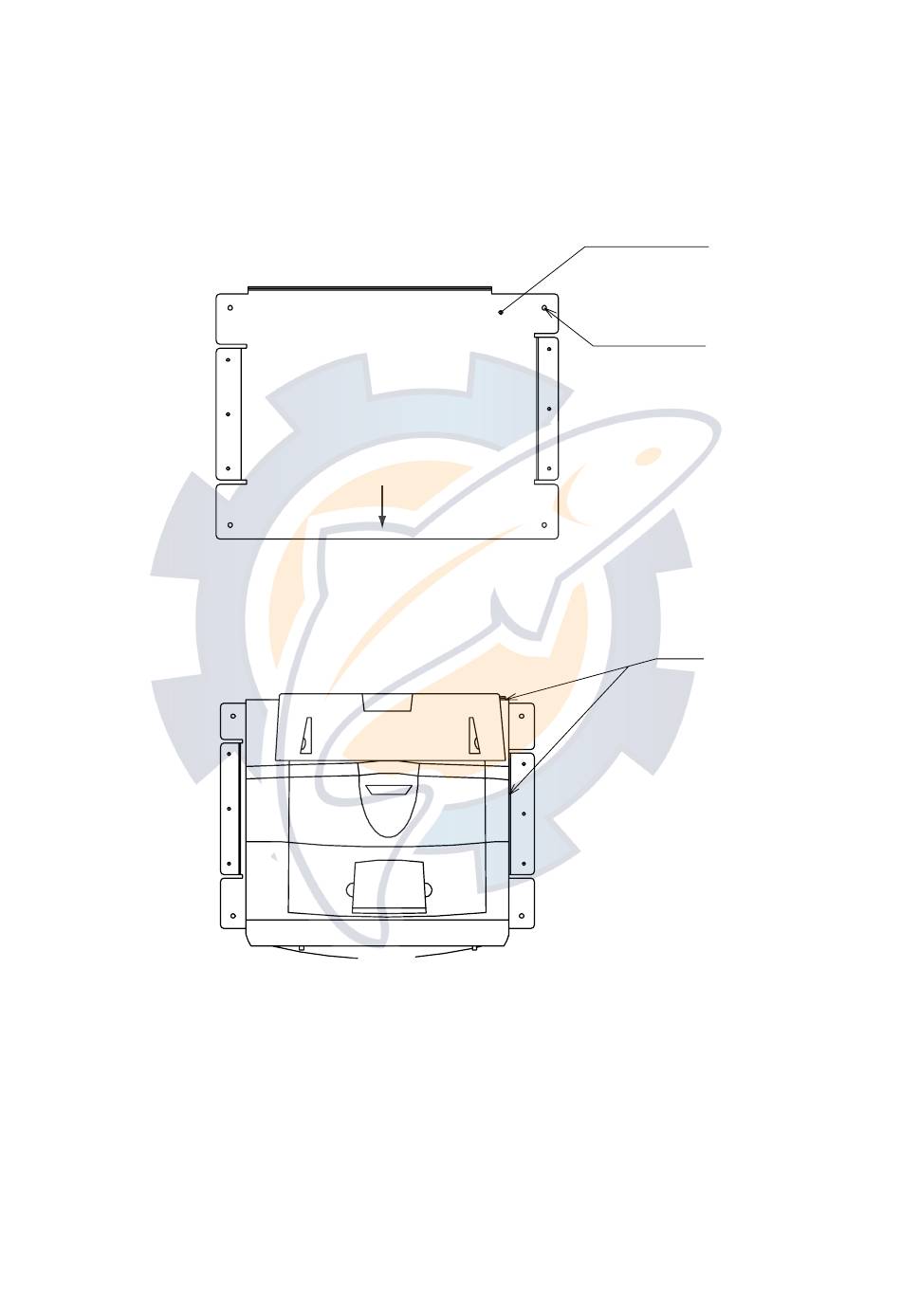

1. Fix the mounting plate to the mounting location with four 5x20 self-tapping screws.
Mounting plate
φ6 Fixing hole
Four places
FRONT
2. Lay the facsimile on the top of the mounting plate.
3. Align right side and rear with the projection on the mounting plate.
Align
31
