Ercol Bosco 1320 Manual

Super king bed

Bosco

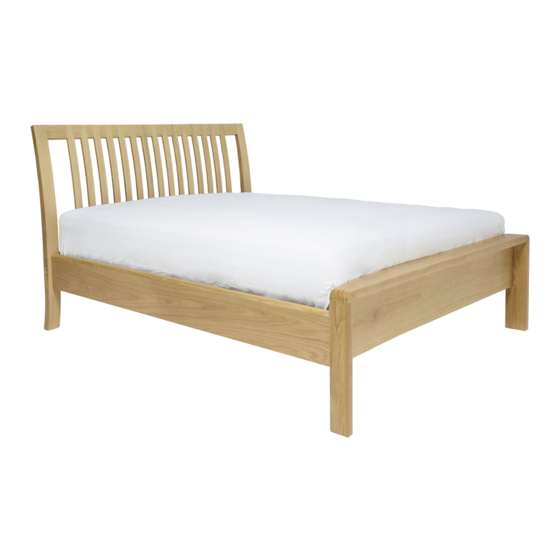

1320 super king bed

Thank you for purchasing this Bosco bed. Please read the instructions carefully before use to ensure safe

and satisfactory operation of this product.

This item is HEAVY

Pre-assembly preparation

Please ensure instructions are read in full before attempting to assemble this product

Please check the pack contents before attempting to assemble this product. A full checklist of components

is given in this leaflet. If any components are missing, please contact the retailer from whom you bought

this product.

This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE

WHEN LIFTING to avoid personal injury and (or) damage to the product.

This product takes approximately 30 MINUTES to assemble with 2 PEOPLE.

The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG

CHILDREN.

Necessary Tools

Ref: 00329/1320

Table of Contents

Do you have a question about the Bosco 1320 and is the answer not in the manual?

Page 1 Bosco 1320 super king bed Thank you for purchasing this Bosco bed. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. This item is HEAVY Necessary Tools Pre-assembly preparation Please ensure instructions are read in full before attempting to assemble this product Please check the pack contents before attempting to assemble this product.
Page 2 Fittings and parts checklist Headboard x 1 Half moon washer Footboard x 1 Spanner x 1 Side rails x 2 Central brackets x 6 Support rail x 3 Washers x 6 Bed slats x 34 Nuts and bolts x 6 each 25mm Screws x 36 Ends cap for bed slatsx 68 Threads x 8...
Page 3 Step by step assembly instructions 1. Push the threads G into the headboard and the footboard as shown below. Tighten the threads by hand ensuring that there is approximately half of the threads still showing. Using the M 36 x 25mm screws, attach the two brackets into the headboard and the footboard using the pre-drilled holes, tighten with a phillips screwdriver.
Page 4 3. Push a plastic cap onto each end of a slat and with the peg facing downwards push the slat into the pre drilled holes as shown below. Repeat for all the slats. Then assemble completed. PLEASE K EEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX www.ercol.com...
