ercol

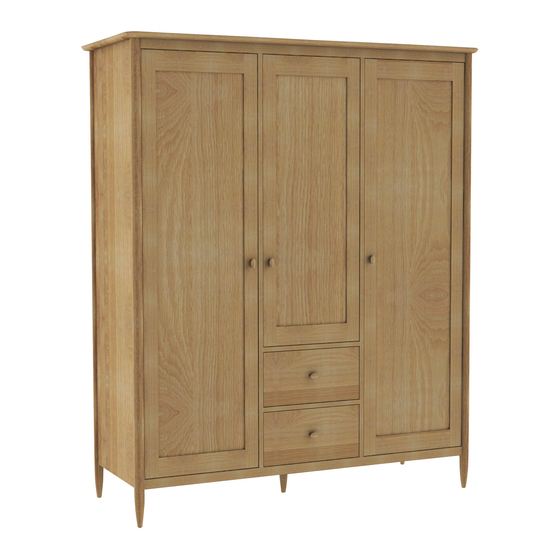

teramo 2687 3 door wardrobe
Thank you for purchasing this teramo 3 door wardrobe. Please read the instructions carefully before use to en-
sure safe and satisfactory operation of this product.
This item is HEAVY
Necessary Tools
Pre-assembly preparation
Please ensure instructions are read in full before attempting to assemble this product
Please check the pack contents before attempting to assemble this product. A full checklist of components
is given in this leaflet. If any components are missing, please contact the retailer from whom you bought
this product.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 40 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG
CHILDREN.
Advertisement
Table of Contents
Related Manuals for Ercol Teramo 2687
Summary of Contents for Ercol Teramo 2687
- Page 1 2687 3 door wardrobe Thank you for purchasing this teramo 3 door wardrobe. Please read the instructions carefully before use to en- sure safe and satisfactory operation of this product. This item is HEAVY Necessary Tools Pre-assembly preparation Please ensure instructions are read in full before attempting to assemble this product Please check the pack contents before attempting to assemble this product.
- Page 2 Fittings and parts checklist Top panel x 1 L/R hanging rails x 2 LH side panel x 1 Middle hanging rail x 1 Allen bolts x 22 RH side panel x 1 L & M Allen key x 1 Left & Right doors x 2 30mm Screws x 2 16mm round head Bottom panel x 1...
- Page 3 Step by step assembly instructions 1. First turn the support leg F onto the bottom of panel E as shown below. 2. Using 6 of the allen bolts attach the side panels B & C to the bottom panel E.
- Page 4 3. Take the two drawers out of the middle section, G. 4. Using 6 of the allen key bolts L attach the middle section to the base of the wardrobe (E) as shown.
- Page 5 5. Using 10 allen bolts, L, fix the top panel to the the wardrobe as shown. 6. Using 40 of the 16mm round head screws O, attach the two back panels H onto the back of the wardrobe.
- Page 6 7. Using the 2x 30mm screws, N, attach the top panel to the sides through the pre drilled holes inside the wardrobe. Attach the bottom of the middle section to the bottom of the wardrobe as shown below. Then attach the L/R doors onto their hinges. Attach the door panels onto the side panels as shown below.
- Page 7 Wall fixing - if in doubt seek professional advice Wood Cavity wall Brick or Masonry If fixing to wood Special toggle Use an appropriate make sure that it wall plugs are wall plug provided you isn’t chipboard as needed. Seek are sure your wall is screws can easily pull expert advice...
- Page 8 You can also snap them lengthways. 13. Check that the doors are aligned correctly. If necessary adjust the door hinges as shown below PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX www.ercol.com...
