Ercol Monza 4180 Assembly Instructions

Ercol Monza 4180 Assembly Instructions

Double/king bed

Advertisement

Monza Beds

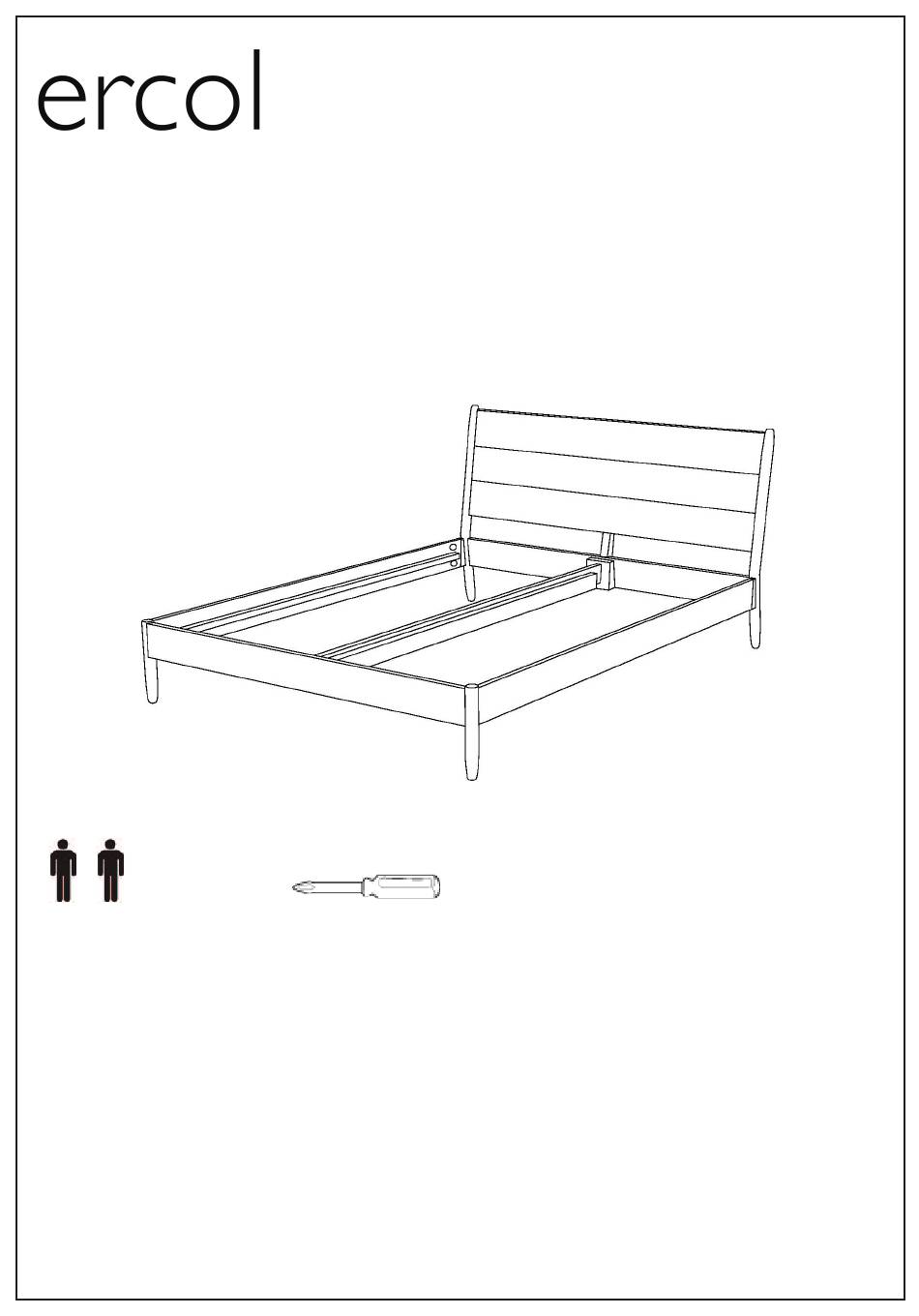

4180/4181 Double/King Bed
Thank you for purchasing this Monza bed. Please read the instructions carefully before use to ensure safe
and satisfactory operation of this product.
This item is HEAVY
Pre-assembly preparation
Please ensure instructions are read in full before attempting to assemble this product
Please check the pack contents before attempting to assemble this product. A full checklist of components
is given in this leaflet. If any components are missing, please contact the retailer from whom you bought
this product.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 30 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG
CHILDREN.
Necessary Tools
Ref: 00329/4180, 4181
