Thank you for purchasing this Ballatta drinks cabinet. Please ensure instructions are read in full before attempting to
assemble product.
WARNING:
IN ORDER TO PREVENT OVERTURNING, THIS PRODUCT PRODUCT MUST BE USED WITH THE WALL
ATTACHMENT DEVICE PROVIDED.
Installation should be carried out exactly according to the manufacturers instructions, otherwise a safety risk can
occur if incorrectly installed. Cabinets and shelving over 600mm high can be unstable and should be supported until
fixed to the wall.
This product is heavy, it should be assembled as near as possible to the point of use. Take care when lifting to avoid
personal injury and (or) damage to the product.
The fittings pack contains small items which should be KEPT AWAY FROM YOUNG CHILDREN.
Read this leaflet in full before commencing assembly.
Ref: 2507 / 2205

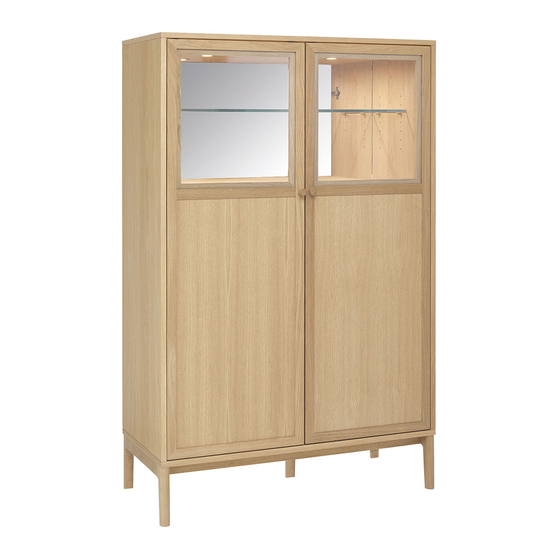

2205 BALLATTA DRINKS CABINET
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BALLATTA 2205 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ercol BALLATTA 2205

  • Page 1 2205 BALLATTA DRINKS CABINET Thank you for purchasing this Ballatta drinks cabinet. Please ensure instructions are read in full before attempting to assemble product. WARNING: IN ORDER TO PREVENT OVERTURNING, THIS PRODUCT PRODUCT MUST BE USED WITH THE WALL ATTACHMENT DEVICE PROVIDED. Installation should be carried out exactly according to the manufacturers instructions, otherwise a safety risk can occur if incorrectly installed.
  • Page 2 Please check the pack contents before attempting to assemble this product. A full checklist of components is given in this leaflet. If any components are missing, please contact the retailer from whom you bought this product. Pre-assembly preparation Items you will need This is a two person operation Fitting checklist 2 x screw (chrome - 3.5mm x 16mm)
  • Page 3 Replace the glass by sliding it downwards and fix the top-front frame back with the same three screws. Note: Ercol do not hold stock of replacement glass, however if needed the specifications of the glass shelf and the door glass are...
  • Page 4 Centre Leg Adjustment You can adjust the centre leg height by turning it clockwise or counter-clockwise. Screw the leg in fully before moving the cabinet. Shelf Retainer Placement Insert 4x shelf retainers (E) into a desired level by hand as shown below and place the glass shelf on top of them. Wedge Instructions If the drinks cabinet is not level on your floor use the wedge (F) provided, and snap it off so that it does not protrude out from the cabinet’s leg, you can also snap it lengthways if desired.
  • Page 5 Wall Fixing Instructions Parts, fittings and tools 1 Remove the inner top panel by removing two allen head bolts using an allen key (D). 2 Place your product in the final position. Loosen the screws on the metal brackets just enough so that the slotted bracket can be extended to meet the wall.
  • Page 6 A guide to wall mounting and fixings Warning Serious or fatal crushing injuries can occur from furniture tipping over. To prevent this furniture from tipping over it must be permanantly fixed to the wall. Wall fixing screws are not included, since different wall materials require different types of screws / fixings. Please ensure you use the correct screws / fixings for your type of walls and seek professional advice if you are not sure.
  • Page 7 No liability will be accepted for damage or injury caused by incorrectly installed furniture. PLEASE KEEP THESEINSTRUCTIONS FOR FUTURE REFERENCE Ref: 2507 / 2205 Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX ercol.com YNG TAL 14 / ERBDT2 D: 18.09.2018 / RN 001...
