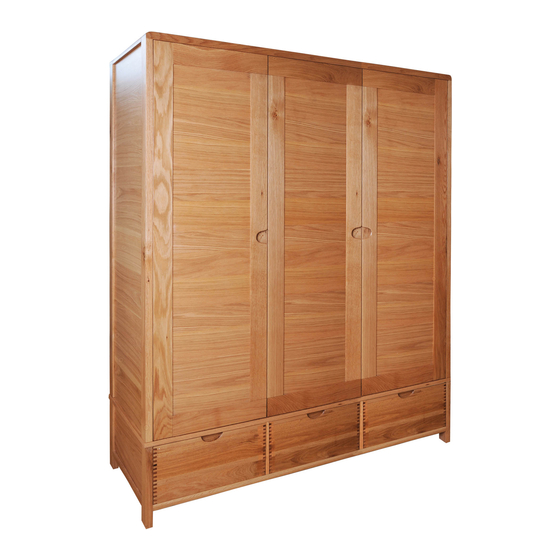

1366 3 door wardrobe
Thank you for purchasing this bosco wardrobe. Please read the instructions carefully before use to
ensure safe and satisfactory operation of this product.
This product is HEAVY, Take care when lifting to avoid personal inju ry and (or) damage to the product.
Please check the pack contents before attempting to assemble this product. A full checklist of
components is given in this leaflet . If any pieces are missing, please contact the retailer from whom you
bought this product. The fttings pack contains SMALL ITEMS which should be KEPT AWAY FROM
YOUNG CHILDREN.
This product takes approximately 30 MINUTES to assemble with 2 PEOPLE.
Necessary Tools
ercol
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ercol Bosco 1366
Summary of Contents for Ercol Bosco 1366

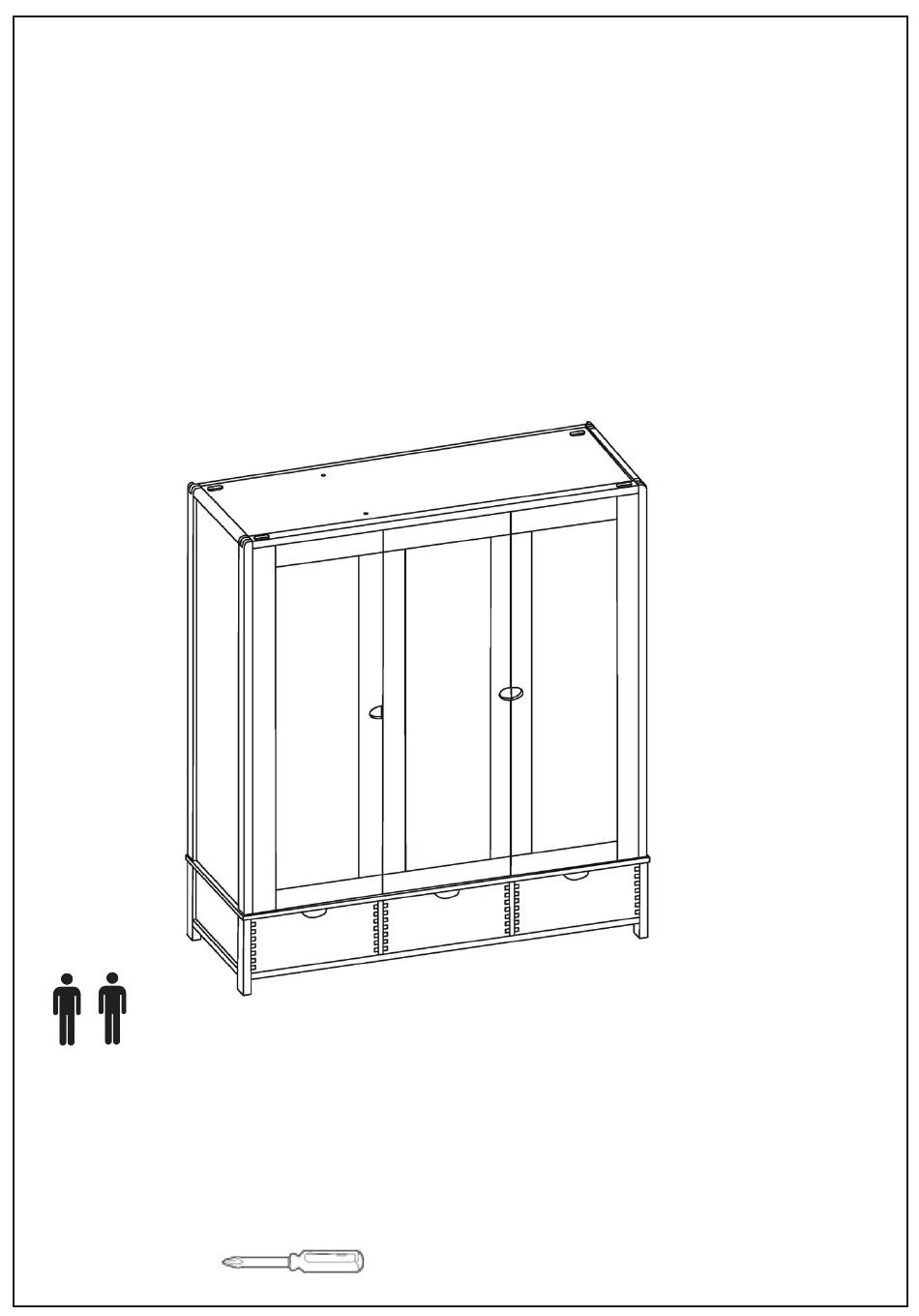

- Page 1 1366 3 door wardrobe Thank you for purchasing this bosco wardrobe. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. This product is HEAVY, Take care when lifting to avoid personal inju ry and (or) damage to the product.
- Page 2 Fittings and parts checklist Anti-tipping kit x 1 Base unit x 1 14mm screws x 8 LH side panel x 1 RH side panel x 1 25mm screws x 12 Centre panel x 1 18mm screws x 34 Back panels x 3 Wedge x 2 Wooden dowel x 9 Narrow hanging rail x 1...
- Page 3 Step by step instructions 1, Check that all the wooden dowels are present in the side panels (B & C) & centre panel (D). With the help of another person locate the side panels & centre panel into the base unit. Secure using (R)M6*30mm bolts.
- Page 4 3. With the help of another person move the wardrobe close to it’s final position. If your floor is uneven the other person may need to tilt the wardrobe slightly so that the doors remain square, then fix 3pcs back panels(E) onto side panels(B&C) and centre panel(D) using the 18mm screws(N) as shown below. 4.
- Page 5 5. Fix the door frame(I) onto the side panels(B&C) and centre panel(D) using the 25mm screws(M) 12pcs as shown below. 6. Push fit the eight shelf pins(Q) and locate the self (J) using 14mm screws(L) 8pcs as shown, Put the hanging rails(F&G) into their rail supports.
- Page 6 7. We recommend that you fix this wardrobe to the wall, using appropriate fixings for your type of wall, see below. Move the wardrobe into it’s final position against the wall. Align the L bracket to the pre drilled holes on the top of your wardrobe in the middle along the back rail and using the 2 x 15mm screws fix the bracket to the top of your wardrobe.
- Page 7 9. Check that the doors are aligned correctly. If necessary adjust the door hinges as shown below. 10. Finally, using the provided Anti-tipping kit(K) to fully tighten the screws to secure the wardrobe to your wall as shown below.
- Page 8 No liability will be accepted for damage or injury caused by incorrectly installed furniture. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX www.ercol.com...
