Summary of Contents for Ercol 174-784-014

  • Page 1 Assembly instructions Your guide to producing the instruction leaflet...

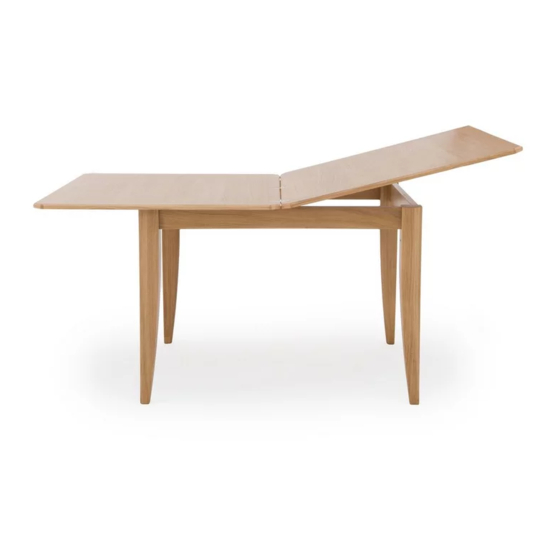

  • Page 2 CHESHAM FLIP TOP DINING TABLE 174-784-014 Assembly instructions Actual product size H75 x W89.8 x D174 cm Need Help? With: Assembly instructions Missing or damaged parts CALL: 0333 777 8999 IMPORTANT ─ RETAIN FOR FUTURE REFERENCE Produced in China for Next Retail Ltd.
  • Page 3 CHESHAM FLIP TOP DINING TABLE 174-784-014 Assembly instructions BEFORE YOU START Warnings Number of people required to assemble We suggest you retain these instructions for future reference. Two persons are required to assemble this item. Keep fittings out of children’s reach and keep children well away from the construction area.
  • Page 4 CHESHAM FLIP TOP DINING TABLE 174-784-014 Assembly instructions GETTING TO KNOW YOUR PRODUCT Fittings and parts checklist Table top x 1 Bolt x 8 Legs x 4 Locking washer x 8 Allen Key x 1 Flat washers x 8 Produced in China for Next Retail Ltd.
  • Page 5 CHESHAM FLIP TOP DINING TABLE 174-784-014 Assembly instructions Step by step instructions Two people maybe necessary to carefully turn the table top face down onto a smooth soft surface such as carpet. Put one leg to the table top and matching the holes, secure the bolts and washers (locking washer first) into the legs through the holes on the end rail of the table top.
  • Page 6 CHESHAM FLIP TOP DINING TABLE 174-784-014 Assembly instructions Underneath the table, there is a locking pin. Pull down to release Locking pin holes Slide the table top across the frame. Produced in China for Next Retail Ltd. 174-784-014...
  • Page 7 CHESHAM FLIP TOP DINING TABLE 174-784-014 Assembly instructions Grasp the top from both sides and completely extend the top out. WARNING: TO AVOID THE POSSIBILTY OF THIS TABLE TIPPING AT THIS POINT, DO NOT APPLY BODY WEIGHT. THIS TABLE IS NOT DESINGED TO BE USED IN THIS POSITION.
