M3 X 6 DIN7991 SCREW
REPLACEMENT I/O BRACKET

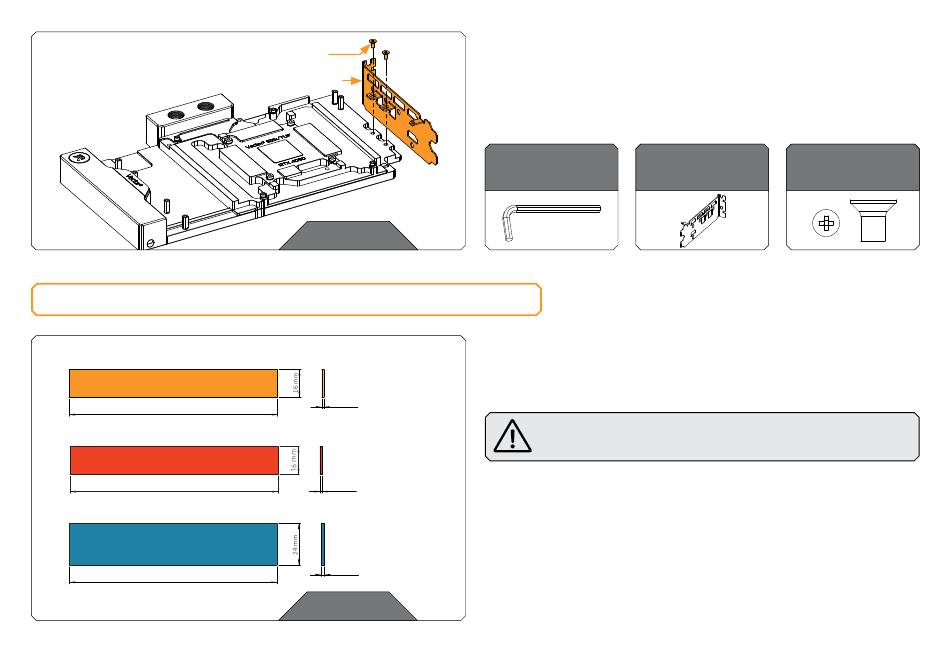

CUTTING AND PLACING THERMAL PADS

Thermal Pad F – 1.0 mm (120 x 16 mm)
120 mm
Thermal Pad F – 1.5 mm (120 x 16 mm)
120 mm
Thermal Pad G – 2.0 mm (120 x 24 mm)
120 mm
STEP 2
Position the replacement I/O Bracket on the water block. During
this process, make sure you have aligned the holes. Secure it with
the two (2) M3 x 6 DIN7991 Screws and Allen Key 2 mm.
For this step, you will need:
STEP 2
STEP 1
The GPU water block comes with thermal pads that have to be cut
into smaller pieces to cover all the VRM components, such as COILs,
MOSFETs, and drivers.
1 mm
Replacement thermal pads:
1.5 mm
Thermal Pad F 1.0 mm – (120 x 16 mm) EAN: 3830046996732
Thermal Pad F 1.5 mm – (120 x 16 mm) EAN: 3830046996749
Thermal Pad G 2.0 mm – (120 x 24 mm) EAN: 3830046996794
2 mm
STEP 1
- 11 -
Replacement I/O
Allen Key 2 mm
Bracket
Remove the protective foil from both sides of the thermal
pad before installation.
M3 x 6 DIN7991
Screw (2 pcs)
