STEP 2
M2.5 x 4 AX1 SCREW
Use seven (7) M2.5 x 4 AX1 Screws and PVC washers to tighten the
PCB on the water block. Tighten the screws evenly using the Phillips-
M2.5 PVC WASHER
head screwdriver. An additional one (1) M2.5 x 6 AX1 Screw must be
secured with an M2.5 Nut.
EK recommends you start tightening the screws around the GPU core
first, and then continuing outward to prevent damage to the GPU.
After attaching the water block, three (3) saved Factory provided I/O
Bracket screws can be reused.
For this step, you will need:
M2.5 x 4 M2.5 x 6 Factory provided
PVC Washer
M2.5 x 6 AX1 SCREW
AX1 Screw AX1 Screw I/O Bracket
(7 pcs)
(7 pcs) (1 pc) screw (3 pcs)
M2.5 NUT
FACTORY PROVIDED I/O
BRACKET SCREWS
M 2.5 Nut
Phillips Head
(1 pc)
Screwdriver

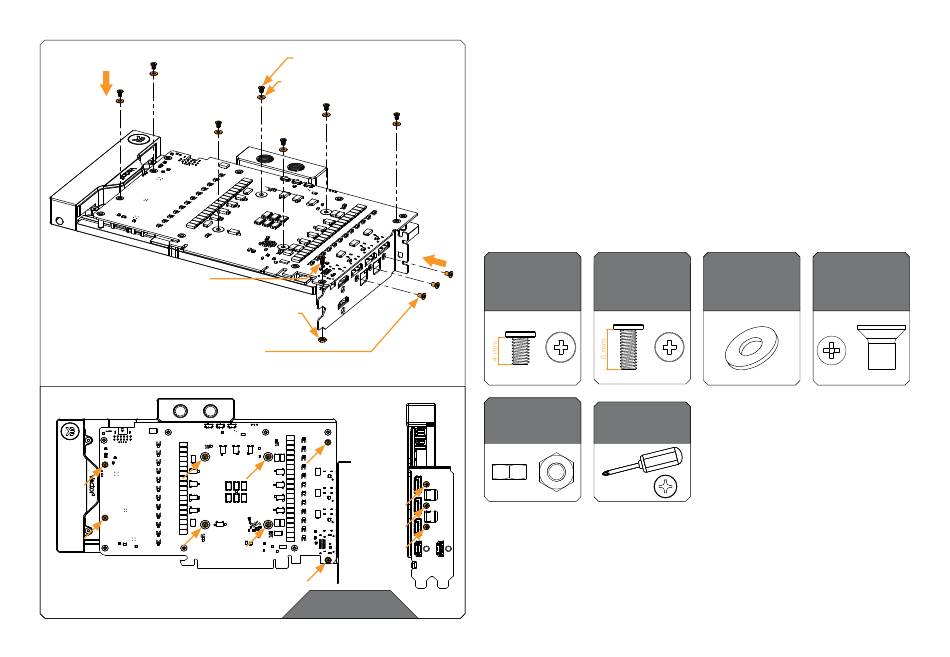

Screws must be present in the places marked on the picture.
STEP 2
