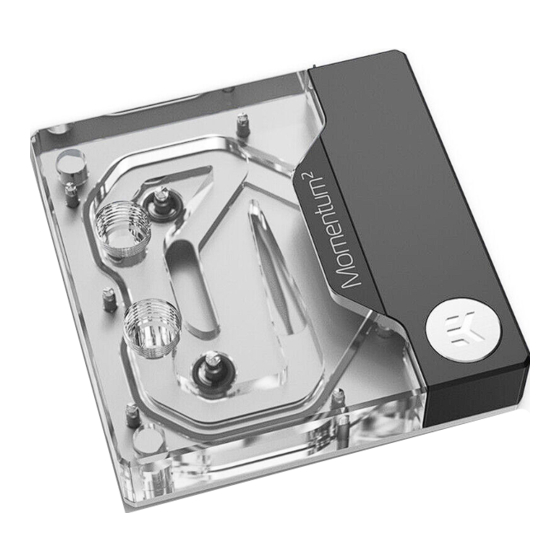

ekwb EK-Quantum Momentum2 ROG Strix X670E-I D-RGB User Manual

ekwb EK-Quantum Momentum2 ROG Strix X670E-I D-RGB User Manual

Monoblock
Hide thumbs Also See for EK-Quantum Momentum2 ROG Strix X670E-I D-RGB:

Advertisement

Quick Links

EK-Quantum
Momentum
ROG Strix X670E-I D-RGB
2
MONOBLOCK
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK-Quantum Momentum2 ROG Strix X670E-I D-RGB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ekwb EK-Quantum Momentum2 ROG Strix X670E-I D-RGB

  • Page 1 EK-Quantum Momentum ROG Strix X670E-I D-RGB MONOBLOCK USER GUIDE...
  • Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS PREPARING THE MOTHERBOARD CUTTING AND PLACING THERMAL PADS INSTALLING THE WATER BLOCK FITTINGS AND TUBING CONNECTING THE D-RGB LED STRIP TESTING THE LOOP WARRANTY SUPPORT AND SERVICE SOCIAL MEDIA - 3 -...
  • Page 4: Box Contents

    BOX CONTENTS Allen Key 2.5 mm (1 pc) Allen Key 2 mm (1 pc) EK-Quantum Momentum ROG Strix X670E-I D-RGB - Plexi Tx7 L-Shaped Wrench (1 pc) Thermal grease (1 pc) Thermal Pad F 1.0 mm (1 pc) Velocity Mounting Screw AM5 (Ni) (1 pc) (3830046996732) - 4 -...
  • Page 5: Water Block Dimensions

    WATER BLOCK DIMENSIONS 89 mm 13 mm 23 mm - 5 -...
  • Page 6: Technical Specifications And Water Block Parts

    TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS Technical Specification: Dimensions (L x H x W): 89 x 121.5 x 34 mm D-RGB cable length: 50 cm D-RGB LED count: 17 D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground Position Description Quantity 106257 Mid plate (Nickel) 105915...
  • Page 7: Preparing The Motherboard

    PREPARING THE MOTHERBOARD STEP 1 IIf already installed, please remove the motherboard from your UNC 6-32 SCREW computer and place it on an even surface. HOLD-DOWN STEP 2 CLAMPS Using a Philips head screwdriver remove the four UNC 6-32 screws securing the original plastic hold-down clamps around the socket as shown in the illustration.
  • Page 8: Cutting And Placing Thermal Pads

    CUTTING AND PLACING THERMAL PADS STEP 1 EK-Quantum Momentum ROG Strix X670E-I D-RGB B water block comes with a thermal pad that has to be cut into smaller pieces to Thermal Pad F – 1.0 mm (120 x 16 mm) cover the area.
  • Page 9: Installing The Water Block

    STEP 2 Applying thermal compound: Apply the enclosed thermal grease (thermal compound) on the CPU heat spreader – IHS – as shown in the image. The layer of the thermal compound must be thin and even in thickness over the entire surface of the IHS. The excessive or uneven application of thermal grease may lead to poor performance! For this step, you will need:...
  • Page 10 STEP 2 WATER BLOCK Position the CPU Water Block onto the Motherboard. Make sure to align the holes (as shown in the picture). Before placing the water block, it is mandatory to remove the protective foil from the backside. MOUNTING SCREW (4x) Make sure to double-check the layer of the Thermal Grease before placing the water block onto the motherboard.
  • Page 11: Fittings And Tubing

    FITTINGS AND TUBING STEP 1 Screw in two (2) G1/4 threaded male fittings. Attach the liquid cooling tubes and connect the water block to the cooling loop. Tighten the fittings in a clockwise direction until the gasket underneath is compressed. EK recommends using EK fittings with all EK water blocks.
  • Page 12: Connecting The D-Rgb Led Strip

    CONNECTING THE D-RGB LED STRIP STEP 1 Plug the 3-pin connector from the water block’s D-RGB LED light to the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, empty, Ground. Please ensure that the arrow indicated on the connector is plugged into the +5V line as indicated on your motherboard.
  • Page 13: Warranty

    Removing the label will void the leak-free guarantee, but not the guarantee on the product itself. Any other RMA issues can be reported to EK Customer Support at www.ekwb.com/support for further analysis. - 13 -...
  • Page 14: Support And Service

    SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
