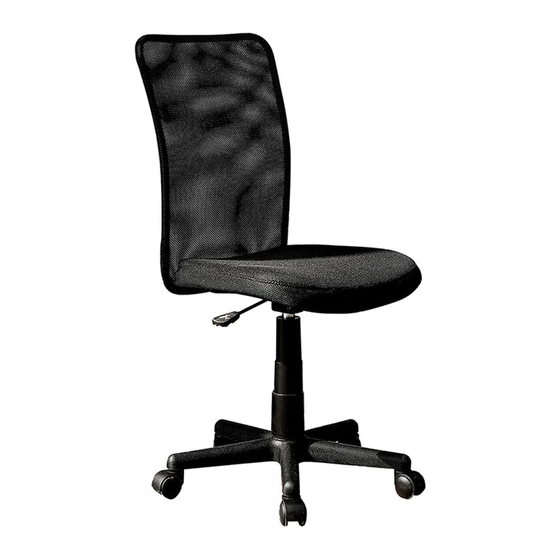

Techni Mobili RTA-9300B Assembly Instructions

PARTS LIST

ATTENTION: Before you begin to assemble the
product, please make sure that all the parts are
included in the package and in good condition.
A Backrest B Seat
x1 x1
Mechanism
D
C
5-Star base
x1
x1
E
Hydraulic F Casters
Gas Lift
x1
x5
G Covers for H M6x16mm
Gas Lift (Set)
x1 x4
(Backrest)
J
I M6x14mm
Washers
x4
x4
(Mechanism) (Backrest to Seat)
K Allen Wrench
M5
x1
ASSEMBLY INSTRUCTIONS
CHAIR STYLE RTA-9300B
• Follow the instructions step by step.
ATTENTION:
• To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
• Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.
• Using the wrong size of screws on a part could result in damage to the screw or the part
1
Insert the casters (F) into the legs of the base (C) using pressure,
then place the gas lift (E) in the middle of the base, and cover it
with (G) as shown.
E
G
3
Using screws (I), assemble the mechanism (D) to the seat (B)
with its handle facing to the RIGHT as shown.
D
B
(Seat is shown upside-down with its front end towards you)
2
Assemble the backrest (A) to the seat (B) using screws (H) and
washers (J) as shown.
C
F
(Seat is shown upside-down with its front end towards you)
4
Place the seat over the base, making sure the tip of the gas lift
enters into the hole of the mechanism.
I
Before seating and using the chair for the first time, make sure
that all screws are properly tightened.
H
J
A
B
