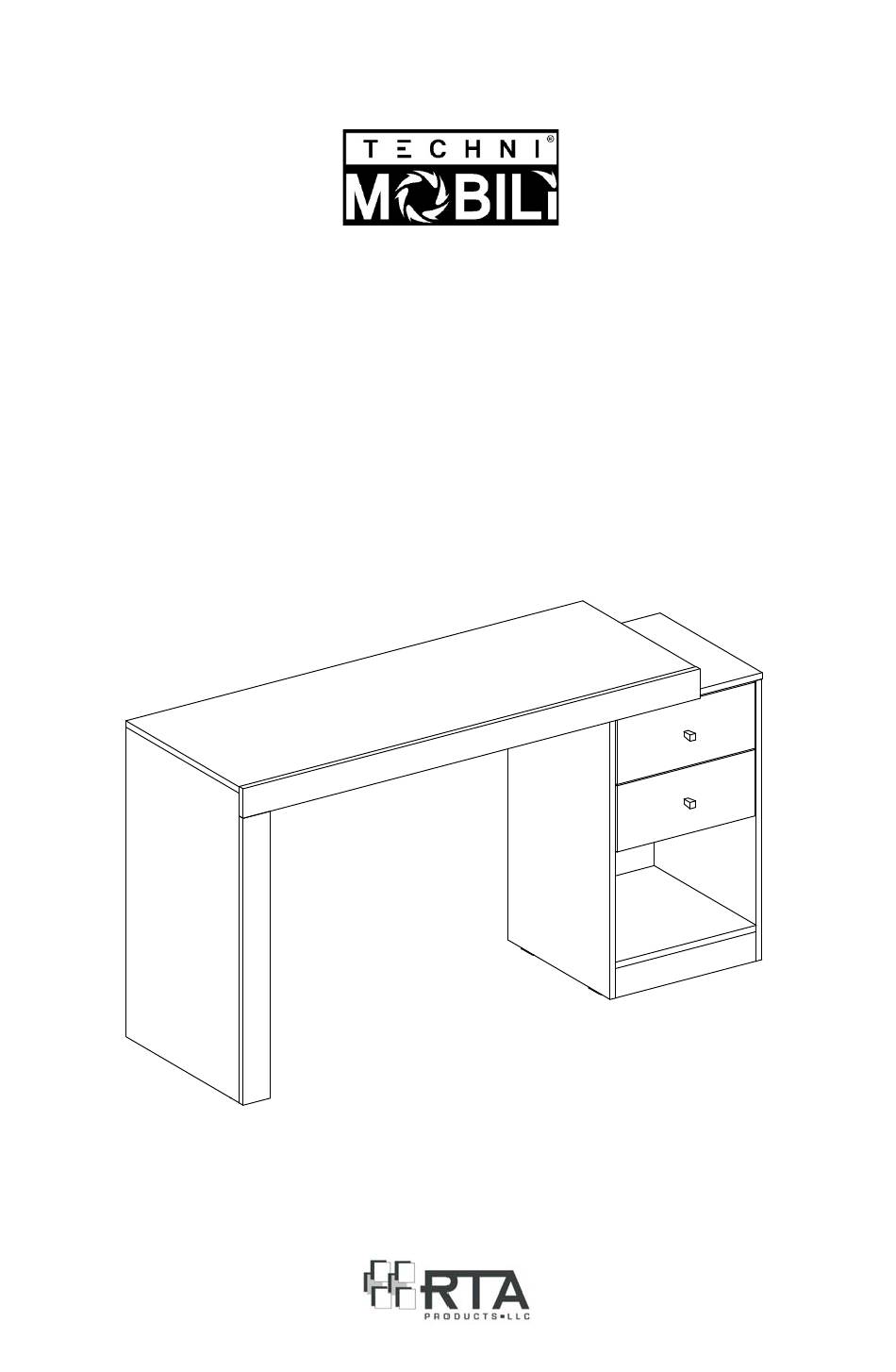

- Page 1 MODEL RTA-988D ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.CAR-6643-0622...
- Page 2 RTA-988D • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require of two people for the assembly.
-
Page 3: Main Parts List
RTA-988D MAIN PARTS LIST Tabletop Left side panel Top front panel Left front panel Right-top side panel Top back panel Right side panel Middle side panel... - Page 4 RTA-988D MAIN PARTS LIST Cabinet top panel Cabinet bottom panel Cabinet skirt panel Drawer front panel Cabinet back panel Drawer back panel Drawer bottom Drawer side panel...
- Page 5 RTA-988D MAIN PARTS LAYOUT (FOR REFERENCE): (2x)
- Page 6 RTA-988D LIST OF INCLUDED HARDWARE PART ITEM PART ITEM M3.5x14 M5x30 Bolt 15x11 M3.5x25 Cam lock Plastic 10x10 dowel Nail Large metal Hole cover bracket Small metal Plastic bracket handle “Flat”: 2 pcs, go inside Flat metal the cabinet bracket...
- Page 7 RTA-988D ☛ This unit uses cam bolts and locks. The following explains how to use them. This is not an assembly step; it is a guide for when you are actually doing the assembly using this kind of hardware. Cam Lock Cam Bolt 1.
- Page 8 RTA-988D ❼ BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...
- Page 9 RTA-988D ASSEMBLY STEPS IT IS RECOMMENDED TO PLACE THE PIECES OVER BLANKETS TO PROTECT THEIR FINISH DURING ASSEMBLY. Install the wooden dowels G into the indicated holes on panels 2, 6, 7, 8, STEP 1 10, 11 and 13. Hardware:...
- Page 10 RTA-988D Install the bolts K into the indicated holes on panels 1, 2, 7, 8 and 9. STEP 2 Hardware: M5x30 Bolt Tools required (Top) (But not included) (Back) (Front)
- Page 11 P.10 RTA-988D P.10 Grab the two sets of sliders P (total 8 pcs) and separate them into 2 STEP 3 groups according to their shape: - The “Flat” ones will be used on the next step. - The “L Shaped” will be used until step 12, set them aside.
- Page 12 P.11 RTA-988D P.11 • Join the cabinet’s bottom panel 10 and back panel 13 to the right side STEP 5 panel 7, making sure the big holes for the cam locks go facing Hardware: towards the inside and the bottom respectively.
- Page 13 P.12 RTA-988D P.12 • Join the cabinet’s top panel 9 to the side panels 7 and 8. STEP 7 • Insert the cam locks L into 7 and 8, and turn them to lock the pieces Hardware: together as shown and as explained in page 6.
- Page 14 P.13 RTA-988D P.13 • For each of the two drawers, install the plastic dowels C to the side STEP 9 panels 16. Hardware: • For each of the two drawers, join the side panels 16 to the front panel 12 as shown.
- Page 15 P.14 RTA-988D P.14 • For each of the two drawers, place the bottom panel 15 over the STEP 11 bottom of the drawer frame and slide it into the groove of the front Hardware: panel 12. • Secure the bottom panel 15 with nails M at the indicated positions.
- Page 16 P.15 RTA-988D P.15 For each of the two drawers, attach the handle O to the front panel 12 STEP 13 with screws B as shown. Hardware: M3.5x25 Handle Tools required (But not included) STEP 14 • Insert the drawers into the cabinet, first the bottom one, then the top one.
- Page 17 P.16 RTA-988D P.16 • Assemble the top back panel 6 to the left side panel 2 with cam locks STEP 16 L as shown and as explained in page 6, then cover the cam locks Hardware: with N. • Attach the bottom plastic glides J to the bottom of panels 2 with M3.5x14...
- Page 18 P.17 RTA-988D P.17 • Place the plastic brackets I well distributed along the grooves of STEP 18 panels 3 and 4 with their openings facing towards the bigger space on Hardware: the panels. • Secure the brackets with screws A.
- Page 19 P.18 RTA-988D P.18 • Join the front panels 3 and 4 with the panels 1 and 2, and secure the STEP 20 pieces with screws A through the plastic brackets I as shown. Requires of 2 • Place and secure the side panel 5 to panels 3 and 6 with the small persons brackets E and screws A as shown.
- Page 20 P.19 RTA-988D P.19 ALL DONE! Give yourself a nice pat on the back, you did a great job! Enjoy your new unit. CARE, MAINTENANCE AND SAFETY WARNINGS: WEIGHT LIMITS = 13 Lbs (6 Kg = 22 Lbs (10 Kg = 44 Lbs (20 Kg •...
- Page 21 P.20 RTA-988D P.20 TECHNI MOBILI DESK WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 22 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
