MODEL RTA-913D

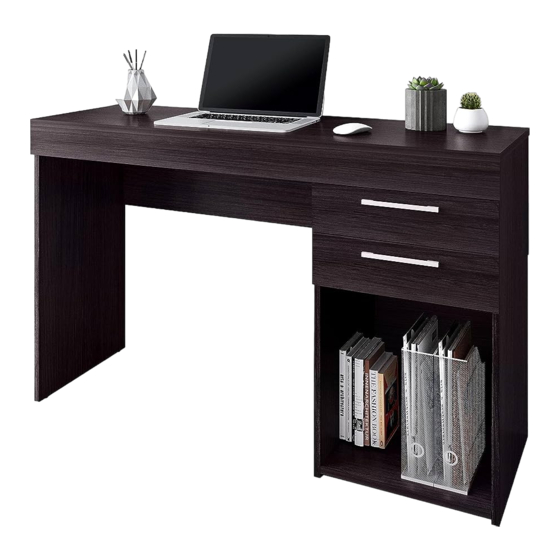

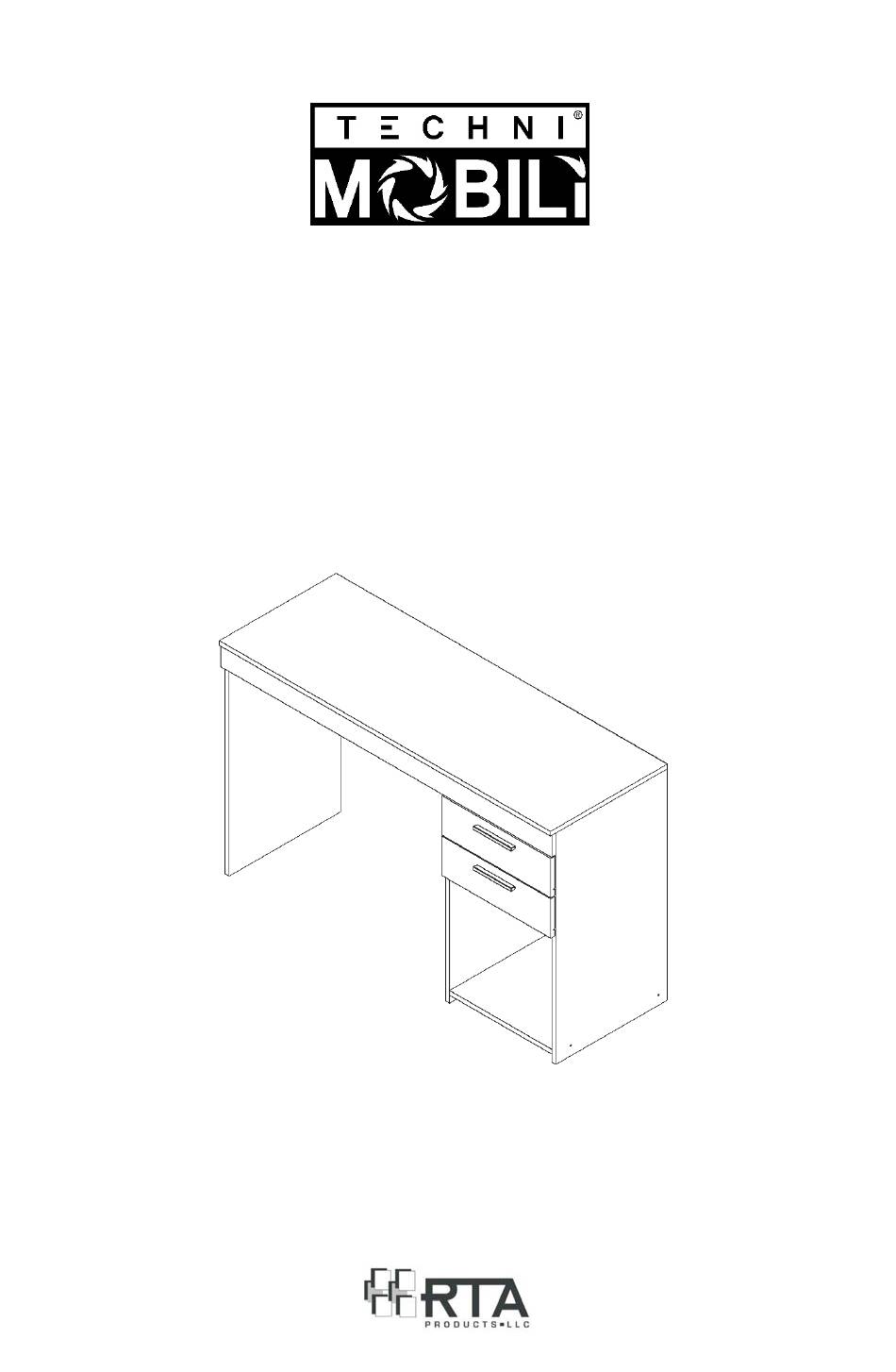

ASSEMBLY INSTRUCTIONS
Thank you for purchasing our product.
REV.022021-0

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTA-913D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Techni Mobili RTA-913D

Summary of Contents for Techni Mobili RTA-913D

  • Page 1 MODEL RTA-913D ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.022021-0...
  • Page 2 RTA-913D • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.

  • Page 3: Main Parts List

    RTA-913D MAIN PARTS LIST Main panel Left panel Back-Left panel Middle panel Lower panel Right panel Top front panel Drawer front panel Drawer right panel Drawer left panel Drawer back panel Drawer bottom Back-Right panel panel...
  • Page 4 RTA-913D LIST OF HARDWARE, SCREWS AND FITTINGS PART ITEM PART ITEM M6x30 15mm plastic Wooden dowels adhesive covers M5x31 M4x23 Bolts nails M12x9 12x12x6mm Cam locks Nail-in glide ST3.5x40 stud (Flanged head) 128mm ST3.5x40 Handle (Flat head) Touch-Up ST3.5x25 15x15x40mm...
  • Page 5 RTA-913D ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. This unit uses cam bolts and locks. The following explains how to use them.
  • Page 6 RTA-913D BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...

  • Page 7: Assembly Steps

    RTA-913D ASSEMBLY STEPS STEP 1 Place the main panel 1 upside-down over a blanket to protect its finish, and attach the dowels A into the innermost holes, and the bolts B into Hardware/Tools: the outermost holes as shown. Then attach the dowels A into the center hole on the profile of panels 9 and 10.
  • Page 8 RTA-913D STEP 3 Separate all the sliders pieces O according to their shape (no assembly is done here): Hardware/Tools: -The “Flat” ones will be used in the next step. -The “L” shaped go on the drawer and will be used until step 15.
  • Page 9 RTA-913D STEP 5 Insert and align the cam locks C into panel 4 and assemble it to the main panel 1 as shown and as explained in page 4. Then cover the cam locks Hardware/Tools: with the stickers I. Finally, secure the panel 4 to panel 3 with screws D as shown.
  • Page 10 RTA-913D STEP 7 Insert and align the cam locks C into panel 6 and assemble it to the main panel 1 as shown and as explained in page 4. Then cover the cam locks Hardware/Tools: with the stickers I. Finally, secure the panel 6 to panel 5 with screws D as shown.
  • Page 11 P.10 RTA-913D P.10 STEP 9 Place panel 7 over the unit making sure it is flushed with the main panel 1 and that it aligns on both ends, and secure it to panel 1 with screws G Hardware/Tools: through the brackets N. Then attach the glide studs K on the bottom of panels 2, 4 and 6 as shown.
  • Page 12 P.11 RTA-913D P.11 STEP 12 For each drawer, attach the bolts B to the indicated holes on panel 8. Then insert and align the cam locks C into panels 9 and 10 and assemble them to Hardware/Tools: panel 8 as shown and as explained in page 4. Finally, cover the cam locks with the stickers I.
  • Page 13 P.12 RTA-913D P.12 STEP 15 For each drawer, assemble the L-Shaped sliders O to the bottom of the drawer with screws H. Hardware/Tools: IMPORTANT: Please pay attention to the orientation of the sliders as indicated. ST3x12 “L” shape (NOT INCLUDED)
  • Page 14 P.13 RTA-913D P.13 ALL DONE! Give yourself a nice pat on the back. You did a great job!
  • Page 15 P.14 RTA-913D P.14 AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING CARE AND MAINTENANCE WARNINGS: WEIGHT LIMITS = 44 Lbs. (20 Kg) = 6.60 Lbs. (3 Kg) = 15.5 Lbs. (7 Kg) • Do not exceed the indicated weight limits.
  • Page 16 P.15 RTA-913D P.15 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY TV Stand/Entertainment Center: 2 YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
