Specifications - Icom ID-4100A Service Manual

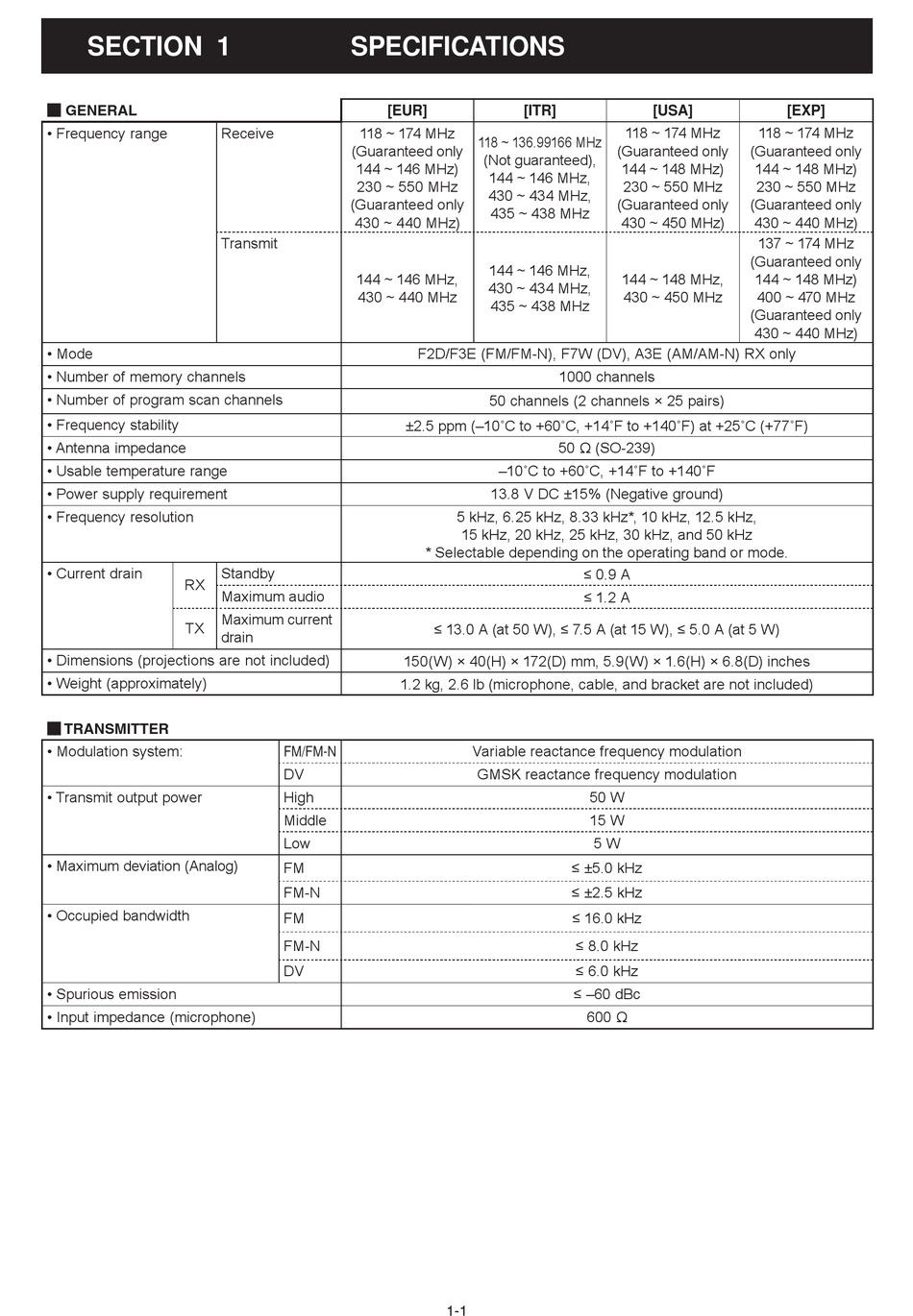

SECTION 1
M GENERAL
• Frequency range
• Mode
• Number of memory channels
• Number of program scan channels
• Frequency stability
• Antenna impedance
• Usable temperature range
• Power supply requirement
• Frequency resolution
• Current drain
RX
TX
• Dimensions (projections are not included)
• Weight (approximately)
M TRANSMITTER
• Modulation system:
• Transmit output power
• Maximum deviation (Analog)
• Occupied bandwidth
• Spurious emission
• Input impedance (microphone)

SPECIFICATIONS

[EUR]
Receive 118 ~ 174 MHz
(Guaranteed only
144 ~ 146 MHz)
230 ~ 550 MHz
(Guaranteed only
430 ~ 440 MHz)
Transmit
144 ~ 146 MHz,
430 ~ 440 MHz
Standby
Maximum audio
Maximum current
drain
FM/FM-N
DV
High
Middle
Low
FM
FM-N
FM
FM-N
DV
[ITR]
118 ~ 136.99166 MHz
(Not guaranteed),
144 ~ 146 MHz,
430 ~ 434 MHz,
435 ~ 438 MHz
144 ~ 146 MHz,
430 ~ 434 MHz,
435 ~ 438 MHz
F2D/F3E (FM/FM-N), F7W (DV), A3E (AM/AM-N) RX only
1000 channels
50 channels (2 channels × 25 pairs)
±2.5 ppm (–10˚C to +60˚C, +14˚F to +140˚F) at +25˚C (+77˚F)
50 Ω (SO-239)
–10˚C to +60˚C, +14˚F to +140˚F
13.8 V DC ±15% (Negative ground)
5 kHz, 6.25 kHz, 8.33 kHz*, 10 kHz, 12.5 kHz,
15 kHz, 20 kHz, 25 kHz, 30 kHz, and 50 kHz
* Selectable depending on the operating band or mode.
≤ 13.0 A (at 50 W), ≤ 7.5 A (at 15 W), ≤ 5.0 A (at 5 W)
150(W) × 40(H) × 172(D) mm, 5.9(W) × 1.6(H) × 6.8(D) inches
1.2 kg, 2.6 lb (microphone, cable, and bracket are not included)
Variable reactance frequency modulation
GMSK reactance frequency modulation
≤ ±5.0 kHz
≤ ±2.5 kHz
≤ 16.0 kHz
1-1
[USA]
118 ~ 174 MHz
(Guaranteed only
144 ~ 148 MHz)
230 ~ 550 MHz
(Guaranteed only
430 ~ 450 MHz)
144 ~ 148 MHz,
430 ~ 450 MHz
≤ 0.9 A
≤ 1.2 A
50 W
15 W
5 W
≤ 8.0 kHz
≤ 6.0 kHz
≤ –60 dBc
600 Ω
[EXP]
118 ~ 174 MHz
(Guaranteed only
144 ~ 148 MHz)
230 ~ 550 MHz
(Guaranteed only
430 ~ 440 MHz)
137 ~ 174 MHz
(Guaranteed only
144 ~ 148 MHz)
400 ~ 470 MHz
(Guaranteed only
430 ~ 440 MHz)
