Icom ID-4100A Service Manual page 30

[CHASSIS PARTS]
REF PART
NO. NO.
W1 8600037590 SPCABLE1 70MM
J1 6510004882 MR-DSE-01-2
SP1 2510001160 057P0802
MF1 2710000820 EFB0412VHD-6P38
MP1 8010024000 3866 CHASSIS M1K
MP2 8210025491 3167 CHASSIS PANEL-1
MP3 8930078580 3167 RELEASE BUTTON
MP4 8930096400 3866 PLATE
MP5 8510019462 3167 L-COVER ASSEMBLY-2
(including MP10)
MP6 8510019452 3167 U-COVER ASSEMBLY-2
(including MP11)
MP7 8930078590 3167 SP RUBBER (TOP)
MP8 8110009020 2969 FAN COVER
MP9 8930048550 2177 CLIP
MP10 8930072261 2696 NET-1
MP11 8930092710 SP NET (P)
MP12 8930071590 THERMAL SHEET (BI)TC-300HS-1.4 (9.5X)
MP13 8810008661 PHBT M3 X 8 NI-ZC3
MP14 8810008661 PHBT M3 X 8 NI-ZC3
MP15 8810009611 FLAT M2.6X 6 ZK3
MP16 8810010141 SCREW PH M3 X30 ZK3
MP19 8930079150 COIL SPRING (AL)
MP20 8930055551 THERMAL SHEET (W)-1 TC-300HS-1.4
MP21 8930029050 THERMAL SHEET AL
MP22 8810008661 PHBT M3 X 8 NI-ZC3
MP23 8930083660 SPONGE (LK)
MP24 8930097530 SHIELD SPONGE (EL)
8930097530 SHIELD SPONGE (EL)
MP26 8930086280 SPONGE (MA)
*: Refer to "BOARD LAYOUTS" for the location.
Screw abbreviations
DESCRIPTION
[#12]
[#13]
A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless

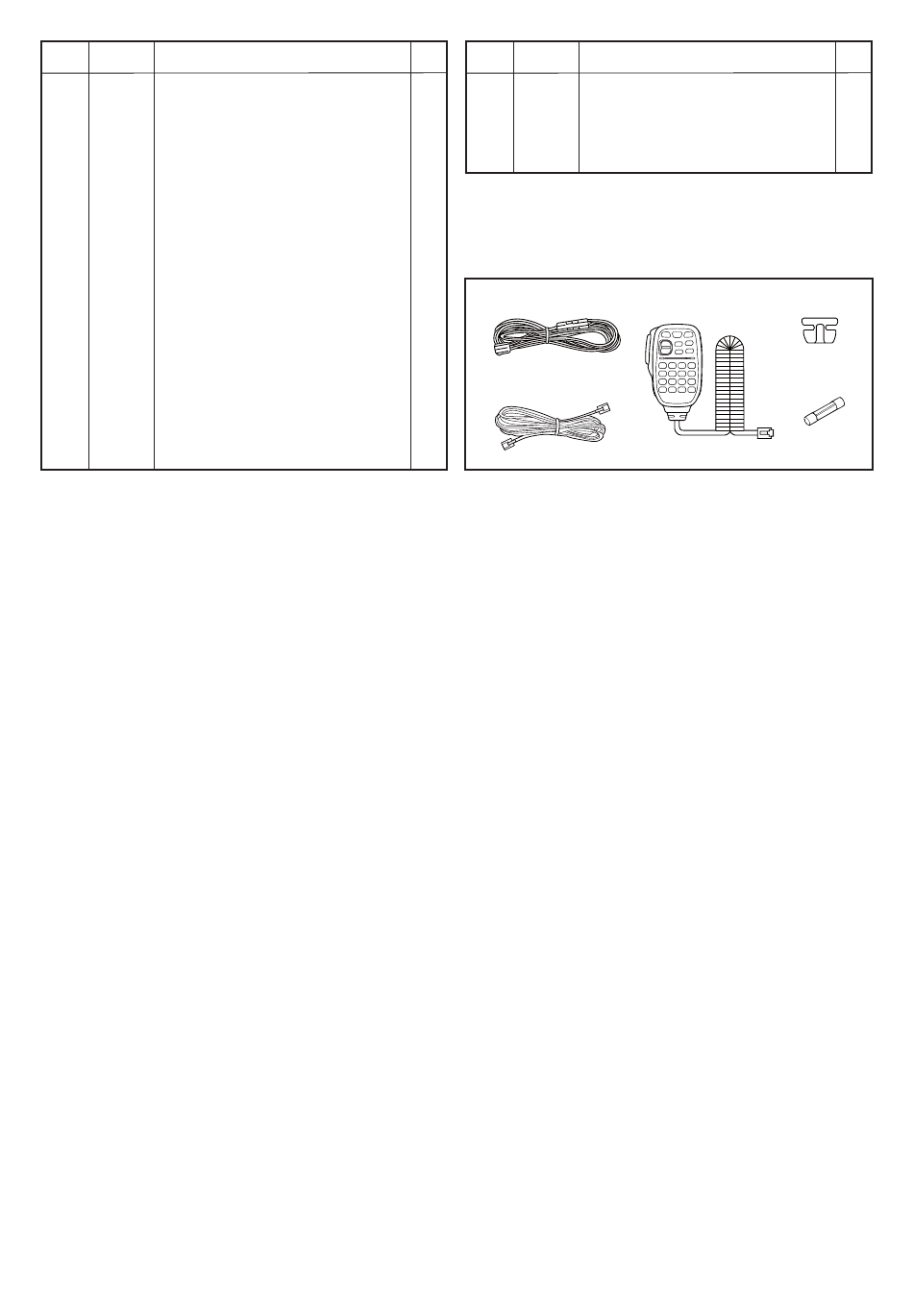

[ACCESSORIES]
REF PART
QTY.
NO. NO.
1 F1 5210000121 FGB 15A PBF (FGB0 125V)
1 MC1 (Option) HM-207S
1 W1 (Option) OPC-345B
W2 8900008610 OPC-837
1
MP1 8930007300 MIC HANGER
1
1
1
1
1
1
1
1
1
1
W1
1
1
13
2
16
4
2
1
W2
1
4
1
2
2
1
7-2
DESCRIPTION QTY.
MP1
F1
1
1
1
1
1
