BARCO PROJECTION SYSTEMS LD(0.8:1) R9840420 INSTALLATION MANUAL LENS LD(0.8:1) FOR ELM SERIES Date : Rev : Art. No. : 05092000 R5976127...
Page 2

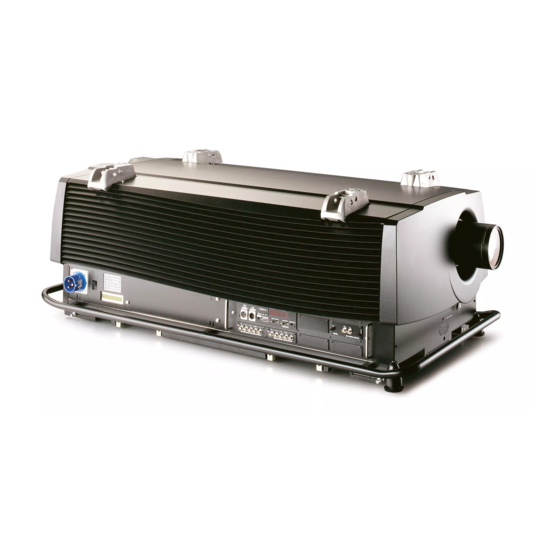

LD(0.8:1) Lens R9840420 What has to be This new lens has to be installed on an ELM series projector done Necessary Tools no tool necessary Installing the The lens is delivered with an adapter ring mounted. To install the lens, follow the next Lens procedure or look into the owners manual :...
Page 3
LD(0.8:1) Lens R9840420 (Continued) Lens Cleaning To minimize the possibility of damaging the optical coating or scratching exposed lens Procedure surface, we have developed recommendations for cleaning the lens. FIRST, we recommend you try to remove any material from the lens by blowing it off with clean, dry deionized air.
