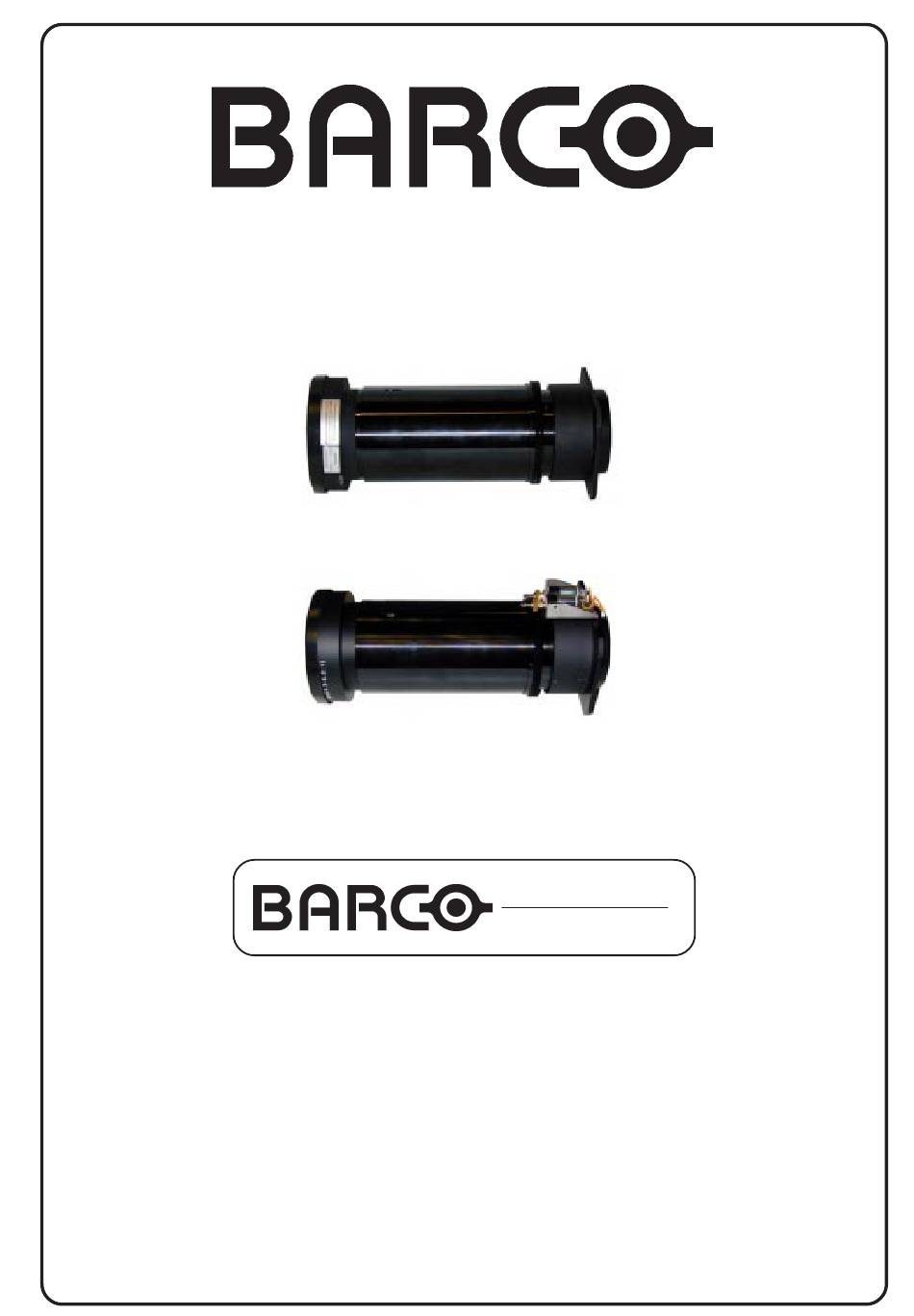

- Page 1 BARCO PROJECTION SYSTEMS Lens with motorization mounted on the lens support Lens with motorization mounted on the lens holder QFD(4.5-6:1) R9840100 INSTALLATION MANUAL LENS QFD(4.5-6:1) FOR 6000 SERIES Date: 06.12.2000 Rev : 2 Art. No.: R5976095...
- Page 2 Loosen the wing nuts (A) on the motorization unit and put it 1&2 uprightly (secure the vertical position with one wing nut). Illustration Image 1 Image 2 To be continued on next page. BARCO ——————————————————— 1 ————————————— Projection Systems...
- Page 3 Loosen the wing nut (C) of the motorization unit and push the unit against the lens ensuring a correct gear transmis- sion. Secure the posiotion of the motorization unit by tightning both wing nuts. Illustrations Image 1 Image 2 BARCO ——————————————————— 2 ————————————— Projection Systems...
- Page 4 QFD(4.5-6:1) Lens (Motorization included) R9840100 What has to be Installation of the lens on the lens support of the 6000 series projector. For older done projectors with motorization onto the lens support, the motorization unit has to be removed. Necessary Tools...
- Page 5 QFD(4.5-6:1) Lens (Motorization included) R9840100 Warning ! Risk of personal injury. Instructions for lens installation must be followed thoroughly. Installing the To install the lens, follow the next procedure or look into the owner’s manual : Lens Step Action Image Flip the top of the lens locks (A) backwards over the lock pin (B).
- Page 6 Do not use fabric softener when washing the cleaning cloth or softener sheets when drying the cloth. Do not use liquid cleaners on the cloth as doing so will contaminate the cloth. Order number for a new Toraysee cloth : R379058. Toraysee Cloth Order Number BARCO ——————————————————— 5 ————————————— Projection Systems...
