Barco R9001870 Owner's Manual

Barco R9001870 Owner's Manual

Cine versum system
Hide thumbs Also See for R9001870:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
B
P
ARCO
ROJECTION
C
VERSUM S
INE
YSTEM
R9001870
R9005010
R9841020
O
'
WNER
S MANUAL
17012003
R5976490/01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R9001870 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco R9001870

Summary of Contents for Barco R9001870

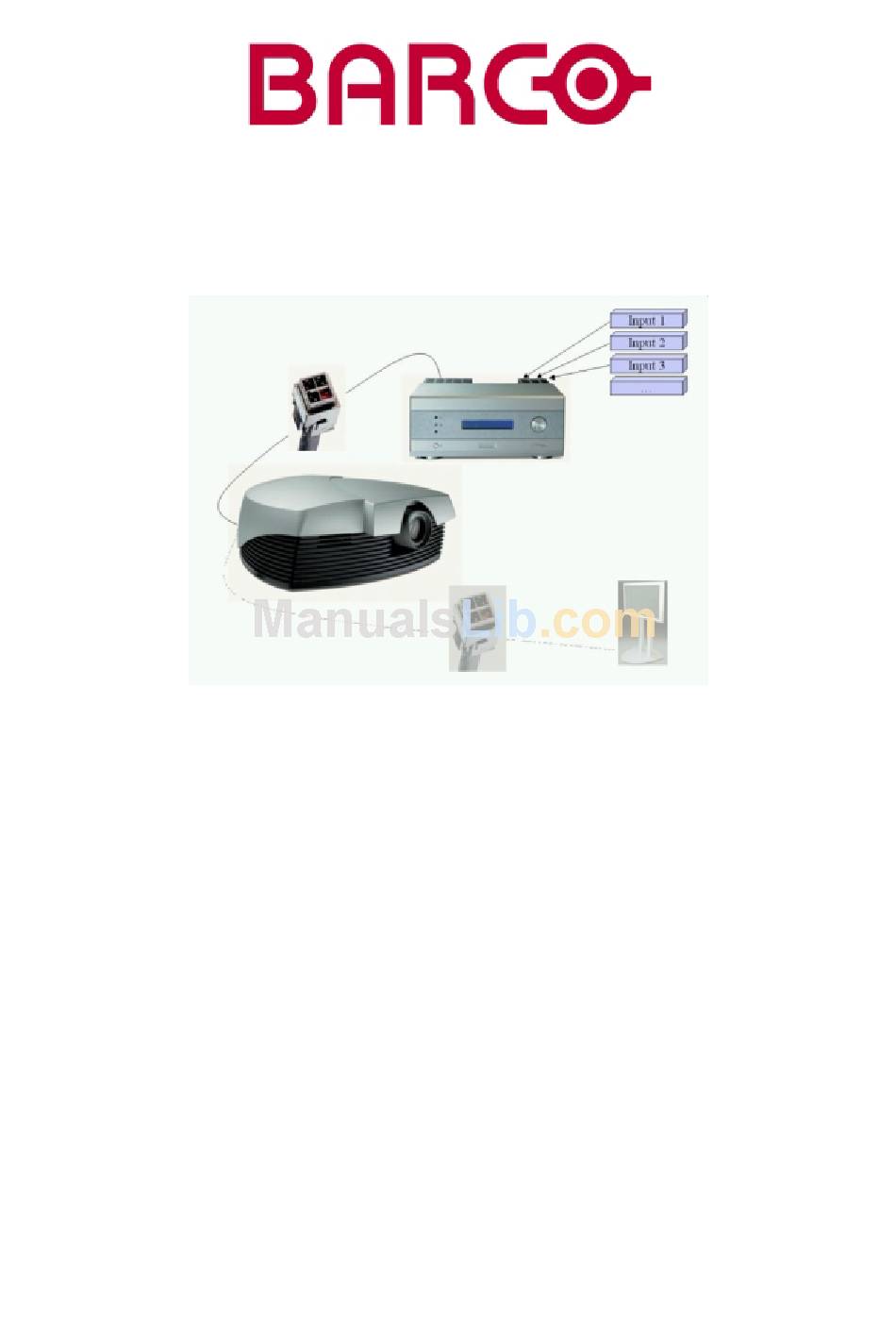

  • Page 1 ARCO ROJECTION VERSUM S YSTEM R9001870 R9005010 R9841020 ’ WNER S MANUAL 17012003 R5976490/01...
  • Page 2 Barco nv Home Cinema Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.84.30 Fax: +32 56.36.88.62 E-mail: salesassistantht.bci@barco.com Visit us at the web: www.homecinema.barco.com Printed in Belgium...

  • Page 3: Federal Communication Commission (Fcc Statement)

    The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of compliant, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY INSTRUCTIONS................... 3 1.1 General Safety Instructions .
  • Page 6 Table of contents R5976490 CINE VERSUM SYSTEM 17012003...

  • Page 7: Safety Instructions

    On cooling The cooling fan in this projector continues to run for about 1 min. after the projector is turned off. During normal operation, when turning the power off always use the power down function on the Master or the remote control. Ensure the cooling fan has stopped before switching off the projector using the power switch.

  • Page 8: Cine Versum 50

    1. SAFETY INSTRUCTIONS Protection from Ultraviolet Radiation WARNING: DO NOT LOOK DIRECTLY IN THE HIGH INTENSITY LIGHT BEAM. The lamp contained in this product is an intense source of light and heat. One component of the light emitted from the lamp is ultraviolet light. 1.2.2 Cine VERSUM 50 Lightning conditions...

  • Page 9: System Configuration

    Thank you for purchasing the Cine VERSUM system from Barco. You are now at the gates of projection heaven. The Cine VERSUM from BARCO Home Theatre is the result of a completely new look at home theater. BARCO has fundamentally changed the way a home theater system works, from source to image! We are proud we have fulfilled your demands, with this very first non-compromise home theater solution ever released.
  • Page 10 2. SYSTEM CONFIGURATION Image 2-2 Display link R5976490 CINE VERSUM SYSTEM 17012003...

  • Page 11: Overview User's Controls

    3. OVERVIEW USER’S CONTROLS Overview • Cine VERSUM Master • Cine VERSUM 80 • Cine VERSUM 50 • Remote Control • Remote Control operation 3.1 Cine VERSUM Master Front View The front side of theCine VERSUM Master is provided with the following controls: Image 3-1 Front side Cine VERSUM Master Controls function description...

  • Page 12: Cine Versum 50

    Lights up when a valid IR signal from the Remote Control has been captured. Lights up continuously: projector in the operation mode. Lights up repeatedly 2 times short, 1 time long: projector in the standby mode Blinks fast: projector in the cooling down mode after switching off (duration 1 min.).

  • Page 13: Remote Control

    Image 3-3 Cine VERSUM 50 controls Controls function description Ref. Function Main Power Switch Infra Red Receiver Standby LED Table 3-3 3.4 Remote Control Top side The Infra Red Remote Control buttons support the following functionality: R5976490 CINE VERSUM SYSTEM 17012003 Description Switches the Cine VERSUM 50 in the Standby mode.
  • Page 14 3. OVERVIEW USER’s CONTROLS Image 3-4 Remote Control Controls function description Function Ref. Address button Standby button Digit buttons RC operation indication TEXT FREEZE Picture controls Table 3-4 Stored sources The Cine VERSUM Master can be equipped with up to 8 digital and analog input modules. These modules are linked to your sources and can be selected with the touch of a button on the Remote Control.

  • Page 15: Remote Control Operation

    Digit Button Stored source 3.5 Remote Control operation Overview • General • Battery Insertion in the Remote Control • Visualization of commands 3.5.1 General How to use The Remote Control allows you to control your Cine VERSUM Master, even when it is built into a cabinet. Indeed, the SL/XL cable allows for 2–way communication.

  • Page 16: Battery Insertion In The Remote Control

    3. OVERVIEW USER’s CONTROLS Factory address setting of the modules The factory address setting of the modules is as follows: Module Cine VERSUM 80 Cine VERSUM 50 Cine VERSUM Master Common address: is a fixed address, stored in the module. The module will execute the commands sent by a Remote Control, programmed with the common address <0>.

  • Page 17: Visualization Of Commands

    When a button on the Remote Control or the dial knob on the Cine VERSUM Master is pressed, the command is visualized on the screen of the plasma display or of the projector and also on the graphical display of the Cine VERSUM Master. This can take the form of a menu, a message or a bar scale.
  • Page 18 3. OVERVIEW USER’s CONTROLS Image 3-14 On-screen message Image 3-16 On-screen bar scale Image 3-15 Message on Master display Image 3-17 Bar scale on Master display R5976490 CINE VERSUM SYSTEM 17012003...

  • Page 19: Switching On/Off The Cine Versum System

    The Cine VERSUM is a modular system that provides you the possibility to connect more than one display device to the Cine VERSUM Master. In this owner’s manual, we only discuss the most common case : one Master linked to one Projector. For info on the more complex systems, please review the installation manual.

  • Page 20: Switching The System Between Operation And Standby

    4. SWITCHING ON/OFF THE CINE VERSUM SYSTEM Image 4-2 Cine VERSUM 80 Image 4-4 Power up selection 4.3 Switching the system between OPERATION and STANDBY Overview • From OPERATION mode to STANDBY mode • From STANDBY mode to OPERATION mode 4.3.1 From OPERATION mode to STANDBY mode Using the Jog dial on the Cine VERSUM Master...

  • Page 21: From Standby Mode To Operation Mode

    Using the Remote Control 1. Point the Remote Control to the front of the Cine VERSUM Master or to the Cine VERSUM 80. 2. Press the standby button The Cine VERSUM Master and the Cine VERSUM 80 go from OPERATION to STANDBY. Image 4-9 4.3.2 From STANDBY mode to OPERATION mode...

  • Page 22: From Economic Standby Mode To Standby

    4. SWITCHING ON/OFF THE CINE VERSUM SYSTEM Image 4-12 Economic standby Using the Remote Control 1. Point the Remote Control to the front of the Cine VERSUM Master or to the Cine VERSUM 80 2. Toggle with the arrow keys until “Economic” in the menu on the Cine VERSUM Master is pointed to (image 4-11). 3.

  • Page 23: Turning On The System From Total Off Mode

    4.6 Turning ON the system from total OFF mode How to turn ON the system back to Operation mode 1. Press the power switch on the Cine VERSUM Master (image 4-1). The Cine VERSUM Master goes from OFF to standby. (image 4-15) 2.
  • Page 24 4. SWITCHING ON/OFF THE CINE VERSUM SYSTEM R5976490 CINE VERSUM SYSTEM 17012003...

  • Page 25: Direct Source Selection

    5. DIRECT SOURCE SELECTION 5.1 From standby mode Using the digit buttons on the Remote Control 1. Make sure that the connected sources to the Cine VERSUM Master are turned on. 2. Using the digit button on the Remote Control, key in the corresponding slot number (from 1 to 8). (image 5-1) The Cine VERSUM Master powers up and starts on its turn powering up the connected displays.

  • Page 26: Return To Standby Mode

    5. Direct source selection 5.2 Return to standby mode How to return to standby remotely 1. Point the Remote Control to the front of the Cine VERSUM Master or the Cine VERSUM 80. 2. Press the standby button on the Remote Control again. (image 5-2) The Cine VERSUM Master switches to the standby mode and switches on its turn the connected display into the standby mode.

  • Page 27: Image Control

    6. IMAGE CONTROL Image controls The Brightness, Contrast, Sharpness (Detail), Color and Tint functions are directly accessible with the Remote Control. The adjustment functions, when selected, display a slide bar overlayed on the source image. It is useful to adjust the Brightness, whenever the ambient room lightning changes. The same is true for Contrast.

  • Page 28: Sharpness (Detail) Control

    6. IMAGE CONTROL Image 6-3 6.3 Sharpness (Detail) Control How to adjust the Sharpness The Sharpness function is used to adjust the image sharpness of video signals when using a video decoder installed in the Cine VERSUM Master. To adjust the Sharpness, press the (+) or (-) side of the button ’SHARP’ (image 6-5). The following barscale is overlayed on the source image,image 6-6.

  • Page 29: Color (Saturation) Control

    6.4 Color (Saturation) Control How to adjust the Color (Saturation) The Color function is used to adjust color saturation levels and is only active for Video and S-Video sources. To adjust Color, press the (+) or (-) side of the button ’COLOR’ (image 6-7). The following barscale is overlayed on the source image, image 6-8.
  • Page 30 6. IMAGE CONTROL Image 6-10 Image 6-9 R5976490 CINE VERSUM SYSTEM 17012003...

  • Page 31: Index

    INDEX Cine VERSUM System configuration Cine VERSUM System Switching On/Off the system First startup Image control 23–25 Brightness Color (Saturation) Contrast Sharpness Tint Introduction On/Off Location of User controls Location of User’s controls 7–8 Cine VERSUM 50 Cine VERSUM 80 Cine VERSUM Master On/Off Introduction...

This manual is also suitable for:

R9005010R9841020Cine versum 80Cine versum 50Cine versum master
