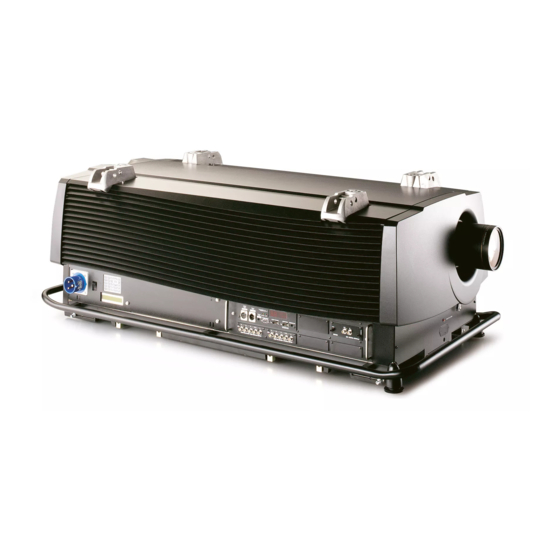

- Page 1 BARCO PROJECTION SYSTEMS 3-D Linear Filter Kit ELM Series R9898220 INSTALLATION MANUAL 3-D linear Filter for Projector ELM Series Date: 25.07.2001 Rev: 00 Art. No.: R5976320...
- Page 2 BARCO n.v./Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com Printed in Belgium...
-
Page 3: Table Of Contents
Mounting the Cross Lath ..........................8 Mounting the Horizontal Shift Lath ......................9 Mounting the Vertical Shift Plate ........................10 Mounting the Polarizer Unit ......................... 11 Passive 3-D Configuration Setup .........................12 Passive 3-D Configuration Setup (continued) ..................... 13 BARCO —————————————————— 3 —————————————— Projection Systems... -
Page 4: Notes
Notes BARCO —————————————————— 4 —————————————— Projection Systems... -
Page 5: Description And Contents Of The Kit
This is a perfect solution for 3D computerized data and stereo video presentations for educational or promotional purposes. Contents of the The following parts are included inside the package of the kit. Parts No Description Quantity Picture BARCO ——————————————————— 5 —————————————— Projection Systems... - Page 6 Spare List A576025 B360138 R821011 R 821012 R 821015 R821009 R 3631 049 R 3623378 G 115720 G 115740 R 819610 R366243 R821008 (3-D Left) R8210081 (3-D right) R 821014 G 115720 R3631049 BARCO ——————————————————— 6 —————————————— Projection Systems...
-
Page 7: Mounting The Support Rods
2 screws (A) on the fixation blocks. Attention: To allow later on the adjustment of the distance between polarization filter and front lens, don’t tighten the screws too hard. Illustrations Image 1 Image 2 Image 3 BARCO ——————————————————— 7 ————————————— Projection Systems... -
Page 8: Mounting The Cross Lath
2. Slide the cross lath on the rods until the top of the rods just suits the front of the lath. Secure the position of the lath with the 2 screws (B). Don’t 1&2 forget to fasten the rigging points again. Illustrations Image 1 Image 2 BARCO ——————————————————— 8 ————————————— Projection Systems... -
Page 9: Mounting The Horizontal Shift Lath
Secure the position of the lath with the 2 screws (B). Don’t 1&2 tighten the screws too hard because a horizontal adjust- ment of the polarizer has still to be done. Illustrations Image 1 Image 2 BARCO ——————————————————— 9 ————————————— Projection Systems... -
Page 10: Mounting The Vertical Shift Plate
Secure the position of the plate with the 2 screws (B). Don’t 1&2 tighten the screws too hard because a vertical adjustment of the polarizer has still to be done. Illustrations Image 1 Image 2 BARCO ——————————————————— 10 ————————————— Projection Systems... -
Page 11: Mounting The Polarizer Unit
Lock the screw end with a nut (E) to determine the adjust- ment range and also to prevent drop of the polarizer when adjusting too far. Illustrations Image 1 20m m Image 3 Image 2 BARCO ——————————————————— 11 ————————————— Projection Systems... -
Page 12: Passive 3-D Configuration Setup
Front/Table 3D Front L 3D Front R Front/Ceiling 3D Front L 3D Front R Rear/Table 3D Front R 3D Front L Rear/Ceiling 3D Front R 3D Front L to be continued on next page BARCO ——————————————————— 12 ————————————— Projection Systems... -
Page 13: Passive 3-D Configuration Setup (Continued)
! too big ! Adjustment HORIZONTAL position of the light spot on the polarizer Adjustment VERTICAL position of the light spot on the polarizer Adjustment tilting of the light spot on the polarizer BARCO ——————————————————— 13 ————————————— Projection Systems...
