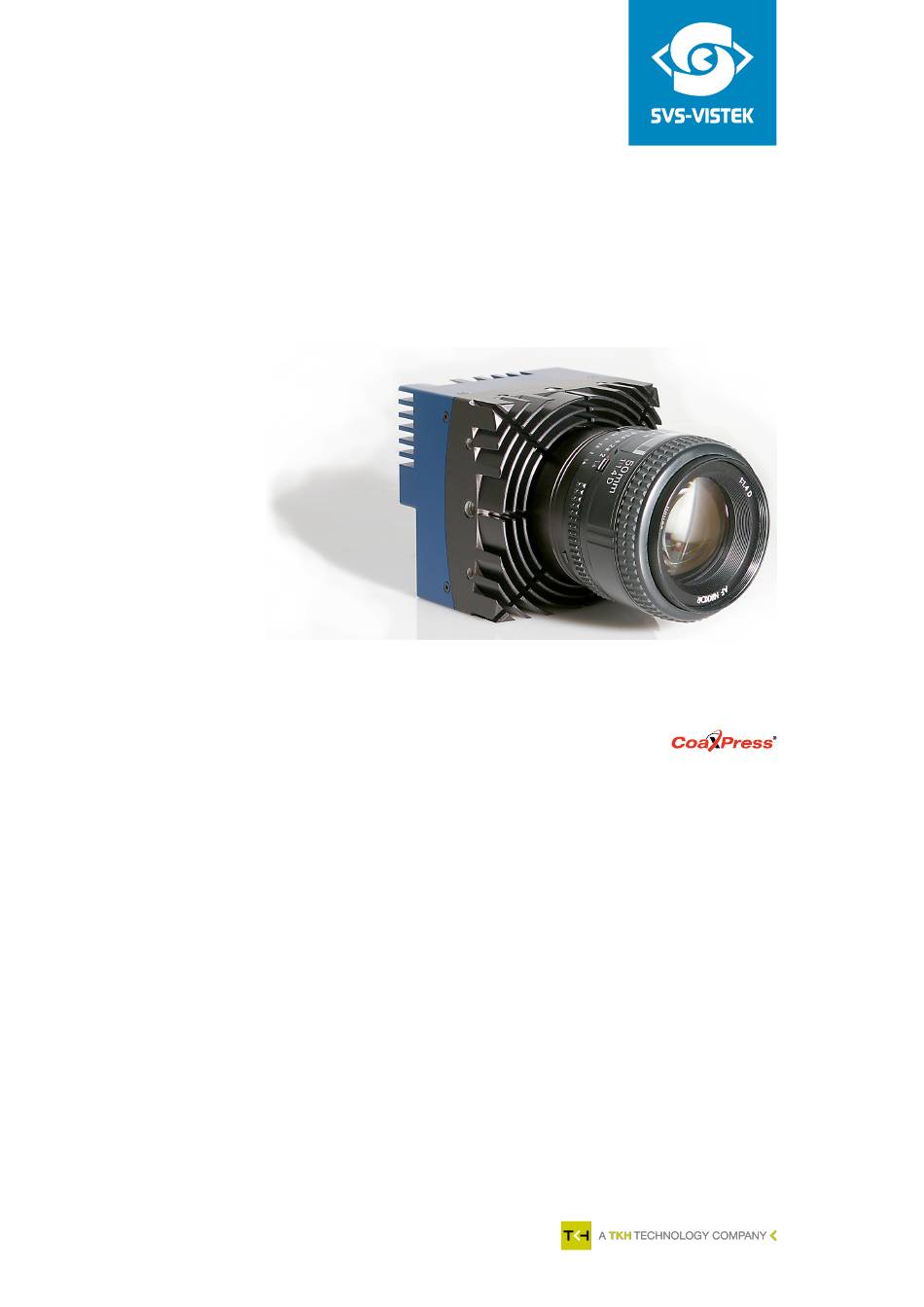

- Page 1 EoSens® 25CXP+ User Guide...
-
Page 2: Table Of Contents
Contents Before you start About this manual 1.1.1 Tips, remarks, and notes 1.1.2 Registered trademarks 1.1.3 Conformity and use 1.1.4 Supplements Warranty and non-warranty clause Support Introduction Intended use Scope of delivery Optional accessories System requirements The camera Camera description Operating temperature Additional cooling Interfaces of the camera... - Page 3 Camera dimensions Spectral response 5.5.1 Monochrome and color Appendix Declaration of Conformity...
- Page 4 Figures Fig.: 3-1: Interfaces of the camera EoSens® 25CXP+ Fig.: 4-1: Connecting a frame grabber Fig.: 4-2: Connecting input and output signals with the internal circuit Fig.: 4-3: IO signals Fig.: 4-4: Connecting camera and image processing system Fig.: 5-1: Rear view Fig.: 5-2: Side view with F-mount adapter Fig.: 5-3: Quantum Efficiency for Monochrome and Color Fig.: 5-4: Quantum Efficiency for Standard and NIR monochrome...
-
Page 5: Before You Start
Before you start About this manual This manual contains helpful information to install and operate the described cam- era. It has been produced with care. Nevertheless, information might be erroneous or incomplete. Mikrotron GmbH cannot be held responsible for any problems resulting from incomplete or erroneous information. -
Page 6: Supplements
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions given in this guide, may cause harmful interference to radio communications. Operation of this equipment in a res- idential area is likely to cause harmful interference in which case the user will have to correct the interference at its own expense. -
Page 7: Warranty And Non-Warranty Clause
Life support applications The products described in this manual are not designed for use in life support appli- ances or devices and systems where malfunction of these products can reasonably be expected to result in personal injury. NOTICE Mikrotron customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Mikrotron for any damages res- ulting from such improper use or sale. -
Page 8: Introduction

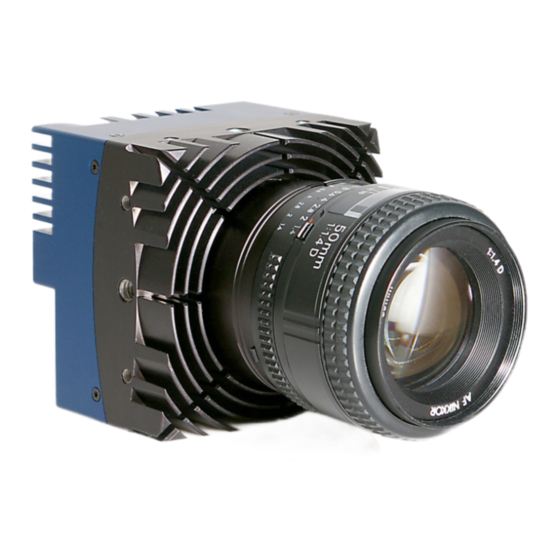

Introduction Intended use The camera EoSens® 25CXP+ belongs to the product class of so-called high-speed machine vision (MV) cameras that are integrated into test or measurement systems. High-speed MV cameras are designed to capture images with high frame rate for various purposes in an industrial or scientific environment to deliver image data for further analysis. -
Page 9: System Requirements
Cables The four bundle cable KKRDDINDINxx/6Gx4 with DIN 1.0/2.3 connector at both ends (4x) is available in lengths of 5 m, 10 m, 15 m, or 20 m. It is used to connect the frame grabber and camera when both are equipped with DIN 1.0/2.3 connectors. -
Page 10: The Camera
The camera Camera description All cameras of the EoSens CXP family are CoaXPress compliant. The high-speed CMOS cameras come with a 25 Megapixel sensor of 5120 x 5120 (H x V). They are widely configurable and scalable to fit your needs and are available in monochrome and color (Bayer filter). -
Page 11: Operating Temperature
Operating temperature Despite of its high performance, the fanless 25CXP+ camera is compact and works silently. If the camera is mounted on mechanical parts, the heat generated during operation will be dissipated by the cooling fins at the rear of the camera and the mechanical parts. -
Page 12: Interfaces Of The Camera
Interfaces of the camera Fig.: 3-1: Interfaces of the camera EoSens® 25CXP+ 1 Status LED to verify the operating status of the camera 2 Four CoaXPress µBNC connectors to connect the camera with a CoaXPress compliant frame grabber. The ∆- marked line can supply the camera with power via power over coax (PoC). -
Page 13: Status Led
Status LED The multi-color status LED indicates camera and connection states. LED State Indication No power Solid orange System is booting Slow pulse red Powered, but nothing connected (not applicable if PoC is used) Fast flash alternate Connection detection in progress, PoC active green/orange Fast flash orange Connection detection in progress, PoC not in use... -
Page 14: First Steps
First steps Connecting a frame grabber The CoaXPress standard describes seven connections for data transmission between camera and frame grabber. Gb/s. The transmission speed of the camera can either be set to 3.125, 5, or 6.25 The possible cable length depends on the cable type used, its quality, and the selec- ted transmission speed. -
Page 15: Connecting An External Power Supply Or I/O Signals
Fig.: 4-1: Connecting a frame grabber INFO All connections are hot-pluggable. The assignment of the DIN cables KKRDDINDINxx/6Gx4 and KKRDDINBNCxx/6Gx4 connector pins is as follows: DIN connector Frame grabber Cable color 1 (triangle) TX channel 0 2 TX channel 1 Green 3 TX channel 2 Blue... -
Page 16: Fig.: 4-2: Connecting Input And Output Signals With The Internal Circuit
Signal Signal 1 + 12 2 + 11 VCC (12 - 24 V) OUT1 OUT0 NOTICE The I/O standard 3.3V LVTTL applies to all signal I/Os. Connecting an external trigger Internally connected with: pin 4 pin 8 pin 6 pin 10 connected with pin 3 + 5 Fig.: 4-2: Connecting input and output signals with the internal circuit All inputs accept 3.3 ... -
Page 17: Connecting Camera And Image Processing System
If the available external signal cannot deliver a low level voltage <0.3 V or the input signal is >24 V, the following transistor circuit can be used. A suitable transistor is for example BC547, or 2N2222. NOTICE This circuit will invert the signal. (A high level at the input will be seen as low level at the camera.) Examples for R1 Input voltage... -
Page 18: The Power-Up Profile
7. Connect the power supply NTCAM132x via the 12-pin connector with the cam- era (5), if required. INFO If connecting an external trigger, take the pinning into account. 8. If an external power supply (7) is used, connect the power supply with the main supply. - Page 19 FlashData.ibf fpga_app_firmware.ibf 1. Open the tool “CXP Updater.exe” in the folder “Firmware”. 2. Select the CTI file that corresponds to the frame grabber board. If unsure, con- sult the Device Manager. 3. To add a CTI file that is not in the list, select Add another CTI file and navigate to the file.
-
Page 20: Technical Data
Technical data Camera specifications Frame rate (8 bit) max. 15332 Pixel depth 8 / 10 bit Shutter speed 1 µs – 1 s Shutter time min. > 40 µs Shutter time (steps) 1 µs Max. Trigger fre- 300 kHz quency Quantum efficiency >50 ... -
Page 21: Sensor Specifications
Sensor specifications Sensor type CMOS; monochrome or RGB (Bayer filter) Image sensor size 23.04 x 23.04 mm Resolution 5120 x 5120 px Pixel depth 8 bit / 10 bit Pixel size 4.5 x 4.5 µm Active area 32.6 mm diagonal (APS-H) ROI min. -
Page 22: Fig.: 5-1: Rear View
Camera dimensions All dimensions in Millimeters. Fig.: 5-1: Rear view 84,3 65,44 Fig.: 5-2: Side view with F-mount adapter 5 Technical data... -
Page 23: Fig.: 5-3: Quantum Efficiency For Monochrome And Color
Spectral response 5.5.1 Monochrome and color Fig.: 5-3: Quantum Efficiency for Monochrome and Color Fig.: 5-4: Quantum Efficiency for Standard and NIR monochrome 5 Technical data... - Page 24 Appendix The following page contains the Declaration(s) of Conformity. 6 Appendix...
- Page 25 EU Declaration of Conformity EU-Konformitätserklärung Mikrotron GmbH Phone: +49 (0)89 72634200 Landshuter Str.20-22 Fax: +49 (0)89 726342-99 D-85716 Unterschleissheim Mail to: info@mikrotron.de www.mikrotron.de We herewith declare under our sole responsibility that the products mentioned below: Hiermit erklären wir in alleiniger Verantwortung, dass die folgenden Produkte: Product type: 25CXP+ Camera Produkt:...
- Page 26 SVS-Vistek GmbH Ferdinand-Porsche-Str. 3 82205 Gilching Phone: +49 8105 3987-60 https://www.svs-vistek.com info@svs-vistek.com © 09-2022 This document and the product(s) described are subject to change without further notice.
