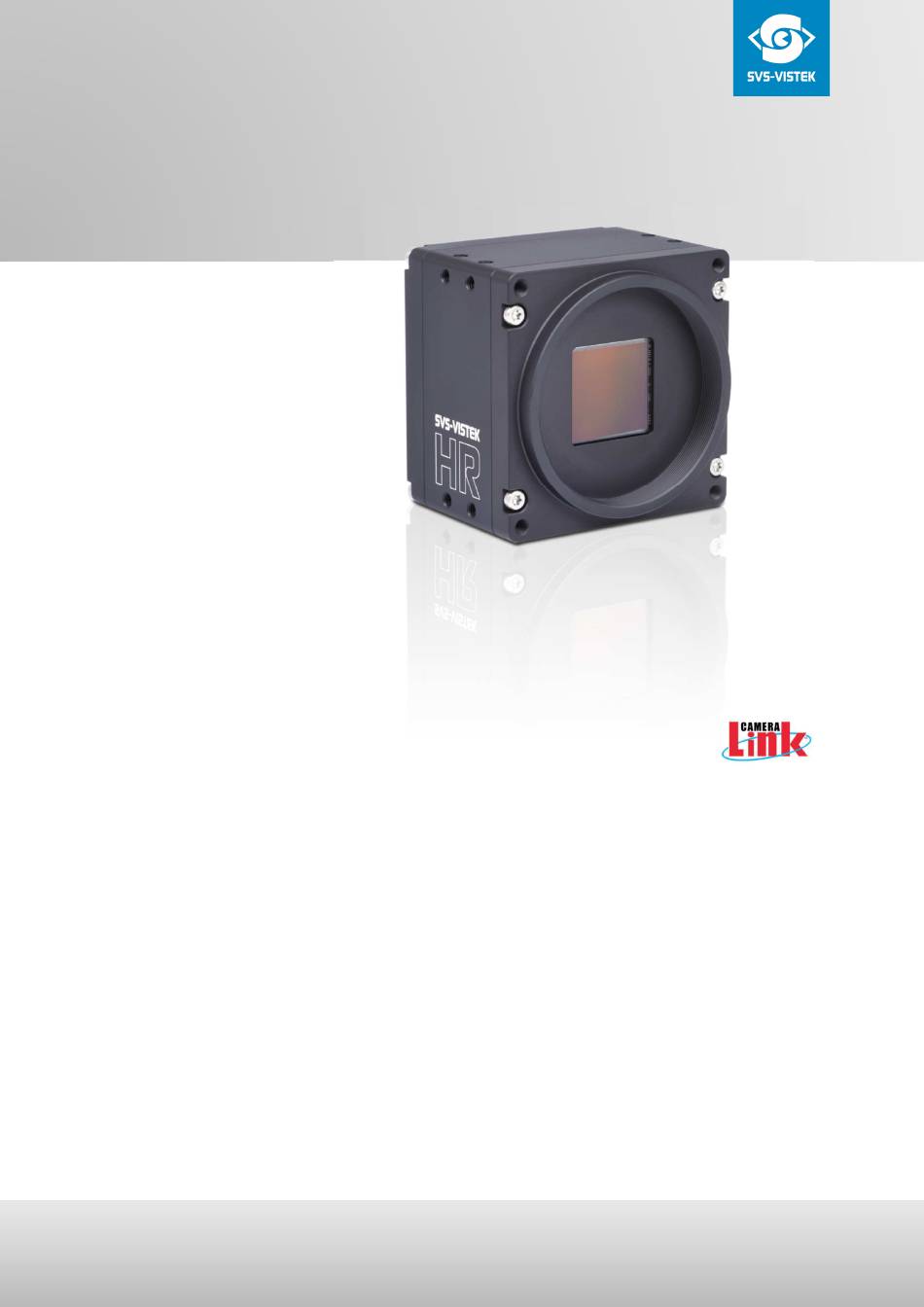

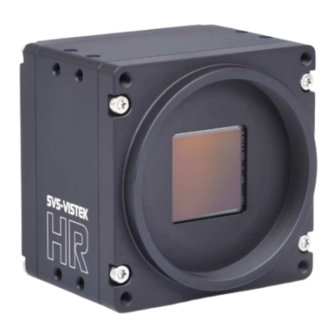

  • Page 1 Manual HR series hr25*CL 7.23.2018...
  • Page 2 The camera in your possession has been produced with great care and has been thoroughly tested. Nonetheless, should you have reasons for complaint, then please contact your local SVS-VISTEK distributor. You will find a list of distributors in your area under: http://www.svs-...

  • Page 3: Table Of Contents

    Camera Link timing ............ 28 6.2.5 ..............30 6.2.6 Defect Pixel Correction ..........31 6.2.7 Shading Correction ............. 32 I/O Features ............34 6.3.1 PWM ................. 34 6.3.2 Assigning I/O Lines – IOMUX ........35 SVS-VISTEK–Safety Messages Contents of Camera Set...
  • Page 4 SVS-VISTEK 6.3.3 Strobe Control ............40 6.3.4 Sequencer ..............42 6.3.5 Optical Input .............. 46 6.3.6 PLC/Logical Operation on Inputs ......... 47 6.3.7 Serial data interfaces ........... 48 6.3.8 Trigger-Edge Sensitivity ..........50 6.3.9 Debouncing Trigger Signals ......... 50 6.3.10 Prescale ..............

  • Page 5: Safety Messages

    A white graphical symbol inside a blue circle defines a safety sign that indicates that an action shall be taken to avoid a hazard. Cross-reference NOTICE Provides references and tips Figure 1: Safety messages SVS-VISTEK–Safety Messages Contents of Camera Set...

  • Page 6: Legal Information

    Customers, integrators and end users of SVS-Vistek products might sell these products and agree to do so at their own risk, as SVS-Vistek will not take any liability for any damage from improper use or sale.

  • Page 7: Getting Started

    SVS-VISTEK 3 Getting Started 3.1 Contents of Camera Set > Camera > Power supply (if ordered/option) > Quick guide > User Manual > Software installer – SVCam Kit > Euresys camera file (optional) 3.2 Power supply Connect the power supply with the Hirose connector.

  • Page 8: Software

    Generally, any GenICam based software package should be able to run a SVS-Vistek camera (GigE Vision, USB3, Camera Link). It is strongly recommended to uninstall the existing version of SVCam Kit or SVCapture before installing the new version.

  • Page 9: Camera Link Viewer Software

    Choose “Camera Link industrial Camera…” > Click “next” > In the list of camera vendors choose “SVS-VISTEK“ and the camera you want to view. > Select frame grabber and connector > For “Topology” values refer to the Euresys documentation. At first: stay with “Mono”...

  • Page 10: Firmware Updater

    SVS-VISTEK 3.4.3 Firmware updater Some features may not have been implemented in your camera at the time of selling. For updating your camera firmware to the most recent version, you need to download the firmware upgrade tool “CL FirmwareUpdater” and the firmware file (download it from website, login area) matching your camera model.

  • Page 11: Connectors

    SVS-VISTEK 4 Connectors 4.1 Camera Link™ To use Camera Link a frame grabber is needed. Matching frame grabbers can be purchased at your distributor or at SVS-VISTEK. 4.1.1 Camera Link Connector Specification Type 26 Pin connector SDR female Manufacturer Part-Nr. connector...

  • Page 12: Cameralink Pinout

    SVS-VISTEK 4.1.2 CameraLink Pinout Pinout Signal Name Direction Signal Description - 1 - GND / 12 Shield 1 / 12 V power* - 2 - Camera to FG Data - 3 - Camera to FG Data - 4 - Camera to FG...
  • Page 13 SVS-VISTEK Connectors...

  • Page 14: Input / Output Connectors

    SVS-VISTEK 4.2 Input / output connectors Hirose™ 12Pin The Hirose connector provides the connectors to power, inputs and outputs. For detailed information about switching lights from inside the camera, refer to strobe control. Specification Type HR10A-10R-12P Mating Connector HR10A-10P-12S Connectors...

  • Page 15: The Hr Camera Series

    SVS-VISTEK 5 The HR Camera Series Focusing on details The SVCam HR series is a series of industrial machine vision cameras featuring especially on high image resolutions and high speed at the same without compromising on image quality. High end CCD and CMOS image sensors with high resolutions permit...
  • Page 16 SVS-VISTEK > Up to 4 x high voltage IN – TTL up to 25 Volts > Power MOSFET transistors > PWM strobe control > Sequencer for various configurations > PLC fuctionality with AND, OR and timers > Safe Trigger (debouncer, prescaler, high low trigger)

  • Page 17: Feature Description

    SVS-VISTEK 6 Feature description This chapter covers features of SVCam cameras. Not every feature might be supported by your specific camera model. For information about the features of your specific model, please refer to the specifications area with your exact model.

  • Page 18: Exposure Speed

    SVS-VISTEK Figure 5: moving object, interlaced camera Using flash with global shutter is straight forward: just make sure your flash is on while shutter is open, thus all pixels are exposed to light the same time. You might flash at any time within exposure time.

  • Page 19: Exposure

    SVS-VISTEK 6.1.4 Exposure See various exposure and timing modes in chapter: Basic capture modes. Combine various exposure timings with PWM LED illumination, refer to sequencer. Setting Exposure time Exposure time can be set by width of the external or internal triggers or programmed by a given value.

  • Page 20: Color

    SVS-VISTEK Figure 1: High vs low bit depth representation of brightness values As SVCams export pure RAW-format only, color has to be created on the host computer in accordance with the known Bayer-pattern by computing the brightness values of RGB into colour values.

  • Page 21: Resolution

    SVS-VISTEK W hi te Ba l a n ce The human eye adapts to the definition of white depending on the lighting conditions. The human brain will define a surface as white, e.g. a sheet of paper, even when it is illuminated with a bluish light.

  • Page 22: Flip Image

    SVS-VISTEK Figure 8: noise caused by too much gain Auto Gain For automatic adjustment of Gain please refer to Auto Luminance. When using autogain with steps of gain the non-continous gain adjustment might be visible in final image. Depending on your application it might be preferrable to use fixed gain values instead and modify exposure with exposure time.
  • Page 23 SVS-VISTEK Figure 3: horizontal flip Figure 4: vertical flip Feature description...

  • Page 24: Decimation

    SVS-VISTEK 6.1.11 Decimation For reducing width or height of an image, decimation can be used. Columns or rows can be ignored. Refer to AOI for reducing data rate by reducing the region you are interested in. Figure 9: Horizontal decimation...

  • Page 25: Camera Features

    SVS-VISTEK 6.2 Camera Features 6.2.1 Basic Capture Modes Free Running Free running (fixed frequency) with programmable exposure time. Frames are readout continously and valid data is indicated by LVAL for each line and FVAL for the entire frame. There is no need to trigger the camera in order to get data. Exposure time is programmable via serial interface and calculated by the internal logic of the camera.
  • Page 26 At the rising edge of the trigger the camera will initiate the exposure. The software provided by SVS-Vistek allows the user to set exposure time e.g. from 60 μs 60 Sec (camera type dependent).
  • Page 27 SVS-VISTEK Exposure time can be changed during operation. No frame is distorted during switching time. If the configuration is saved to the EEPROM, the set exposure time will remain also when power is removed. Detailed Info of External Trigger Mode Dagrams below are aquivalent for CCD and CMOS technique.

  • Page 28: System Clock Frequency

    SVS-VISTEK 6.2.2 System Clock Frequency Default system clock frequency in almost every SVCam is set to 66.6 MHz. To validate your system frequency refer to: specifications. Using the system clock as reference of time, time settings can only be made in steps. In this example, the transfer rate is 66.7 MHz, thus resulting in steps of 15 ns.

  • Page 29: Camera Link Timing

    SVS-VISTEK 6.2.4 Camera Link timing It might be interesting to know when “valid data” can be expected exactly. = pixel horizontal [count] = pixel vertical [count] LVAL – t L v d Every line has periods with no valid data. The Duration of None Valid Data between two lines ( ) is three time the Camera Link clock (clk).
  • Page 30 SVS-VISTEK Figure 12: overview of FVAL and LVAL signal timing on Camera Link Figure 13: more detailed view of LVAL signal timing on Camera Link Example calculation on exo174*CL (1920 / 2) (1/85MHz) > × px in line / sent at once CL_clock ×...

  • Page 31: Roi / Aoi

    SVS-VISTEK 6.2.5 ROI In Partial Scan or Area-Of-Interest or Region-Of-Interest (ROI) -mode only a certain region of the sensor will be read. Figure 15: AOI on a CCD sensor Selecting an AOI will reduce the number of horizontal lines being read.

  • Page 32: Defect Pixel Correction

    (hot pixel) that always are outputting a bright signal. The amount of hot pixels is proportional to exposure time and temperature of the sensor. By default, all known defect pixels or clusters are corrected by SVS-VISTEK as a factory default. Under challenging conditions or high temperature environments defect pixel behaviour might change.

  • Page 33: Shading Correction

    SVS-VISTEK 6.2.7 Shading Correction The interactions between objects, illumination, and the camera lens might lead to a non-uniform flatfield in brightness. Shading describes the non- uniformity of brightness from one edge to the other or center towards edge(s). Figure 17: Original and shading corrected image...
  • Page 34 SVS-VISTEK In contrary to any shading correction being done after image recording, the method described here will hardly affect the dynamic range of the image. The task is done with shading maps. Being applied before final pixel quantization, a significant improvement in image quality is the result.

  • Page 35: I/O Features

    SVS-VISTEK 6.3 I/O Features 6.3.1 PWM Pulse width modulation Description of the function used within the sequencer or implemented by the pulseloop module During Pulse Width Modulation, a duty cycle is modulated by a fixed frequency square wave. This describes the ratio of ON to OFF as duty factor or duty ratio.

  • Page 36: Assigning I/O Lines - Iomux

    SVS-VISTEK Figure 18: 25% PWM load Figure 19: 50% PWM load The integrals over both periods . and . are equal. An equal amount of Photons will be emitted. The intensity of light is the same. The periods . and .
  • Page 37 EPROM. Default setting can be restored from within the Camera. Note: LineSelector translation If you connect the camera with a non- Line0 Output0 SVS-Vistek GigEVision client, you Line1 Output1 might not see the clearnames of the Line2 Output2 lines, but only line numbers. In this Line3...
  • Page 38 SVS-VISTEK Refer to pinout in input / output connectors when physically wiring. input vector to switch matrix name description io_in(0) trigger input 0 – 24 Volt / RS-232 / opto * io_in(1) trigger input 0 – 24 Volt / RS-232 / opto * io_in(2) trigger input 0 –...
  • Page 39 SVS-VISTEK output vector from switch matrix name / register describtion io_out(0) output open drain io_out(1) output open drain io_out(2) output open drain * io_out(3) output open drain * io_txd output, when debug='0' rxd_to_uart1 output (uart_in) trigger output sequenzer_hw_trigger input to module iomux_sequenzer_0...
  • Page 40 SVS-VISTEK Example of an IOMUX configuration > The trigger signal comes in on line 0 > Debounce it. connect line 0 to 8: 1000000000000000000000000 signal appears again on line 15 – debouncer out > Use the prescaler to act only on every second pulse.

  • Page 41: Strobe Control

    SVS-VISTEK 6.3.3 Strobe Control The SVCam 4I/O concept contains an integrated strobe controller. Its controls are integrated into the GenICam tree. With LED lights attached to the outputs, this enables the user to control the light without external devices. Being controlled via GenICam, any GenICam-compliant 3 party software is able to control the light as well.
  • Page 42 SVS-VISTEK LED s i n Fl a s h M od e Most LED lights can cope with currents higher than specs. This gives you higher light output when light is ON. Please refer to your LED specs if LED overdrive is permitted.

  • Page 43: Sequencer

    SVS-VISTEK 6.3.4 Sequencer The sequencer is used when different exposure settings and illuminations are needed in a row. Values to set Description Sequencer interval Duration of the interval Exposure start Exposure delay after interval start Exposure stop Exposure stop related to interval Start...
  • Page 44 SVS-VISTEK Notes Different exposure / strobe timings are used for illustration. In most cases they will show values same as exposure The resulting exposure time shows the period of sensor light exposure. (‘’masking’’ of exposure time by creating strobe light impulses shorter than exposure time).
  • Page 45 SVS-VISTEK As being said before, all these values have to be entered into the camera’s GenICam tree as tic values. The timing values translate like this into tics: Values to set in GenICam Interval 0 (RED) Interval 1 (GREEN) Interval 2 (BLUE) Interval 3 (WHITE)
  • Page 46 SVS-VISTEK In a timings diagram, the sequence values above will look like this: Feature description...

  • Page 47: Optical Input

    The disadvantage of an optical input is that it is slower in terms of signal transmission and slew rate than a direct electrical connection. An optical input needs some current for operation. The SVS-Vistek optical input is specified to 5-24V, 8mA.

  • Page 48: Plc/Logical Operation On Inputs

    SVS-VISTEK 6.3.6 PLC/Logical Operation on Inputs The logic input combines trigger signals with Boolean algorithms. The camera provides AND, NAND, OR, NOR as below. You might connect 2 signals on the logic input. The result can be connected to a camera trigger signal or it may be source for the next logical operation with another input.

  • Page 49: Serial Data Interfaces

    SVS-VISTEK 6.3.7 Serial data interfaces (ANSI EIA/) TIA-232-F RS-232 and RS-422 (from EIA, read as Radio Sector or commonly as Recommended Standard) are technical standards to specify electrical characteristics of digital signaling circuits. In the SVCam’s these signals are used to send low-power data signals to control light or lenses (MFT).
  • Page 50 SVS-VISTEK UART Packaging Data into containers (adding start and stop bits) is implemented by the UART (Universal Asynchronous Receiver Transmitter) Figure 23: UART encoding of a data stream RS-422 RS-422 is a differential low voltage communication standard. Figure 24: LVDS signal – no return to zero volt...

  • Page 51: Trigger-Edge Sensitivity

    SVS-VISTEK 6.3.8 Trigger-Edge Sensitivity Trigger-Edge Sensitivity is implemented by a “schmitt trigger”. Instead of triggering to a certain value Schmitt trigger provides a threshold. Figure 6: Schmitt trigger noise suppression 6.3.9 Debouncing Trigger Signals Bounces or glitches caused by a switch can be avoided by software within the SVCam.
  • Page 52 SVS-VISTEK Therefor the signal will not be accepted till it lasts at least a certain time. Use the IO Assignment tool to place and enable the debouncer module in between the “trigger” (schmitt trigger) and the input source (e.g.: line DebouncDuration register can be set in multiples of 15ns (implement of system clock).

  • Page 53: Prescale

    SVS-VISTEK 6.3.10 Prescale The Prescaler function can be used for masking off input pulses by applying a divisor with a 4-bit word, resulting in 16 unique settings. > Reducing count of interpreted trigger signal > Use the prescaler to ignore a certain count of trigger signals.

  • Page 54: Specifications

    SVS-VISTEK Specifications All specifications can be viewed as well on our website, www.svs- vistek.com. We are proud to have ongoing development on our cameras, so specs might change and new features being added. 7.1 hr25*CL Model hr25MCL hr25CCL family active pixel w x h...
  • Page 55 380 g protection class IP40 IP40 power consumption 10.0 W 10.0 W operating temperature -10...65°C -10...65°C humidity non- condensing 10…90 % 10…90 % status production production (1) please refer to drawings © SVS-VISTEK July 23, 2018 July 23, 2018 Specifications...
  • Page 56 SVS-VISTEK Spectral Sensitivity Characteristics NOIP1SN025KA Figure 30: Spectral Sensitivity Characteristics NOIP1SN025KA Figure 31: Spectral Sensitivity Characteristics NOIP1SE025KA Specifications...

  • Page 57: Dimensions

    SVS-VISTEK 8 Dimensions All length units in mm. Find drawings in the web download area at https://www.svs-vistek.com/en/support/svs-support-download-center.php CAD step files available with valid login at SVS-VISTEK.com Dimensions...

  • Page 58: Hr25*Cl

    SVS-VISTEK 8.1 hr25*CL Dimensions...
  • Page 59 SVS-VISTEK Dimensions...
  • Page 60 SVS-VISTEK Dimensions...

  • Page 61: M58 Mount

    SVS-VISTEK M58 mount Diameter 58 mm Thread pitch 0.75 mm Back focus distance from sensor to flange of the camera: 11.48 mm Distance from sensor surface to lens differs depending on lens specifications and how far the lens is screwed in.

  • Page 62: Terms Of Warranty

    SVS-VISTEK 9 Terms of warranty Standard Products Warranty and Seller warrants that the article to be delivered under this order will be free from defects in material and workmanship under normal use and service for a period Adjustment of 2 years from date of shipment. The liability of Seller under this warranty is limited solely to replacing or repairing or issuing credit (at the discretion of Seller) for such products that become defective during the warranty period.

  • Page 63: Faq

    SVS-VISTEK 10 FAQ Problem Solution Camera does not respond to light. Check if camera is set to “Mode 0“. I.e. free running with programmed exposure ctrl. When done, check with the program “Convenient Cam“ if you can read back any data from the camera, such as “Mode“, “type“ of CCD, exposure time settings, etc..

  • Page 64: Glossary Of Terms

    SVS-VISTEK 11 Glossary of Terms Spherical aberration occurs when light rays enter near the edge of the lens; Aberration Chromatic aberration is caused by different refractive indexes of different wavelengths of the light. (Blue is more refractive than red) Analogue-to-Digital Converter, also known as A/D converter In optics, Aperture defines a hole or an opening through which light travels.
  • Page 65 A camera RAW image file contains minimally processed data from the image sensor. It is referred as raw in its meaning. SVS-VISTEK plays out RAW only. Read-Out control defines a delay between exposure and image readout. It...
  • Page 66 SVS-VISTEK A bright light source with a very short light pulse. Ideal for use with Strobe light industrial cameras, e.g. for “freezing” the image capture of fast moving objects. Can often be a substitute for the electronic shutter of the image sensor.
