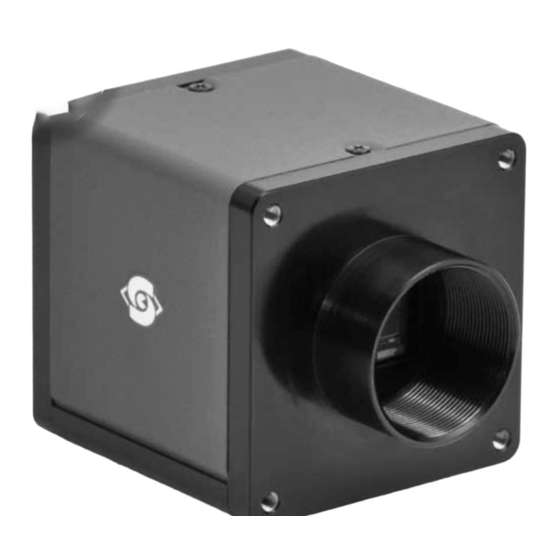

Operation Manual
SVCam-EVO Series
Digital Camera Link Area Scan Cameras
Version 3.5 / last update: 08 / 2012
evo1050
evo2050
evo2150
evo4050
evo8050

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the evo1050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SVS-Vistek evo1050

Summary of Contents for SVS-Vistek evo1050

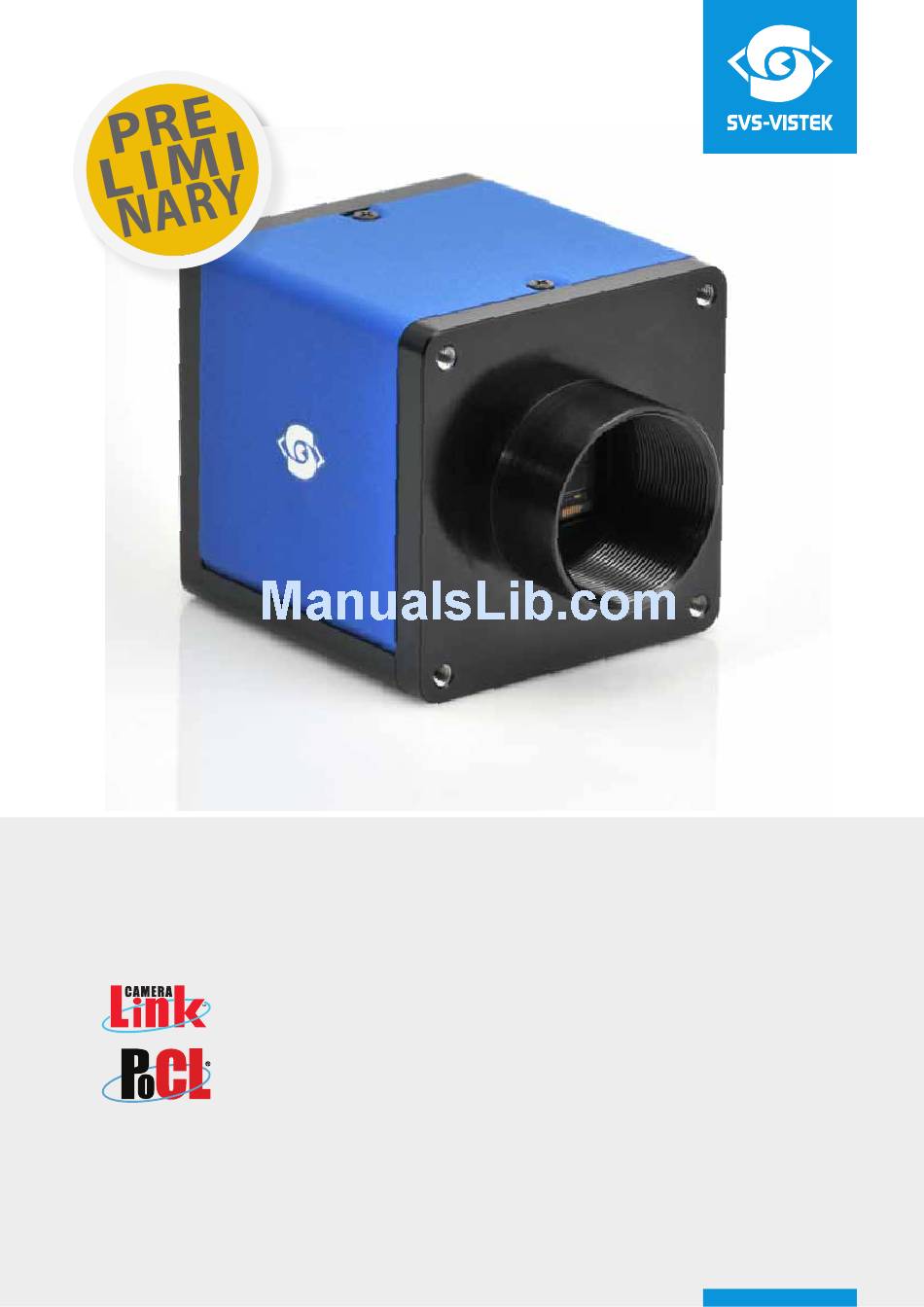

  • Page 1 Operation Manual SVCam-EVO Series evo1050 evo2050 Digital Camera Link Area Scan Cameras evo2150 Version 3.5 / last update: 08 / 2012 evo4050 evo8050...
  • Page 3 Safety Messages The classification of dangers is made pursuant to ISO 3864-2 and ANSI Y535.6 with the help of key words. This Operating Manual uses the following Safety Messages: DANGER! Risk of death or serious injury Danger indicates a hazard with a high level of risk which, if not avoided will result in death or serious injury.
  • Page 4 Copyright Protection Statement (as per DIN ISO 16016:2002-5) Forwarding and duplicating this document, as well as using or revealing its contents are prohibited without written approval. Noncompliance is subject to compensatory damages. All rights reserved with regard to pat- ent claims or submission of design or utility patent.
  • Page 5 The camera in your possession has been produced with great care and has been thor- oughly tested. Nonetheless, should you have grounds for complaint, then please contact your local SVS-ViSTEK distributor. You will find a list of distributors in your area under: http://www.svs-vistek.com/company/distributors/distributors.php...

  • Page 6: Table Of Contents

    2.3 Content of Camera Set ............6 2.4 installation ................7 3 Hardware ..........8 3.1 Technical Drawings of Cameras ..........8 3.1.1 C-Mount evo1050, evo2050, evo2150, evo4050, evo8050......8 3.1.2 M42-Mount evo1050, evo2050, evo2150, evo4050, evo8050......9 3.1.3 Tripod Adapter (optional available) ..............10 3.2 Connectors ..............
  • Page 7 Table of contents | 6 Basic understanding of CCD Technology ..34 6.1 Read out from CCD ............34 6.2 Binning- and Decimation-Modes ......... 36 6.3 Cameras with Color Sensors ..........37 6.4 Tap Geometry ..............38 7 Specifications ........... 39 7.1 Basic Specifications ............

  • Page 8: Introduction

    EN 50022-2. The conformity has been tested and the corresponding declarations and documentation are available at SVS-VISTEK GmbH. Federal Communications Commission (FCC / USA and Canada) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 9: Intended Use

    1 introduction | 1.2 Intended Use Thank you for purchasing a SVS-VISTEK camera. This camera is a high-end electronic imaging device designed for use in Machine Vision applications. It can be used in stationary and mobile applications. Failure to operate the camera other than its intended use and making...

  • Page 10: Safety First

    1 introduction | 1.3 Safety first MANDATORY ACTION! if any foreign object gets into the system components, dis- continue the use immediately. Do NOT try to continue to use the system. To do so invites a fire or an electric shock hazard.
  • Page 11 1 introduction | Cases for indeminity (limited warranty) AVOID ELECTROSTATIC We shall be exempted from taking respon- sibility and held harmless for damages or Do not expose the camera to high voltage or electro- losses incurred by user in the following cases. static discharge, it might be damaged.

  • Page 12: Getting Started

    Camera Type Resolution, H x V [Pixel] Sensor Size max. Frame Rate Pixel Size [µm] Housing, H x W x L [mm] ADC Bit used ADC Output Lens Mount Output Taps evo1050 1.024 x 1.024 1/2“ 190 fps 5.5 x 5.5...

  • Page 13: Camera Order Code

    O = One GE only: L = Non-adjustable clock speed: 50 MHz T = Two H = 64 MHz F = Four Dot Matrix Code - contact SVS-VISTEK for details. This Divice has to be recycled Conformity Serial Number Operating voltage 2.3 Content of Camera Set...

  • Page 14: Installation

    2 Getting Started | 2.4 Installation Install the camera in the desired location: To mount the camera use the supplied tripod adapter or the the four M3 holes located on the camera front plate. Connect a Camera Link cable to your frame grabber. Connect the Camera Link cable to connector A of the camera (see drawing).

  • Page 15: Hardware

    3 Hardware | 3 Hardware 3.1 Technical Drawings of Cameras 3.1.1 C-Mount evo1050, evo2050, evo2150, evo4050, evo8050 Dimensions [mm] Front View Side View Rear View 59.4 42.5 46.9 C-Mount HR 10A-10R-12PB (mating connector: HR 10A-10P-12S) OUT1 (open drain max. 24V, 0.3A)

  • Page 16: M42-Mount

    3 Hardware | 3.1.2 M42-Mount evo1050, evo2050, evo2150, evo4050, evo8050 Dimensions [mm] Front View Side View Rear View 53.4 42.5 46.9 M42-Mount HR 10A-10R-12PB (mating connector: HR 10A-10P-12S) OUT1 (open drain max. 24V, 0.3A) VIN- (GND) Bottom View VIN+ (10V to 25V DC) OUT2 (open drain max.

  • Page 17: Tripod Adapter (Optional Available)

    3 Hardware | 3.1.3 Tripod Adapter Tripod adapter (optional available) (optional available) Dimensions [mm] Front View Side View Back View Bottom View ø R 1.5 UNC 1/4“-20 UNC 3/8“-16...

  • Page 18: Connectors

    C-Mount lenses. it is recommended to use high-quality optical solutions designed for the M42 x 1mm lens-mounting specification. Please contact SVS-ViSTEK or your local dealer for a lens recommendation. if you must use the M42-to-C-Mount adapter with a large format sensor, then do not use a lens designed for less than 1”...

  • Page 19: Power Connector

    3 Hardware | 3.2.2 Power Connector Rear View Power and I/O Connector Requirement Voltage + 10 VDC to + 25 VDC Current Consumption 450 mA, Mating Connector Switchcraft TA 3F Specification Type HR10A-10R-12PB Mating Connector HR10A-10R-12S R 10A-10R-12PB (mating connector: HR 10A-10P-12S) OUT1 (open drain max.

  • Page 20: Basic Circuits For Hardware Interfacing

    3 Hardware | 3.2.3 Basic Circuits for Hardware Interfacing Basic Circuits: Digital Outputs are based on an „Open-Collector-Output“ of a FET Camera Vin + <=28 V DC Power Regulator – GND VI – Digital Input IN 1/2/3/4 Schmitt-Trigger FPGA V low < 0.8V DC V high >...

  • Page 21: Camera Link™ Connector

    3 Hardware | 3.2.4 Camera Link™ Connector Camera Link™ Connector A Specification Type 26 Pin connector MDR female Mating Connector Part-Nr. connector 10126-6000EL Part-Nr. hood 10326-A200-00 Operating Mode Camera Link™ Base / Medium configuration Pinout Signal Name Direction Signal Description PoCL +12 Camera to FG Data...

  • Page 22: Camera Link™ Connector

    3 Hardware | 3.2.4 Camera Link™ Connector Camera Link™ Connector B Specification Type 26 Pin connector MDR female Mating Connector Part-Nr. connector 10126-6000EL Part-Nr. hood 10326-A200-00 Operating Mode Camera Link™ Medium configuration Pinout Signal Name Direction Signal Description PoCL +12 Camera to FG Data Camera to FG...

  • Page 23: Software Control

    4 Software Control | 4 Software Control 4.1 ConvCam 4 SVS-VISTEK supplies you with a Convenient Camera software What is ConvCam? control tool (called ConvCam) that allows you to control and set all parameters of the camera like; trigger mode, gain, offset, exposure, bin- ning, etc.

  • Page 24: Installation Of Convcam

    4 Software Control | 4.2 Installation of ConvCam The installation files for 64 bit applications are in the zipped folder “ConvCam4Setup64Vx.x”, the files for 32 bit applications are in “ConvCam4Setup32Vx.x” The 64 bit version runs only on 64 bit Windows. The 32 bit version is installable on 32 and 64 bit Windows.
  • Page 25 4 Software Control | select a folder, then click on “Next” Click “Next” to start the installation Confirm the installation of GeniCam by click on “NEXT” Confirm the GeniCam License by click on “i Agree”...
  • Page 26 4 Software Control | select a folder, then click on “Next” Click “Next” to start the installation Confirm the installation of GeniCam by click on “NEXT” Confirm the GeniCam License by click on “i Agree”...
  • Page 27 4 Software Control | installation is now complete, click on “Close” ConvCam is installed, you now will find the ConvCam Icon on your desktop: Double-click on Icon to start the program. The “Connection“ Folder Here you can establish the communication between the camera and the ConvCam4.exe application “Available Ports”:...
  • Page 28 4 Software Control | The “Device Control” Folder “Device Model Name”: Camera type name “Device ID”: Serial No. “Device Manufacturer Info”: Our company “Device Version”: Version no. of camera firmware “Pixel Frequency”: Different pixel frequencies are selectable Changing the pixel frequency affects the maximum frame rate, power consumption and signal to noise ratio of the camera: Higher frequency ->...
  • Page 29 4 Software Control | The “Acquisition Control” Folder “Acquisition Mode”: Select one of the five acquisition modes of the camera: None, Continuous, Software Triggered, Triggered with internal Exposure Control, Triggered with External (pulse width driven) Exposure Control “Trigger Software”: Will read one image only if camera is set to “Trigger Software”.
  • Page 30 4 Software Control | The “Analog Control” Folder ”Tap Selector“: Select the tap for the “Gain” and “Black Level” configuration: “TapAll”: gain and black level can be configu- red for all taps simultaneously. “Tap0”,”Tap1”,”Tap2”,”Tap3”: gain and black level can be adjusted for only one tap, useful for manual tap balancing.
  • Page 31 4 Software Control | The “Strobe Control” Folder “Exposure Delay” This numeric value represents the time between the (logical) positive edge of trigger pulse and start of integration time. Unit is 1µs. Default is 0µs. “Strobe Polarity” Select the polarity of the hardware strobe ouput DO1: “positive”...
  • Page 32 A click on the “Update” button opens a file dia- log where you can select a firmware file which is sent to the camera as firmware update. Don’t use without contacting SVS-ViSTEK support before! Updating with an improper file can damage your camera! The “Terminal”...
  • Page 33 4 Software Control | Protocol Baudrate: 115 K , 8 Databit, 1 Stopbit, no parity, no Handshake. When camera is powered on, the following message will be displayed.: “SVS4022MTLCPC 48”(or other sensor resp.) “<0x0d,0x0a>”...

  • Page 34: Note On Camera Link Software Dll

    For EURESYS ( usually C:\WINNT\system32\), “clseremc.dll” . • Set COM-Port to the appropriate number ( “1 “ for the first Camera Link connector , “2” for the second connector a.s.o. ). • Click on “ReadStatus”. If there is still a problem or you would like to receive the “ConvCam User Guide for Programmers” please contact SVS-VISTEK.

  • Page 35: Interfacing And Timing

    5 interfacing and Timing | 5 interfacing and Timing 5.1 Pixel- and Line-Timing 5.1.1 Basic Info: Free Running Free running with programmable exposure time. Frames are readout permanently and valid data is indicated by LVAL per line and FVAL by frame. There is no need to trigger the camera in order to get data. Exposure time is programmable via serial interface and calculated by the internal logic of the camera.

  • Page 36: Basic Info: Triggered Mode (Pulsewidth)

    5 interfacing and Timing | Mode 1: External Trigger with Pulse Width Exposure Control (non overlap) External Trigger 5.1.2 Basic Info: Triggered Mode (Pulsewidth) Exposure Time 1 Exposure Time 2 External trigger and pulsewidth controlled exposure time. In this mode the camera is waiting for an external trigger which starts inte- Frame 1 Frame 2 gration and read out.

  • Page 37: Basic Info: External Trigger (Exposure Time)

    5 interfacing and Timing | External Trigger with Programmable Exposure Time (non overlap) 5.1.3 Basic Info: External Trigger (Exposure Time) External trigger with programmable exposure time. In this mode the External Trigger with Pro- grammable Exposure Time camera is waiting for an external trigger which starts integration but exposure time is programmable via serial interface and calculated by External Trigger the internal microcontroller of the camera.

  • Page 38: Detailed Info Of External Trigger Mode

    5 interfacing and Timing | 5.1.4 Detailed Info of External Trigger Mode External Trigger with Pulse Width Exposure Control (overlap) Trigger Line VAL CCD Exposure Frame VAL Frame 0 Frame 1 T : Line Duration T : Transfer Delay T : Exposure Delay T : min.
  • Page 39 5 interfacing and Timing | External Trigger with Programmable Exposure Time (overlap) Trigger Line VAL CCD Exposure Frame VAL Frame 0 Frame 1 T : Line Duration T : Transfer Delay T : Exposure Delay T : min. Trigger External Trigger with Programmable Exposure Time (non overlap) Trigger CCD Exposure Serial Control Set...

  • Page 40: Table Of Line Durations, Delays And Pulse Width

    Line Durations, Transfer- and Exposure Delays, Pulse Width (@ 40 MHz) : Line Duration, : Transfer : Exposure : min. Trigger Camera Type Quad/DualX Tap [µs] DualY/Single Tap [µs] Delay [µs] Delay [µs] Pulse Width [µs] evo1050 17.40 30.95 7.50 1.18 2.00 evo2050 24.30 45.35 7.50 1.00...

  • Page 41: Basic Understanding Of Ccd Technology

    6 Basic understanding of CCD Technology 6 Basic understanding of CCD Technology 6.1 Read out from CCD In a single-tap CCD the read out of the pixel charges takes place in 1 Tap Readout of CCD series, pixel for pixel and line by line sequence. The maximum frame rate is determined by the pixel clock frequency and the total number of pixels that are transferred for readout.
  • Page 42 6 Basic understanding of CCD Technology In a quad-tap CCD (CCD with four outputs) the read out of the pixel Quad Tap Readout of CCD is four times faster than in a “normal” one. “Quad Tap Output” An image generated by a dual-tap CCD can have differing brightness Tap Balancing between the two image halves.

  • Page 43: Binning- And Decimation-Modes

    6 Basic understanding of CCD Technology 6.2 Binning- and Decimation-Modes All BW-14 Bit cameras support ”Vertical Binning“ (1/2 vertical reso- lution). In horizontal direction “Decimation” can be used: no binning The BW camera sends a DVAL signal with 1/2 pixel clock frequency. active When DVAL signal is enabled on the grabber only every second pixel in horizontal direction is grabbed.

  • Page 44: Cameras With Color Sensors

    6 Basic understanding of CCD Technology 6.3 Cameras with Color Sensors All color cameras are identical to the black and white versions. The Color Pixels are transferred in Series color pixels are transferred in series from the camera, same as the monochrome but to be considered as “raw”...

  • Page 45: Tap Geometry

    6 Basic understanding of CCD Technology 6.4 Tap Geometry Dual Operation (2 Tap) 2XE-1Y (GEN<i>CAM) Tap geometry 3 … … F VAL Line No. 3 … … L VAL left Column No. … … L VAL right Column No. W [px] Tap 0 Tap 1 NOTICE...

  • Page 46: Specifications

    7 Specifications | 7 Specifications 7.1 Basic Specifications 7.1.1 evo1050CFHCPC Basic electro-optic specifications evo1050CFHCPC Camera evo1050CFHCPC Chroma bayer (RGB) Resolution Active [Pixel] 1024 x 1024 Framerate [fps] Sensor KAI-01050-C Sensor Vendor Truesense Imaging (Kodak) Type Color Sensor Size H x V [mm] 5.64 x 5.64 Sensor Diagonal [mm] CCD Size Equivalent [inch]...

  • Page 47: Evo1050Mfhcpc

    7 Specifications | 7.1.2 evo1050MFHCPC Basic electro-optic specifications evo1050MFHCPC Camera evo1050MFHCPC Chroma mono Resolution Active [Pixel] 1024 x 1024 Framerate [fps] Sensor KAI-01050-A Sensor Vendor Truesense Imaging (Kodak) Monochrome Type Sensor Size H x V [mm] 5.64 x 5.64 Sensor Diagonal [mm] CCD Size Equivalent [inch] Pixel Size H x V [µm] 5.5 x 5.5...

  • Page 48: Evo2050Cfhcpc

    7 Specifications | 7.1.3 evo2050CFHCPC Basic electro-optic specifications evo2050CFHCPC Camera evo2050CFHCPC Chroma bayer (RGB) Resolution Active [Pixel] 1600 x 1200 Framerate [fps] Sensor KAI-02050-C Sensor Vendor Truesense Imaging (Kodak) Type Color Sensor Size H x V [mm] 8.8 x 6.6 Sensor Diagonal [mm] CCD Size Equivalent [inch] Pixel Size H x V [µm]...

  • Page 49: Evo2050Mfhcpc

    7 Specifications | 7.1.4 evo2050MFHCPC Basic electro-optic specifications evo2050MFHCPC Camera evo2050MFHCPC Chroma mono Resolution Active [Pixel] 1600 x 1200 Framerate [fps] Sensor KAI-02050-A Sensor Vendor Truesense Imaging (Kodak) Type Monochrome Sensor Size H x V [mm] 8.8 x 6.6 Sensor Diagonal [mm] CCD Size Equivalent [inch] Pixel Size H x V [µm] 5.5 x 5.5...

  • Page 50: Evo2150Cfhcpc

    7 Specifications | 7.1.5 evo2150CFHCPC Basic electro-optic specifications evo2150CFHCPC Camera evo2150CFHCPC Chroma bayer (RGB) Resolution Active [Pixel] 1920 x 1080 Framerate [fps] Sensor KAI-02150-C Sensor Vendor Truesense Imaging (Kodak) Type Color Sensor Size H x V [mm] 10.56 x 5.94 Sensor Diagonal [mm] 12.1 CCD Size Equivalent [inch]...

  • Page 51: Evo2150Mfhcpc

    7 Specifications | 7.1.6 evo2150MFHCPC Basic electro-optic specifications evo2150MFHCPC Camera evo2150MFHCPC Chroma bayer (RGB) Resolution Active [Pixel] 1920 x 1080 Framerate [fps] Sensor KAI-02150-C Sensor Vendor Truesense Imaging (Kodak) Type Color Sensor Size H x V [mm] 10.56 x 5.94 Sensor Diagonal [mm] 12.1 CCD Size Equivalent [inch]...

  • Page 52: Evo4050Cfhcpc

    7 Specifications | 7.1.7 evo4050CFHCPC Basic electro-optic specifications evo4050CFHCPC Camera evo4050CFHCPC Chroma bayer (RGB) Resolution Active [Pixel] 2336 x 1752 Framerate [fps] Sensor KAI-04050-C Sensor Vendor Truesense Imaging (Kodak) Type Color Sensor Size H x V [mm] 12.85 x 9.64 Sensor Diagonal [mm] 16.1 CCD Size Equivalent [inch]...

  • Page 53: Evo4050Mfhcpc

    7 Specifications | 7.1.8 evo4050MFHCPC Basic electro-optic specifications evo4050MFHCPC Camera evo4050MFHCPC Chroma mono Resolution Active [Pixel] 2336 x 1752 Framerate [fps] Sensor KAI-04050-A Sensor Vendor Truesense Imaging (Kodak) Type Monochrome Sensor Size H x V [mm] 12.85 x 9.64 Sensor Diagonal [mm] 16.1 0.5.

  • Page 54: Evo8050Cfhcpc

    7 Specifications | 7.1.9 evo8050CFHCPC Basic electro-optic specifications evo8050CFHCPC Camera evo8050CFHCPC Chroma bayer (RGB) Resolution Active [Pixel] 3296 x 2472 Framerate [fps] 26.8 Sensor KAI-08050-C Sensor Vendor Truesense Imaging (Kodak) Type Color Sensor Size H x V [mm] 18.13 x 13.6 Sensor Diagonal [mm] 22.7 CCD Size Equivalent [inch]...

  • Page 55: Evo8050Mfhcpc

    7 Specifications | 7.1.10 evo8050MFHCPC Basic electro-optic specifications evo8050MFHCPC Camera evo8050MFHCPC Chroma mono Resolution Active [Pixel] 3296 x 2472 Framerate [fps] 26.8 Sensor KAI-08050-A Sensor Vendor Truesense Imaging (Kodak) Type Monochrome Sensor Size H x V [mm] 18.13 x 13.6 Sensor Diagonal [mm] 22.7 0.5.

  • Page 56: Sensor Alignment Specification

    X/Y Position Center effective Sensor Area relative to Center of Lens Mount Camera Type +/- X / Y [mm]* +/- max. Rotation [°]* +/- Z [mm]** M,typ M,typ evo1050 0.15 0.02 evo2050 0.15 0.02 Sensor horizontal center line evo2150 0.15 0.02...

  • Page 57: Troubleshooting

    8 Troubleshooting | 8 Troubleshooting 8.1 FAQ Troubleshooting Problem Solution Camera does not respond to light. Check if camera is in Freerunning with serial exposure ctrl . When done, check with the pro- gram “Convenient Cam“ if you can read back any data from the camera like “Mode“, “type“ of CCD, exposure time settings and so on.

  • Page 58: Support Request Form / Check List

    8 Troubleshooting | Please fax this form to your local distributor. The right Fax number you can find on our homepage: http://www.svs-vistek.com/ 8.2 Support Request Form / Check List company/distributors/distributors.php Sender: ____________________________ Dear valued customer, Firm: ______________________________ In order to help you with your camera and any interfacing problems Tel.: _______________________ ________...

  • Page 59: Terms Of Warranty

    9 Terms of warranty | 9 Terms of warranty Seller warrants that the article to be delivered under this order will be free from defects Standard Products Warranty and Adjustment in material and workmanship under normal use and service for a period of 2 years from date of shipment.

  • Page 60: Index

    Index | index gain 16, 35 temperature 4 Trigger 29, 30, 33 Troubleshooting 50 interface 27, 28 Basic Specifications 39 binning 16, 36 Warranty 52 Binning 36 log file 51 LVDS 50 Camera Link 7, 27 Camera Order Code 6 offset 16 CCD 4, 34, 35, 37, 50 color 36, 37, 50...
  • Page 61 SVS-VISTEK GmbH 82229 Seefeld/Germany Tel. +49 - (0) 81 52 - 99 85 - 0, info@svs-vistek.com...

This manual is also suitable for:

Evo4050Evo8050Evo2050Evo2150
