SVS-Vistek svs11002 User Manual

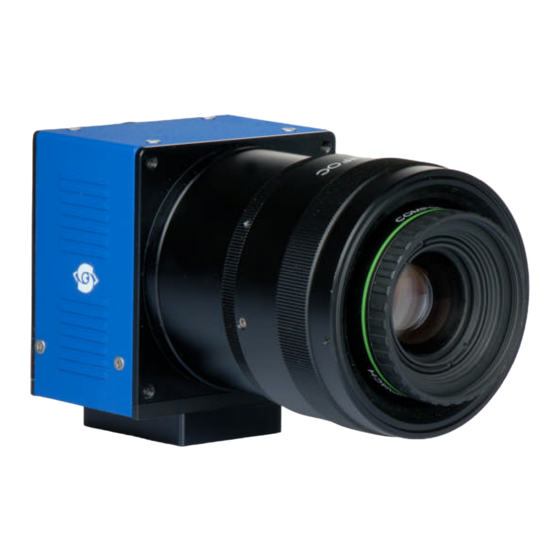

Svcam cameralink “hr” series digital progressive area scan camera
Hide thumbs Also See for svs11002:
Table of Contents

Advertisement

Quick Links

Download this manual
U
M
SERS
ANUAL
SVCam svs11002 and svs16000
CameraLink "HR" series
Digital Progressive Area Scan Camera
Version 2.2
Last Update 20.05.2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the svs11002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SVS-Vistek svs11002

Summary of Contents for SVS-Vistek svs11002

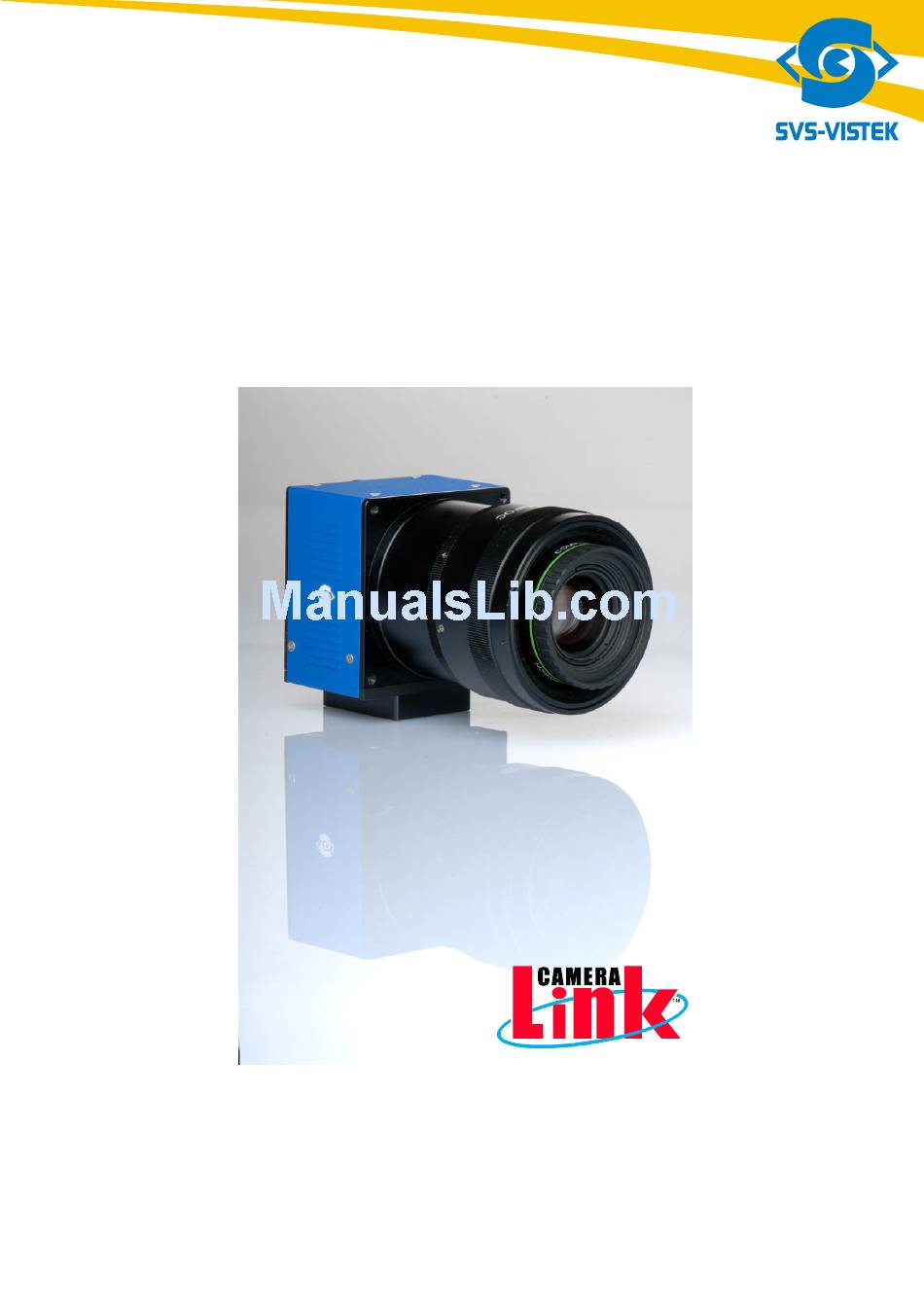

  • Page 1 SERS ANUAL SVCam svs11002 and svs16000 CameraLink “HR” series Digital Progressive Area Scan Camera Version 2.2 Last Update 20.05.2010...
  • Page 2 Users Manual Area Scan Cameras svs11002 and svs16000 Page 2...
  • Page 3 Contact: SVS-VISTEK GmbH Mühlbachstraße 20 82229 Seefeld Germany Tel. +49-(0)8152-99 85-0 www.svs-vistek.com Service Contact: E-Mail: service@svs-vistek.com Users Manual – svs11002 and svs16000 © SVS-VISTEK GmbH...

  • Page 4: Table Of Contents

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 4 Index Chapter 1 – Introduction … .................. Chapter 2 – Pin out and Installation ..............2.1. Unpacking ....................2.2. Power Supply ..................... 2.3. Trigger connector ..................2.4. CameraLink connector................2.5. Installation …………………………………………………………....

  • Page 5: Users Manual Area Scan Cameras Svs11002 And Svs16000

    Page 5 1. Introduction Thank you for purchasing a SVS-VISTEK product. SVS-VISTEK stands for reliable competence and customer oriented solutions in the field of professional machine vision systems. We believe that we are more than just a trade partner of machine vision components and we believe in sharing our years if development expertise with our customers.

  • Page 6: Chapter 2 - Pin Out And Installation

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 6 2.0 Pinout and Installation Warning The CCD camera is built with CMOS-LSI circuits. All internal electronics in the camera are sensitive to high voltage or electrostatic discharge. The camera can be destroyed if carelessly handled, so extreme care should be taken during set up and operation.

  • Page 7: Cameralink Connector

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 7 2.4 “CameraLink” Connector 26 Pin connector MDR female (3 M): Base configuration with RS 232 communication Name Direction Meaning X 0- Camera=>FG Data X 1- Camera=>FG Data X 2- Camera=>FG...

  • Page 8: Available Operation Modes

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 8 2.6 Available Modes of Operation General: All modes are set by the serial interface which connects via CameraLink standard cable. The default factory setting is free running using the internal microcontroller for exposure control: Mode 0.

  • Page 9: Ccd Sensor/2 Tap-1 Tap Output

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 9 Color: Up to 10 columns. Column may contain more than 10 pixel dead or out of PRNU. Class II is standard for color and exhibits in addition column defects KAI 16000M/C Cluster allowed.
  • Page 10 Users Manual Area Scan Cameras svs11002 and svs16000 Page 10 This page left blank...

  • Page 11: Interfacing/Use Of The "Convenient Cam" Program

    Already Dot Net on you PC or b) Make sure that a Internet connection is present during installation If you have a svs11002 camera it can still work with ConvCam 2.6. See older version of this manual. The “Connection“ Folder The “Set Port No”:...
  • Page 12 Users Manual Area Scan Cameras svs11002 and svs16000 Page 12 Port info: can display framegrabber port used (If supported by framegrabber manufacturer) The “Main Features” Folder The program will identify the used camera type (top). And S/N number (bottom) The ”Exposure time“ field Exposure time: the exposure time can be set in µsec.
  • Page 13 Users Manual Area Scan Cameras svs11002 and svs16000 Page 13 The “Gain” and “Offset“ field The default gain setting is “1.0”. You may change the gain up to factor 3.0 (or higher) in steps of 1/10 . Note that the dark offset will increase and dynamic range will not be improved! For good image quality do not increase gain more than factor 2, because the noise is also amplified.
  • Page 14 Users Manual Area Scan Cameras svs11002 and svs16000 Page 14 The “Frame Rate” field In “free running” mode (default ex factory) you can adjust the framerate.
  • Page 15 Users Manual Area Scan Cameras svs11002 and svs16000 Page 15 The “Save Restore” folder The “Reset Camera” button If you have troubles during configuration, you can set the last saved configuration clicking this button (you could also switch power off and on and also and click on “read status” again).
  • Page 16 Users Manual Area Scan Cameras svs11002 and svs16000 Page 16 The “Trigger Mode” folder “Free running”, Mode 0 At the first installation it should be mode 0 (factory default). This means the camera is free running with maximum frame rate and exposure time is controlled by the internal micro controller.
  • Page 17 Users Manual Area Scan Cameras svs11002 and svs16000 Page 17...
  • Page 18 Users Manual Area Scan Cameras svs11002 and svs16000 Page 18 The vertical (partial scan) and horizontal resolution Folders The “Binning” field: readout modes You can choose different resolutions No Binning: Full resolution: horizontal x 1, vertical x 1 (default setting) H 2 x V 2 x: Vertical 2 x and Horizontal 2 x at the same time: Resolution: horizontal x ½, vertical x ½...
  • Page 19 Users Manual Area Scan Cameras svs11002 and svs16000 Page 19 The Data Folder Save configuration to file Allows to “Save” different configurations and upload them with “Load” Create Log file Creates a log file in a directory (e.g. program/svs-vistek/convcam) It store all changes made to the camera during operation period.
  • Page 20 Users Manual Area Scan Cameras svs11002 and svs16000 Page 20 The Terminal Folder In case you want to make a serial connection to the camera via CameraLink you can type in the commands listed in Appendix C Of this manual.
  • Page 21 Users Manual Area Scan Cameras svs11002 and svs16000 Page 21 The 2nd exposure takes place without exposure time control (!). During the same time the 1 image is read out. The 2 exposure starts automatically 150 µs after the negative slope of Exsync signal and ends after the complete read out of the 1 image.
  • Page 22 Users Manual Area Scan Cameras svs11002 and svs16000 Page 22 PIV-MODE SVS16000XTLCPC SVS16000xTLCPC cameras have the possibility to do 2 images within a extreme short period of time. This can be done either in the mode „triggered with external exposure“(via pulse width of the Exync signal) or alternatively „triggered with internal exposure“( set via internal...

  • Page 23: Mechanical And Optical Issues

    PRNU at the first and last 500 pixel can be observed. Do not use lenses which are intended for 1“ CCDs. Views on svs11002 “S” and “F” Version (no heatsink) Distance from Chip surface to front plate: 11,65mm...
  • Page 24 Users Manual Area Scan Cameras svs11002 and svs16000 Page 24 Views on svs11002 “U” version only View on mounting side svs11002...
  • Page 25 Users Manual Area Scan Cameras svs11002 and svs16000 Page 25 Views on svs16000 “S” and “F” Version (no heatsink) Distance from Chip surface to front plate: 11,65mm MDR 26 female Connector Sync and Dataserial LVDS Power Connector: see Listing on 2.4.2...
  • Page 26 Users Manual Area Scan Cameras svs11002 and svs16000 Page 26 View on mounting side svs16000...

  • Page 27: Basic Electro Optical Characteristics Of Cameras

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 27 3.5 Basic electro-optic specifications svs11002 “U” version CCD KAI 11002 4032 x 2672 pixel pixel size 9 x 9 µm Interline Readout frequency 2 x 48 MHz (2 taps) Frame rate (max.) 7.5 fps...
  • Page 28 Users Manual Area Scan Cameras svs11002 and svs16000 Page 28 Basic specifications of camera svs11002 “S” version CCD KAI 11002 4032 x 2672 pixel pixel size 9 x 9 µm Interline Readout frequency 1 x 30 MHz (1 tap) Frame rate (max.) 2.5 fps...
  • Page 29 Users Manual Area Scan Cameras svs11002 and svs16000 Page 29 Basic specifications of camera svs11002 “L” version (12-Bit) CCD KAI 11002 4032 x 2672 pixel pixel size 9 x 9 µm Interline Readout frequency Up to2 x 48MHz (2 tap) Frame rate (max.)
  • Page 30 Users Manual Area Scan Cameras svs11002 and svs16000 Page 30 Basic electro-optic specifications svs16000 “F” version CCD KAI 16000 4904 x 3280 pixel pixel size 7,4 x 7,4 µm Interline Readout frequency 2 x 30 MHz (2 taps) Frame rate (max.)

  • Page 31: Environmental Tests

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 31 Basic electro-optic specifications svs16000 “L” version CCD KAI 16000 4904 x 3280 pixel pixel size 7,4 x 7,4 µm Interline Readout frequency Up to 2 x 48MHz (2 taps) Frame rate (max.)

  • Page 32: Spectral Response Curve

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 32 Operating temperature Spec.: -10 - +40°C. In order to keep dark current low. To achieve 8.5 optical bits, operation at 25° max. is recommended. Shock is tested about 30 g in 6 ms. Vibration test is 10 g in 6 ms.

  • Page 33: Comments On Camera Temperature

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 33 3.8 Comments on camera temperature Higher case temperature is noticed. There is no need to worry because camera has been tested at higher temperature than specified (40 °C). However some components inside like CCD, ADC, drivers are pushed to their limits.

  • Page 34: Comments On Color Version

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 34 3.9 Comments on COLOR Version If you have purchased a COLOR version of this camera, please note the following: In all electrical terms the camera is identical to the black and white versions. The output is parallel or CameraLink but the color pixel are transferred in series from the camera.

  • Page 35: Proven Interfacing To Framegrabber

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 35 4.0 Proven Interfacing to Framegrabbers These framegrabbers have been adapted to cameras mentioned in this manual successfully: svs11002 EURESYS: Grablink Value/Expert/Express DALSA/CORECO: PC-CamLink X64 CameraLink/X64 I-PRO NATIONAL INSTRUMENTS: 1426, 1428, 1429...

  • Page 36: Warranty Terms

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 36 4.1 Warranty Terms Standard products warranty and adjustment. Seller warrants that the article to be delivered under this order will be free from detects in material and workmanship under normal use and service for a period of TWO years from date of shipment.

  • Page 37: Appendix A - Troubleshooting

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 37 Appendix A – Troubleshooting Problem: Camera does not respond to light Solution: Please execute following steps Check if camera is in mode 0).Thus: Free running with serial exposure ctrl. When done, check with “Convenient Cam “program if you can read back any data from the...
  • Page 38 Users Manual Area Scan Cameras svs11002 and svs16000 Page 38 TROUBLESHOOTING REQUEST LIST V1.1 Dear valued customer, In order to help you with your camera and any interfacing problems we request that you fill in a description of your problems when you use the camera. Please fax this form to us: 1) Type of camera (e.g.

  • Page 39: Appendix B - Basic Pixel And Line Timing

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 39 Appendix B – Basic timing for different operation modes Notes: The fundamental signals are PVAL (STROBE), LVAL and FVAL, and in case of triggered modes, Exsync. Mode 0: Free running using RS 232 Interface A frame is readout automatically and the data are valid indicated by LVAL per line and FVAL by frame.
  • Page 40 Users Manual Area Scan Cameras svs11002 and svs16000 Page 40 • Freerunning Pixel Timing PCLK LVAL Pixel Invalid Pixel 1 Pixel 2 Pixel 3 Pixel N-2 Pixel N-1 Pixel N Line Timing LVAL FVAL Zeile Invalid Line 1 Line 2...

  • Page 41: Appendix C: Code Description For Serial Camera Control

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 41 Appendix C: Code Description for serial Camera Control This description is useful for those who need to integrate the camera control into an application and who cannot make use of the Convenient Cam program.
  • Page 42 Users Manual Area Scan Cameras svs11002 and svs16000 Page 42 “I<ENTER>“: out put of factory (default) data (like ser. # of product) KAI11002 Serial no.: 0527 Hardware version 1.0 Firmware version 1.0 Software version 1.0 Gain1: 007C ; factory setting gain tap 1(= gain factor 1.0) Gain2: 0077 ;...
  • Page 43 Users Manual Area Scan Cameras svs11002 and svs16000 Page 43 Following values are true: 0 x 00: free running mode, no binning 0 x 01: triggered mode, exposure time via external signal (Exsync), no binning 0 x 02: triggered mode, exposure time via Micro controller 0 x 03: reserved 0 x 04: free running mode, horizontal binning only;...

  • Page 44: Appendix D - For Cameralink Communication

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 44 Appendix D Note on CameraLink Software DLL: Serial (RS232) Interface to CameraLink Framegrabbers using CameraLink DLL: If Interface is made according to CameraLink standard: The software does not communicate via RS 232 port of the PC but via clser*.dll-Interface.

  • Page 45: Appendix E - Safety Instructions

    Users Manual Area Scan Cameras svs11002 and svs16000 Page 45 Appendix E Safety Instructions • This section contains important information for the operator (user) and/or people around him/her to avoid personal injuries, or property damages against him/her or people around him/her by using this product correctly.
  • Page 46 Users Manual Area Scan Cameras svs11002 and svs16000 Page 46 or an electric shock hazard. In that case, turn the power switch of the system components OFF immediately and remove the system power cables from the system components connectors. After that, contact us or our dealer/distributor from which you purchased the camera for repair service/technical advice.
  • Page 47 Users Manual Area Scan Cameras svs11002 and svs16000 Page 47  DANGER Do NOT use any optional unit other than manufacturer-supplied one. We disclaim any responsibility for damages or losses incurred by user due to the use of unauthorized/unofficial option units supplied by a third party RESTRICTION FOR USE In case malfunction of this equipment (e.g.
