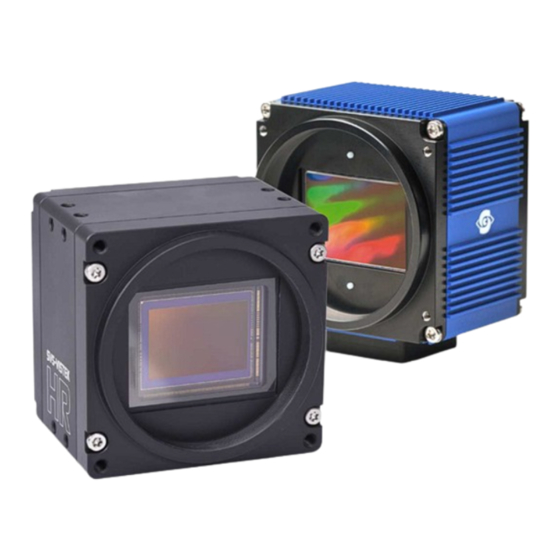

SVS-Vistek hr11002 Series User Manual

SVS-Vistek hr11002 Series User Manual

Gige / 10 gige

Advertisement

Manual HR GigE / 10 GigE
hr11002, hr16000, hr16050, hr16070, hr29050, hr16-5, hr
16-7, hr25, hr29, hr43, hr342, hr387
2.12.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the hr11002 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SVS-Vistek hr11002 Series

  • Page 1 Manual HR GigE / 10 GigE hr11002, hr16000, hr16050, hr16070, hr29050, hr16-5, hr 16-7, hr25, hr29, hr43, hr342, hr387 2.12.2019...
  • Page 2 The camera in your possession has been produced with great care and has been thoroughly tested. Nonetheless, in case of any complaint, please contact your local SVS-VISTEK distributor. You will find a list of distributors in your area on www.svs-vistek.com...
  • Page 3: Table Of Contents

    Content Content Legal Information ............. 6 Getting Started ............7 Contents of Camera Set ..........7 Single LED Status codes ..........7 Software ..............8 2.3.1 SVCapture 2..............8 2.3.2 Firmware updater ............9 2.3.3 GigE IP Setup ............. 10 Connectors ............
  • Page 4 Content 5.3.5 Strobe Control ............45 5.3.6 Sequencer ..............47 5.3.7 Optical Input .............. 52 5.3.8 PLC/Logical Operation on Inputs ......... 53 5.3.9 Serial data interfaces ........... 54 5.3.10 Trigger-Edge Sensitivity ..........56 5.3.11 Debouncing Trigger Signals ......... 56 5.3.12 Prescale ..............
  • Page 5 SVS-VISTEK–Legal Information Contents of Camera Set...
  • Page 6: Legal Information

    Customers, integrators and end users of SVS-Vistek products might sell these products and agree to do so at their own risk, as SVS-Vistek will not take any liability for any damage from improper use or sale.
  • Page 7: Getting Started

    SVS-VISTEK 2 Getting Started 2.1 Contents of Camera Set > Camera > Power supply (if ordered/option) > 3D CAD files (downloadable) > Manuals (downloadable) > Software: GigE-Kit (Win 32/64 & Linux) 2.2 Single LED Status codes On power up, the camera will indicate its current operation status with a flashing LED on its back.
  • Page 8: Software

    Generally, any GenICam based software package should be able to run a SVS-Vistek camera (GigE Vision, USB3, Camera Link). It is strongly recommended to uninstall the existing version of SVCam Kit or SVCapture before installing the new version.
  • Page 9: Firmware Updater

    Tool.exe” and the firmware file (download it from website, login area) matching your camera model. Execute firmware update > Download the GigE firmware tool and the firmware file from the SVS-Vistek website. > Unpack everything into any folder, e.g. “C:\temp” > Ensure proper network configuration >...
  • Page 10: Gige Ip Setup

    SVCapture. Automatic camera detection By default, SVS-Vistek GigE Vision cameras are trying to acquire a valid network address vie LLA or DHCP from the network. For finding and accessing your camera, start SVCapture on your computer.
  • Page 11 SVS-VISTEK S V IP C on f ig SVIPConfig allows to > Assign a new IP address (make sure the address is unique and that it is valid in the current subnet) > Save a specific address as a permanent address to the camera (Persistent) >...
  • Page 12: Connectors

    SVS-VISTEK 3 Connectors 3.1 Dual GigE Vision Any dual GigE camera can be run as well with a single network connection. Dual GigE connection is required only if single network connection does not provide sufficient bandwidth. For dual GigE operation, 2 NICs need to be teamed. NIC teaming is a feature of the operating system.
  • Page 13: Teaming Dual Gige

    SVS-VISTEK 3.1.1 Teaming Dual GigE For higher transfer rates on GigE, you might want to team 2 GigE ports together. The host computer requires 2 network interfaces or a dual NIC. The configuration below shows the configuration. Teaming is an operating system task. The data stream will use both (teamed) network interfaces at the same time with the maximum interface bandwidth each.
  • Page 14 SVS-VISTEK Choose Static Link Aggregation, next and finish. setting Static Link Aggregation (SLA) Jumbo Frames The transport efficiency in the streaming channel can be improved by using “jumbo frames”. This will reduce overhead caused by maintaining header data upon each data packet sent.
  • Page 15: Input / Output Connectors

    SVS-VISTEK 3.2 Input / output connectors Hirose™ 12Pin The Hirose connector provides the connectors to power, inputs and outputs. For detailed information about switching lights from inside the camera, refer to strobe control. Specification Type HR10A-10R-12P Mating Connector HR10A-10P-12S Connectors...
  • Page 16: The Hr Camera Series

    SVS-VISTEK 4 The HR Camera Series Focusing on details The SVCam HR series is a series of industrial machine vision cameras featuring especially on very high image resolutions and interface high speed without compromising on image quality. Camera sensors and interfaces are built to deliver maximum sensor and interface bandwidth.
  • Page 17 4IO adds Light and Functionality 4IO concept with up to 4 switching LED lights Your SVS-Vistek camera is equipped with the innovative 4IO-interface allowing full light control, replacing external strobe controllers. Each of the outputs can be individually configured and managed using pulse- width modulation.
  • Page 18: Feature Description

    SVS-VISTEK 5 Feature description This chapter covers features of SVCam cameras. Not every feature might be supported by your specific camera model. For information about the features of your specific model, please refer to the specifications area with your exact model.
  • Page 19: Acquisition And Processing Time

    SVS-VISTEK 5.1.4 Acquisition and Processing Time The camera has to read the sensor, process the data to a valid image and transfer this to the host computer. Some of these tasks are done in parallel. This implies the data transfer does not end immediately after end of exposure, as the image has to be processed and transferred after exposure.
  • Page 20: Color

    SVS-VISTEK 5.1.7 Color Color cameras are identical to the monochrome versions. The color pixels are transferred in sequence from the camera, in the same manner as the monochrome, but considered as “raw”-format. CCD with Bayer Pattern The camera sensor has a color mosaic filter called “Bayer” filter pattern named after the person who invented it.
  • Page 21: Resolution

    SVS-VISTEK 5.1.8 Resolution As mentioned in the specifications, there is a difference between the numerical sensor resolution and the camera resolution. Some pixels towards the borders of the sensor will be used only internally to calibrate sensor values (“dark pixels”). The amount of dark current in these areas is used to adjust the offset.
  • Page 22: Gain

    SVS-VISTEK 5.1.10 Gain Setting gain above 0 dB (default) is a way to boost the signal coming from the sensor. Especially useful for low light conditions. Setting gain amplifies the signal of individual or binned pixels before the ADC. Referring to photography adding gain corresponds to increasing ISO.
  • Page 23: Flip Image

    SVS-VISTEK 5.1.11 Flip Image Images can be mirrored horizontally or vertically. Image flip is done inside the memory of the camera, therefor not increasing the CPU load of the PC. original image horizontal flip vertical flip Feature description...
  • Page 24: Binning

    SVS-VISTEK 5.1.12 Binning Binning provides a way to enhance dynamic range, but at the cost of lower resolution. Binning combines electron charges from neighboring pixels directly on the chip, before readout. Binning is only used with monochrome CCD Sensors. For reducing resolution on color sensors refer to decimation.
  • Page 25 SVS-VISTEK 2×2 Binning A combination of horizontal and vertical binning. When DVAL signal is enabled only every third pixel in horizontal direction is grabbed. 2x2 binning Feature description...
  • Page 26: Decimation

    SVS-VISTEK 5.1.13 Decimation For reducing width or height of an image, decimation can be used. Columns or rows can be ignored. Refer to AOI for reducing data rate by reducing the region you are interested in. Horizontal decimation Vertical decimation...
  • Page 27: Burst Mode

    (as soon as there is enough time later on to deliver the images) (not applicable to USB cameras) Please note, as soon as the internal memory buffer is filled up, frames will be dropped. Due to this reason, SVS-Vistek camers provide up to 512MB image buffer memory. Feature description...
  • Page 28: Camera Features

    SVS-VISTEK 5.2 Camera Features 5.2.1 Basic Capture Modes Free Running Free running (fixed frequency) with programmable exposure time. Frames are readout continously and valid data is indicated by LVAL for each line and FVAL for the entire frame. There is no need to trigger the camera in order to get data. Exposure time is programmable via serial interface and calculated by the internal logic of the camera.
  • Page 29 At the rising edge of the trigger the camera will initiate the exposure. The software provided by SVS-Vistek allows the user to set exposure time e.g. from 60 μs 60 Sec (camera type dependent).
  • Page 30 SVS-VISTEK Exposure time can be changed during operation. No frame is distorted during switching time. If the configuration is saved to the EEPROM, the set exposure time will remain also when power is removed. Detailed Info of External Trigger Mode Dagrams below are aquivalent for CCD and CMOS technique.
  • Page 31: System Clock Frequency

    SVS-VISTEK 5.2.2 System Clock Frequency Default system clock frequency in almost every SVCam is set to 66.6 MHz. To validate your system frequency refer to: specifications. Using the system clock as reference of time, time settings can only be made in steps. In this example, the transfer rate is 66.7 MHz, thus resulting in steps of 15 ns.
  • Page 32: Lookup Table

    SVS-VISTEK 5.2.4 LookUp Table The LookUp Table Feature (LUT) lets the user define certain values to every bit value that comes from the ADC. To visualize a LUT a curve diagram can be used, similar to the diagrams used in photo editing software.
  • Page 33 SVS-VISTEK Gamma Correction Using the LookUp Table makes is also possible to implement a logarithmic correction. Commonly called Gamma Correction. Historically Gamma Correction was used to correct the illumination behavior of CRT displays, by compensating brightness-to-voltage with a Gamma value between 1,8 up to 2,55.
  • Page 34: Roi / Aoi

    SVS-VISTEK 5.2.5 ROI In Partial Scan or Area-Of-Interest or Region-Of-Interest (ROI) -mode only a certain region of the sensor will be read. AOI on a CCD sensor Selecting an AOI will reduce the number of horizontal lines being read. This will reduce the amount of data to be transferred, thus increasing the maximum speed in term of frames per second.
  • Page 35: Defect Pixel Correction

    (hot pixel) that always are outputting a bright signal. The amount of hot pixels is proportional to exposure time and temperature of the sensor. By default, all known defect pixels or clusters are corrected by SVS-VISTEK as a factory default. Under challenging conditions or high temperature environments defect pixel behaviour might change.
  • Page 36: Shading Correction

    SVS-VISTEK 5.2.7 Shading Correction The interactions between objects, illumination, and the camera lens might lead to a non-uniform flatfield in brightness. Shading describes the non- uniformity of brightness from one edge to the other or center towards edge(s). Figure 4: Original and shading corrected image...
  • Page 37: I/O Features

    The GenICam properties are organized as a tree. Manufacturers can add more features. With your SVCam, the GenICam tree does have some hardware related extensions, especially in the I/O sector. See the Quick guide install for a short introduction into SVS-Vistek’s GenICam tree. Feature description...
  • Page 38: Pwm

    SVS-VISTEK 5.3.2 PWM Pulse width modulation Description of the function used within the sequencer or implemented by the pulseloop module During Pulse Width Modulation, a duty cycle is modulated by a fixed frequency square wave. This describes the ratio of ON to OFF as duty factor or duty ratio.
  • Page 39 SVS-VISTEK P W M X A M P L E S O F Figure 5: 25% PWM load Figure 6: 50% PWM load The integrals over both periods are equal. An equal amount of Photons will be emitted. The intensity of light is the same.
  • Page 40: Driver Circuit Schematics

    SVS-VISTEK 5.3.3 Driver Circuit Schematics Camera power supply and power supply for PWM out is 25V max. Power for PWM out has to be supplied via Hirose connector. The open drain outputs are ledged to ground, that means you connect your LED on the positive side to your (light-)power source, the negative LED connector goes to the camera out.
  • Page 41: Assigning I/O Lines - Iomux

    EPROM. Default setting can be restored from within the Camera. Note: LineSelector translation If you connect the camera with a non- Line0 Output0 SVS-Vistek GigEVision client, you Line1 Output1 might not see the clearnames of the Line2 Output2 lines, but only line numbers. In this Line3...
  • Page 42 SVS-VISTEK Refer to pinout in input / output connectors when physically wiring. input vector to switch matrix name description io_in(0) trigger input 0 – 24 Volt / RS-232 / opto * io_in(1) trigger input 0 – 24 Volt / RS-232 / opto * io_in(2) trigger input 0 –...
  • Page 43 SVS-VISTEK output vector from switch matrix name / register describtion io_out(0) output open drain io_out(1) output open drain io_out(2) output open drain * io_out(3) output open drain * io_txd output, when debug='0' rxd_to_uart1 output (uart_in) trigger output sequenzer_hw_trigger input to module iomux_sequenzer_0...
  • Page 44 SVS-VISTEK Example of an IOMUX configuration > The trigger signal comes in on line 0 > Debounce it. connect line 0 to 8: 1000000000000000000000000 signal appears again on line 15 – debouncer out > Use the prescaler to act only on every second pulse.
  • Page 45: Strobe Control

    SVS-VISTEK 5.3.5 Strobe Control The SVCam 4I/O concept contains an integrated strobe controller. Its controls are integrated into the GenICam tree. With LED lights attached to the outputs, this enables the user to control the light without external devices. Being controlled via GenICam, any GenICam-compliant 3 party software is able to control the light as well.
  • Page 46 SVS-VISTEK L E D s in F l as h M o de Most LED lights can cope with currents higher than specs. This gives you higher light output when light is ON. Please refer to your LED specs if LED overdrive is permitted.
  • Page 47: Sequencer

    SVS-VISTEK 5.3.6 Sequencer The sequencer is used when different exposure settings and illuminations are needed in a row. Values to set Description Sequencer interval Duration of the interval Exposure delay after interval start Exposure start Exposure stop related to interval Start...
  • Page 48 SVS-VISTEK Notes Different exposure / strobe timings are used for illustration. In most cases they will show values same as exposure The resulting exposure time shows the period of sensor light exposure. (‘’masking’’ of exposure time by creating strobe light impulses shorter than exposure time).
  • Page 49 SVS-VISTEK As being said before, all these values have to be entered into the camera’s GenICam tree as tic values. The timing values translate like this into tics: Values to set in GenICam Interval 0 (RED) Interval 1 (GREEN) Interval 2 (BLUE) Interval 3 (WHITE)
  • Page 50 SVS-VISTEK Sequencer setup with SVCapture Starting with SVCapture 2.5.2, there is a sequencer assistant, providing easy setup of the sequencer settings. The assistant will help you to setup timings for start exposure and lighting and so on. The PWMs are connected to the physical outputs (e.g.
  • Page 51 SVS-VISTEK will reflect as following: Feature description...
  • Page 52: Optical Input

    If your camera trigger is in the ms range or slower, we recommend to use the optical input. An optical input needs some current for operation. The SVS-Vistek optical input is specified to 5-24V, 8mA. The opto coupler galvanically separates electrical circuits by emitting light on one side and interpreting light in the other.
  • Page 53: Plc/Logical Operation On Inputs

    SVS-VISTEK 5.3.8 PLC/Logical Operation on Inputs The logic input combines trigger signals with Boolean algorithms. The camera provides AND, NAND, OR, NOR as below. You might combine combine true/false states of the inputs to determine camera actions. The result can be connected to a camera trigger signal or it may be source for the next logical operation with another input.
  • Page 54: Serial Data Interfaces

    SVS-VISTEK 5.3.9 Serial data interfaces (ANSI EIA/) TIA-232-F RS-232 and RS-422 (from EIA, read as Radio Sector or commonly as Recommended Standard) are technical standards to specify electrical characteristics of digital signaling circuits. In the SVCam’s these signals are used to send low-power data signals to control light or lenses (MFT).
  • Page 55 SVS-VISTEK UART Packaging Data into containers (adding start and stop bits) is implemented by the UART (Universal Asynchronous Receiver Transmitter) Figure 11: UART encoding of a data stream RS-422 RS-422 is a differential low voltage communication standard. Figure 12: LVDS signal – no return to zero volt...
  • Page 56: Trigger-Edge Sensitivity

    SVS-VISTEK 5.3.10 Trigger-Edge Sensitivity Trigger-Edge Sensitivity is implemented by a “schmitt trigger”. Instead of triggering to a certain value Schmitt trigger provides a threshold. Schmitt trigger noise suppression 5.3.11 Debouncing Trigger Signals Bounces or glitches caused by a switch can be avoided by software within the SVCam.
  • Page 57 SVS-VISTEK Therefor the signal will not be accepted till it lasts at least a certain time. Use the IO Assignment tool to place and enable the debouncer module in between the “trigger” (schmitt trigger) and the input source (e.g.: line DebouncDuration register can be set in multiples of 15ns (implement of system clock).
  • Page 58: Prescale

    SVS-VISTEK 5.3.12 Prescale The Prescaler function can be used for masking off input pulses by applying a divisor with a 4-bit word, resulting in 16 unique settings. > Reducing count of interpreted trigger signal > Use the prescaler to ignore a certain count of trigger signals.
  • Page 59: Specifications

    SVS-VISTEK Specifications All specifications can be viewed as well on our website, www.svs- vistek.com. We are proud to have ongoing development on our cameras, so specs might change and new features being added. Spectral response curves are sensor only and do not include camera spectral response modifications due to filters or cover glass.
  • Page 60: Hr11002*Tlgec

    SVS-VISTEK 6.1 hr11002*TLGEC Model hr11002MTLGEC hr11002CTLGEC family active pixel w x h 4032 x 2672 4032 x 2672 max. frame rate 6.5 fps 6.5 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-11002-A KAI-11002-C sensor manufacturer...
  • Page 61 SVS-VISTEK outputs open drain optical in / out - / - - / - RS-232 in / out 1 / 1 1 / 1 RS-422 in / out 1 / 1 1 / 1 power supply 10...25 V 10...25 V lens mount M58x0.75...
  • Page 62 SVS-VISTEK Spectral Sensitivity Characteristics Spectral Sensitivity Characteristics KAI-11002-C Spectral Sensitivity Characteristics KAI-11002-A Specifications...
  • Page 63: Hr16000*Tlgec

    SVS-VISTEK 6.2 hr16000*TLGEC Model hr16000MTLGEC hr16000CTLGEC family active pixel w x h 4896 x 3248 4896 x 3248 max. frame rate 4 fps 4 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-16000-A KAI-16000-C sensor manufacturer...
  • Page 64 SVS-VISTEK PWM power out trigger IN TTL-24 V outputs open drain optical in / out - / - - / - RS-232 in / out 1 / 1 1 / 1 RS-422 in / out 1 / 1 1 / 1 power supply 10...25 V...
  • Page 65 SVS-VISTEK Spectral Sensitivity Characteristics Figure 13: Spectral Sensitivity Characteristics KAI-16000-C Figure 14: Spectral Sensitivity Characteristics KAI-16000-A Specifications...
  • Page 66: Hr16050*Flgea

    SVS-VISTEK 6.3 hr16050*FLGEA Model hr16050MFLGEA hr16050CFLGEA family active pixel w x h 4896 x 3264 4896 x 3264 max. frame rate 10 fps 10.8 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-16050-A KAI-16050-C sensor manufacturer...
  • Page 67 SVS-VISTEK PWM power out trigger IN TTL-24 V outputs open drain optical in / out - / - - / - RS-232 in / out 1 / 1 1 / 1 RS-422 in / out 1 / 1 1 / 1 power supply 10...25 V...
  • Page 68: Hr16050*Flgec

    SVS-VISTEK 6.4 hr16050*FLGEC Model hr16050MFLGEC hr16050CFLGEC family active pixel w x h 4896 x 3264 4896 x 3264 max. frame rate 8 fps 8 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-16050-A KAI-16050-C sensor manufacturer...
  • Page 69 SVS-VISTEK PWM power out trigger IN TTL-24 V outputs open drain optical in / out - / - - / - RS-232 in / out 1 / 1 1 / 1 RS-422 in / out 1 / 1 1 / 1 power supply 10...25 V...
  • Page 70 SVS-VISTEK Spectral Sensitivity Characteristics Figure 15 Spectral Sensitivity Characteristics KAI-16050-A Figure 16: Spectral Sensitivity Characteristics KAI-16050-C Specifications...
  • Page 71: Hr16070*Flgea

    SVS-VISTEK 6.5 hr16070*FLGEA Model hr16070MFLGEA hr16070CFLGEA family active pixel w x h 4864 x 3232 4864 x 3232 max. frame rate 11 fps 11 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-16070-A KAI-16070-C sensor manufacturer...
  • Page 72 SVS-VISTEK PWM power out trigger IN TTL-24 V outputs open drain optical in / out - / - - / - RS-232 in / out 1 / 1 1 / 1 RS-422 in / out 1 / 1 1 / 1 power supply 10...25 V...
  • Page 73: Hr16070*Flgec

    SVS-VISTEK 6.6 hr16070*FLGEC Model hr16070MFLGEC hr16070CFLGEC family active pixel w x h 4864 x 3232 4864 x 3232 max. frame rate 8.8 fps 8.8 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-16070-A KAI-16070-C sensor manufacturer...
  • Page 74 SVS-VISTEK PWM power out trigger IN TTL-24 V outputs open drain optical in / out - / - - / - RS-232 in / out 1 / 1 1 / 1 RS-422 in / out 1 / 1 1 / 1 power supply 10...25 V...
  • Page 75 SVS-VISTEK Spectral Sensitivity Characteristics Figure 17: Spectral Sensitivity Characteristics KAI-16070-C Figure 18: Spectral Sensitivity Characteristics KAI-16070-C Specifications...
  • Page 76: Hr29050*Flgea

    SVS-VISTEK 6.7 hr29050*FLGEA Model hr29050MFLGEA hr29050CFLGEA family active pixel w x h 6576 x 4384 6576 x 4384 max. frame rate 6.2 fps 6.2 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-29050-A KAI-29050-C sensor manufacturer...
  • Page 77 SVS-VISTEK PWM power out trigger IN TTL-24 V outputs open drain optical in / out - / - - / - RS-232 in / out 1 / 1 1 / 1 RS-422 in / out 1 / 1 1 / 1 power supply 10...25 V...
  • Page 78: Hr29050*Flgec

    SVS-VISTEK 6.8 hr29050*FLGEC Model hr29050MFLGEC hr29050CFLGEC family active pixel w x h 6576 x 4384 6576 x 4384 max. frame rate 4.9 fps 4.9 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-29050-A KAI-29050-C sensor manufacturer...
  • Page 79 SVS-VISTEK PWM power out trigger IN TTL-24 V outputs open drain optical in / out - / - - / - RS-232 in / out 1 / 1 1 / 1 RS-422 in / out 1 / 1 1 / 1 power supply 10...25 V...
  • Page 80 SVS-VISTEK Spectral Sensitivity Characteristics Figure 19: Spectral Sensitivity Characteristics KAI-29050-C Figure 20: Spectral Sensitivity Characteristics KAI-29050-A Specifications...
  • Page 81: Hr16*Ge-5

    SVS-VISTEK 6.9 hr16*GE-5 Model hr16MGE-5 hr16CGE-5 family active pixel w x h 4896 x 3264 4896 x 3264 max. frame rate 8 fps 8 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-16050-A KAI-16050-C sensor manufacturer...
  • Page 82 320 g protection class IP40 IP40 power consumption 10.0 W 10.0 W ambient temperature -10...45°C -10...45°C humidity non- condensing 0…0 % 0…0 % status production production (1) please refer to drawings © SVS-VISTEK February 12, 2019 February 12, 2019 Specifications...
  • Page 83: Hr16*Ge-7

    SVS-VISTEK 6.10 hr16*GE-7 Model hr16MGE-7 hr16CGE-7 family active pixel w x h 4864 x 3232 4864 x 3232 max. frame rate 8.8 fps 8.8 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-16070-A KAI-16070-C sensor manufacturer...
  • Page 84 320 g protection class IP40 IP40 power consumption 10.0 W 10.0 W ambient temperature -10...45°C -10...45°C humidity non- condensing 0…0 % 0…0 % status production production (1) please refer to drawings © SVS-VISTEK February 12, 2019 February 12, 2019 Specifications...
  • Page 85: Hr25*Xge

    SVS-VISTEK 6.11 hr25*XGE Model hr25MXGE hr25CXGE family active pixel w x h 5120 x 5120 5120 x 5120 max. frame rate 42 fps 42 fps chroma mono color interface 10 GigE Vision 10 GigE Vision sensor name NOIP1SN025KA-GDI NOIP1SE025KA-GDI sensor manufacturer...
  • Page 86 320 g protection class IP30 IP30 power consumption 10.0 W 10.0 W ambient temperature -10...45°C -10...45°C humidity non- condensing 0…0 % 0…0 % status production production (1) please refer to drawings © SVS-VISTEK February 12, 2019 February 12, 2019 Specifications...
  • Page 87 SVS-VISTEK Spectral Sensitivity Characteristics Figure 21: Spectral Sensitivity Characteristics NOIP1SN025KA Figure 22: Spectral Sensitivity Characteristics NOIP1SE025KA Specifications...
  • Page 88: Hr29*Ge

    SVS-VISTEK 6.12 hr29*GE Model hr29MGE hr29CGE family active pixel w x h 6576 x 4384 6576 x 4384 max. frame rate 4.9 fps 4.9 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-29050-A KAI-29050-C sensor manufacturer...
  • Page 89 320 g protection class IP40 IP40 power consumption 10.0 W 10.0 W ambient temperature -10...45°C -10...45°C humidity non- condensing 0…0 % 0…0 % status production production (1) please refer to drawings © SVS-VISTEK February 12, 2019 February 12, 2019 Specifications...
  • Page 90: Hr43*Xge

    SVS-VISTEK 6.13 hr43*XGE Model hr43MXGE hr43CXGE family active pixel w x h 8040 x 5360 8040 x 5360 max. frame rate 4 fps 4 fps chroma mono color interface 10 GigE Vision 10 GigE Vision sensor name KAI-43140-AXA-JD KAI-43140-FXA-JD sensor manufacturer...
  • Page 91 320 g protection class IP30 IP30 power consumption 0.0 W 0.0 W ambient temperature -10...45°C -10...45°C humidity non- condensing 0…0 % 0…0 % status production production (1) please refer to drawings © SVS-VISTEK February 12, 2019 February 12, 2019 Specifications...
  • Page 92: Hr342*Xge

    SVS-VISTEK 6.14 hr342*XGE Model hr342MXGE hr342CXGE family active pixel w x h 6464 x 4852 6464 x 4852 max. frame rate 26.8 fps 26.8 fps chroma mono color interface 10 GigE Vision 10 GigE Vision sensor name IMX342LLA IMX342LQA sensor manufacturer...
  • Page 93 320 g protection class IP30 IP30 power consumption 0.0 W 0.0 W ambient temperature -10...45°C -10...45°C humidity non- condensing 0…0 % 0…0 % status production production (1) please refer to drawings © SVS-VISTEK February 12, 2019 February 12, 2019 Specifications...
  • Page 94: Hr387*Xge

    SVS-VISTEK 6.15 hr387*XGE Model hr387MXGE hr387CXGE family active pixel w x h 5456 x 3076 5456 x 3076 max. frame rate 33.4 fps 33.4 fps chroma mono color interface 10 GigE Vision 10 GigE Vision sensor name IMX387LLA IMX387LQA sensor manufacturer...
  • Page 95 320 g protection class IP30 IP30 power consumption 0.0 W 0.0 W ambient temperature -10...45°C -10...45°C humidity non- condensing 0…0 % 0…0 % status production production (1) please refer to drawings © SVS-VISTEK February 12, 2019 February 12, 2019 Specifications...
  • Page 96: Dimensions

    SVS-VISTEK 7 Dimensions All length units in mm. Find drawings in the web download area at https://www.svs-vistek.com/en/support/svs-support-download-center.php CAD step files available with valid login at SVS-VISTEK.com 7.1 hr 11002, 16000, 16050, 16070, 29050 GE Including: hr11002CTLGEC, hr11002MTLGEC, hr16000CTLGEC, hr16000MTLGEC, hr16050CFLGEA, hr16050CFLGEC,...
  • Page 97 SVS-VISTEK Dimensions...
  • Page 98 SVS-VISTEK Dimensions...
  • Page 99: Hr43*Xge

    SVS-VISTEK 7.2 hr43*XGE Dimensions...
  • Page 100 SVS-VISTEK Dimensions...
  • Page 101 SVS-VISTEK Dimensions...
  • Page 102: Hr342*Xge

    SVS-VISTEK 7.3 hr342*XGE Dimensions...
  • Page 103 SVS-VISTEK Dimensions...
  • Page 104 SVS-VISTEK Dimensions...
  • Page 105: Hr342*Xge

    SVS-VISTEK 7.4 hr342*XGE Dimensions...
  • Page 106 SVS-VISTEK Dimensions...
  • Page 107 SVS-VISTEK Dimensions...
  • Page 108: Hr16-5*Ge, Hr16-7*Ge

    SVS-VISTEK 7.5 hr16-5*GE, hr16-7*GE Dimensions...
  • Page 109 SVS-VISTEK Dimensions...
  • Page 110 SVS-VISTEK Dimensions...
  • Page 111: Hr29*Ge

    SVS-VISTEK 7.6 hr29*GE Dimensions...
  • Page 112 SVS-VISTEK Dimensions...
  • Page 113 SVS-VISTEK Dimensions...
  • Page 114: Hr25*Xge

    SVS-VISTEK 7.7 hr25*XGE Dimensions...
  • Page 115 SVS-VISTEK Dimensions...
  • Page 116 SVS-VISTEK Dimensions...
  • Page 117: M58 Mount

    SVS-VISTEK M58 mount Diameter 58 mm Thread pitch 0.75 mm Back focus distance from sensor to flange of the camera: 11.48 mm Distance from sensor surface to lens differs depending on lens specifications and how far the lens is screwed in.
  • Page 118: Terms Of Warranty

    SVS-VISTEK 8 Terms of warranty Seller warrants that the article to be delivered under this order will be free from Standard Products Warranty and defects in material and workmanship under normal use and service for a period Adjustment of 2 years from date of shipment. The liability of Seller under this warranty is limited solely to replacing or repairing or issuing credit (at the discretion of Seller) for such products that become defective during the warranty period.
  • Page 119: Faq

    SVS-VISTEK 9 FAQ Problem Solution Camera does not respond to light. Check if camera is set to “Mode 0“. I.e. free running with programmed exposure ctrl. When done, check with the program “Convenient Cam“ if you can read back any data from the camera, such as “Mode“, “type“ of CCD, exposure time settings, etc..
  • Page 120: Glossary Of Terms

    SVS-VISTEK 10 Glossary of Terms Spherical aberration occurs when light rays enter near the edge of the lens; Aberration Chromatic aberration is caused by different refractive indexes of different wavelengths of the light. (Blue is more refractive than red) Analogue-to-Digital Converter, also known as A/D converter In optics, Aperture defines a hole or an opening through which light travels.
  • Page 121 A camera RAW image file contains minimally processed data from the image sensor. It is referred as raw in its meaning. SVS-VISTEK plays out RAW only. Read-Out control defines a delay between exposure and image readout. It...
  • Page 122 SVS-VISTEK A bright light source with a very short light pulse. Ideal for use with Strobe light industrial cameras, e.g. for “freezing” the image capture of fast moving objects. Can often be a substitute for the electronic shutter of the image sensor.
