Tyco Electronics AMP 1804018-1 Installation Sheet

PROPER USE GUI ELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations may be available.
Nest
(Upper) Jaw
Anvil
(Lower) Jaw
IE ASSEMBLY CRIMP TOOLING
PRO-CR MPER Hand Tool Frame
354940-1
1804018-1
SDE PEW 12 Hand Tool Frame
9-1478240-0
1. INTRO UCTION
Die Assembly 1804018–1 is designed to crimp a
variety of Expanded Beam Crimp Rings and products
listed in the table in Figure 1. This die assembly will fit
into the following tools: PRO–CRIMPER* III Hand
Tool Frame 354940–1 (Instruction Sheet 408– 9930);
or SDE PEW 12 Hand Tool Frame 9–1478240–0
(Instruction Sheet 408–8851).
imensions in this instruction sheet are in
NOTE
millimeters [with inches in brackets]. Figures are
for reference only, and are not drawn to scale.
2005 Tyco Electronics Corporation, Harrisburg, PA
All nternational Rights Reserved
AMP and Tyco are trademarks. *Trademark
Other products, logos, and company names used are the property of their respective owners.

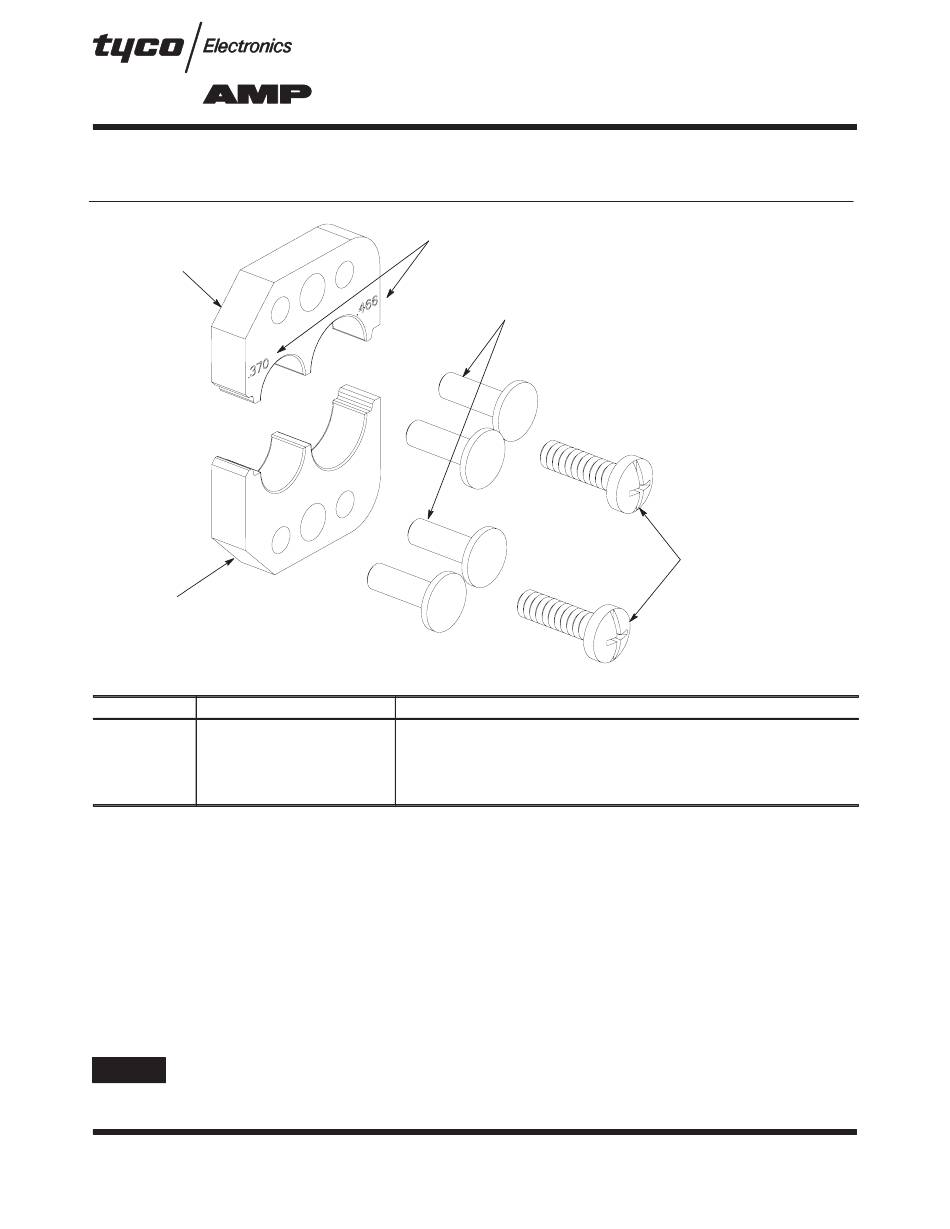

ie Assembly
1804018-1
Cable Size
Marking
or
Figure 1
TOOL NG ASS STANCE CENTER 1-800-722-1111
PRODUCT NFORMAT ON 1-800-522-6752
Pins (4)
(Part Number 679231-1)
PRO UCT PART NUMBERS
1754518-1 thru -12
1754519-1 thru -12
1754520-1 thru -12
1828413-1
2. ESCRIPTION
This die assembly has two crimp sections which are
marked to identify the cable sizes used with the
products listed in the table in Figure 1. The cable
sizes are 9.40 and 11.84 [.370 and .466].
3. IE INSTALLATION
1. Close the tool handles until the ratchet releases,
then allow the handles to open FULLY.
2. Insert the upper die into the stationary jaw.
Thread, but do not tighten, a die retention screw
through the hole in the jaw so that the die is held in
place.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
408-10022 nstruction Sheet
08 JUN 05 Rev A
Screws (2)
(Part Number 986964-4)
1
of 2
