Cleanfix Sparrow Safety, Operation & Maintenance Manual page 8

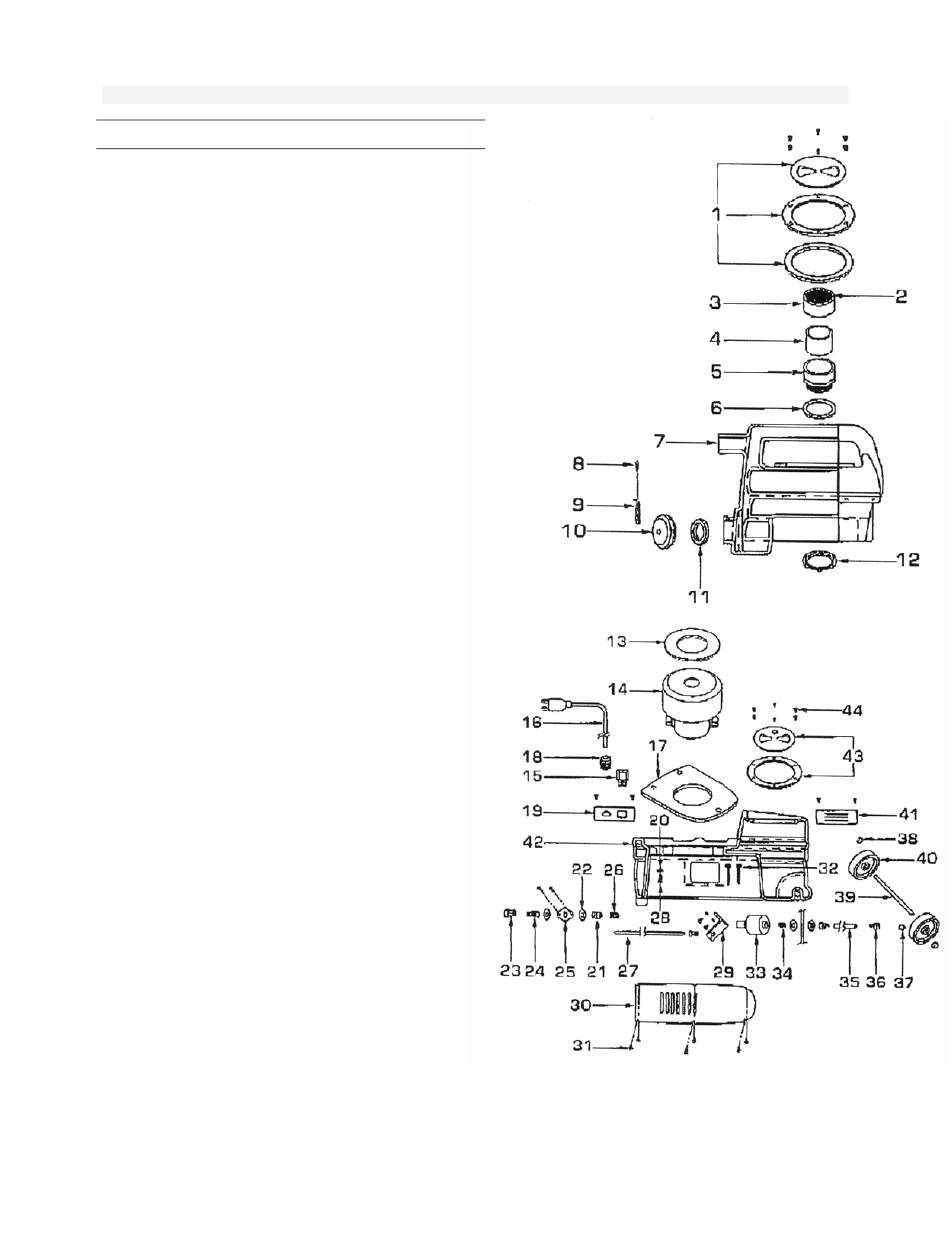

PARTS LIST
Pos. Description
1 Vacuum Tank Lid
Assembly
2 1.88 Foam Filter
3 1 ½ Mesh Screen
4 1 ½ ABS Sleeve
5 PVC 1 ½ MT x FMSt
6 1 ½ ID Thin Gasket
7 Recovery Tank
8 Tether
9 Adaptor Strap
10 2" Threaded Cap
11 Cap Gasket
12 1 ½ Locknut
13 Vacuum Gasket
14 115 V, Vacuum Motor
15 Rocker Switch
16 25ft., 16/3 Power
Cord
17 Water Shield Gasket
18 Strain Relief
19 Switch Plate
20 ¼ " Flat Washer
21 ¼ " Coupler
22 3/16 " x 1" Washer
23 ¼ " FM Quick
Disconnect
24 ¼ " x 1/8 " Nipple
25 QD Retaining Plate
26 ¼ " x 1/8 " FMT Push
in
27 8" Nylon Tubing
28 ¼ " x 1 " Bolt
29 Pump Bracket
30 Bottom Plate
31 10-32 x ½ " Screw
32 ¼ " -20 x 2" Bolt
33 115V, 55psi Pump
34 1/8 " Hex Nipple
35 ¼ " x 5 ½ Vinyl Tube
36 ¼ " x 1/8 " PMT Hose
Barb
37 Filter Strainer
38 5/16 Axle Cap
39 5/16 " x 9" Axle
40 3" Wheel
41 Vent Cover
42 Solution Tank
43 Solution Tank Lid
44 #8 x ½ " Oval HD
Screw
Safety, Operation and Maintenance Manual for Spotter; Version 1.2
Qty. Ref.
1 355.049
1 355.072
2 355.073
1 355.074
1 355.074
1 355.063
1 355.100
1 355.152
1 355.054
1 355.330
2 355.331
1 355.001
1 355.062
1 355.210
1 355.076
1 355.151
1 355.064
1 355.005
1 355.039
3 355.002
1 355.004
4 355.003
1 355.017F
1 355.006
1 355.040
2 355.007
1 355.200
1 355.008
1 355.041
1 355.042
10 355.009
2 355.010
1 355.191
1 355.011
1 355.201
2 355.202
1 355.012
2 355.331
1 355.286
2 355.150
1 355.218
1 355.101
1 355.065
8 355.013
8
