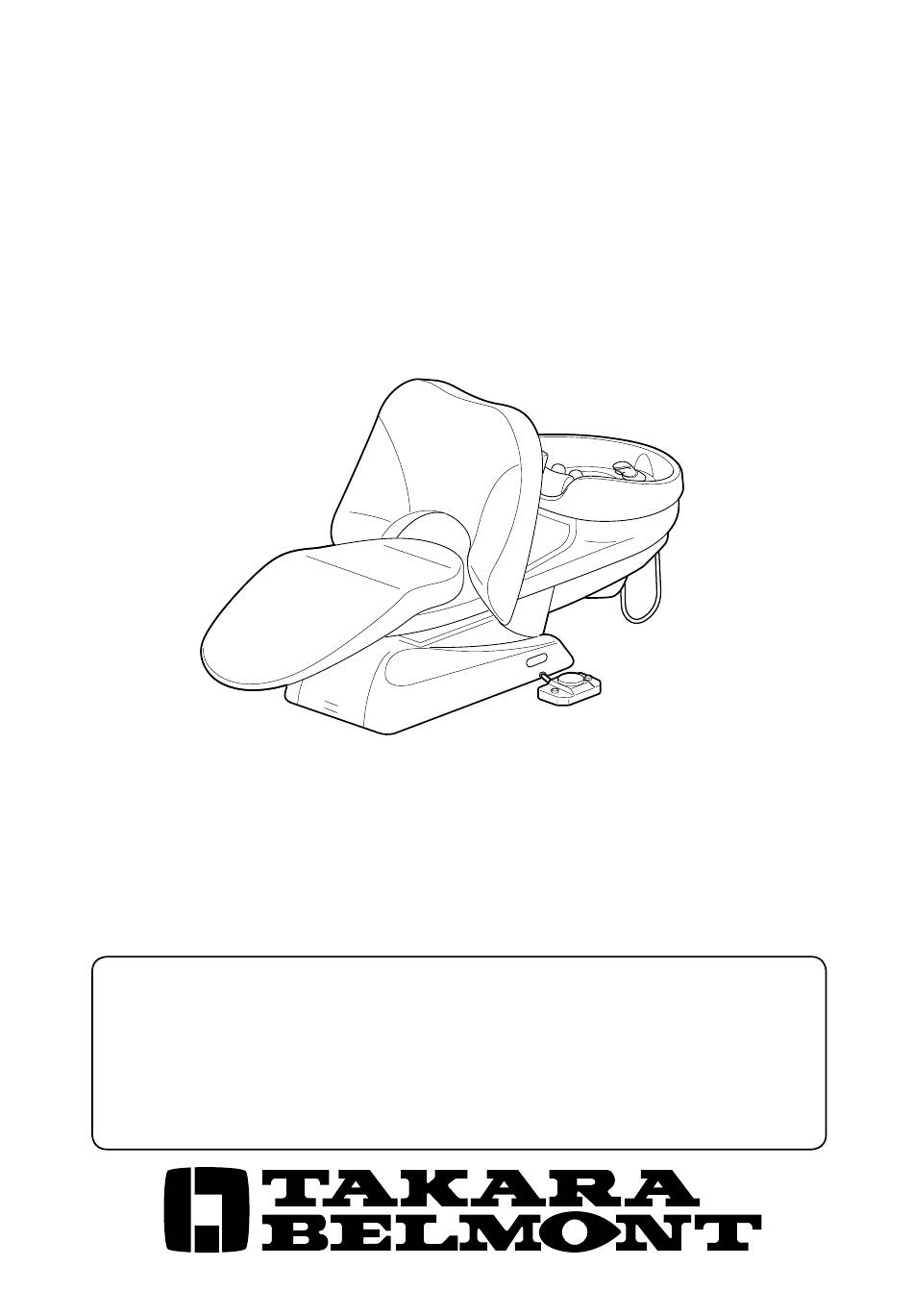

SHAMPOO UNIT
This manual provides information and instructions for YUME SHAMPOO
UNIT. The instructions contained in this booklet should be thoroughly read
and understood before attempting to install the equipment.
After the installation is completed, file this manual and refer back to it
for future maintenance.
YUME
IMPORTANT
IE00G8A0
INSTALLATION
INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YUME and is the answer not in the manual?

Questions and answers

Summary of Contents for Takara Belmont YUME

  • Page 1 INSTALLATION INSTRUCTIONS IMPORTANT This manual provides information and instructions for YUME SHAMPOO UNIT. The instructions contained in this booklet should be thoroughly read and understood before attempting to install the equipment. After the installation is completed, file this manual and refer back to it for future maintenance.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS INSTALLATION INSTRUCTIONS 1. Overall View and Major Components ... 1 2. Dimension & Specifications ......2 3. Plumbing Layout ........... 3 4. Contents of Unpacked Products ....4 5. Installation Instruction........5 5-1. Preparations for Installations ...... 5 5-2.
  • Page 3: Overall View And Major Components

    1. Overall View and Major Components ■Body Backrest Shampoo basin Seat  Maintenance cover Main switch Foot switch Neck cushion (Consumable) Head pillow (Consumable) Temperature control knob Body cover Shower head Noise reduction tape (inside cover) Shower hose Vacuum Breaker Safety lock cover ■Foot switch ...
  • Page 4: Dimension & Specifications

    2. Dimension & Specifications Line for Edge of Base Plate Water Supply Hot Water Supply Drain Pipe Wall Wall Center of Drain Pipe 600 (Base Plate) 1270 Min.630(Sitting Position)  Min.215 Min.430(Standing Position)   1965 Min.2980(Sitting Position) / Min.2780(Standing Position) Type ------------------------------ EX-YML, EX-YMR, SU-YM Drive System -------------------- Motorized Hydraulic System Measurement -------------------- 760 x 1985 x 975 mm (W x L x H) Angle of Bracket ---------------- 59°...
  • Page 5: Plumbing Layout

    3. Plumbing Layout Metric (Imperial)...
  • Page 6: Contents Of Unpacked Products

    4. Contents of Unpacked Product •   YUME Main Body •   Carriage Jig • Jig A • Jig B Support Bar ・Screws • Jig B • Jig B Bracket •   Seat and Backrest set ・Seat C ushion  ・Seat C over(R) ・Seat C over(L)
  • Page 7: Installation Instruction

    5. Installation Instruction 5-1. Preparations for Installations 1. Unpacking Remove nails from lower part of wooden crate. Lift up the upper potion of wooden crate. Chair will be left on the skid. Nails Nails 2. Remove the pump cover. 1. Remove the screws and remove maintenance cover, base cover left and right from main body.
  • Page 8: Marking For Unit Fixing Position

    5-3. Marking for unit fixing position Use supplied full scale template to mark the Marking fixing position on the floor. Check the piping and power outlet position before marking. Water Supply Pipe 1. Put the supplied templete on the floor and hold with the tape etc.
  • Page 9 2. Hold the carriage jig and move the main unit to marked position on the floor. 3. Decide the installation position and remove the   carriage jig A and B from main unit base.   CAUTION Carriage Jig B Hold the Jig A and B to lift the unit by Carriage Jig A 2 workers to move it.
  • Page 10: Drain Pipe Connection

    5-6. Drain Pipe Connection Drain pipe(VU40) Elbow and drain pipe(VU40) are not included Drain Hose Packing with shipment. Please prepare it beforehand. Stepped Section Insert the drain hose packing 1. Insert the elbow to the drain pipe from floor with seals. to the drain pipe(VU40) until the stepped section hit to the end of drain pipe(VU40).
  • Page 11: Unit Power Supply Line

    5-8. Unit Power Supply Line Power Supply Cable 1. Fix the plug on the end of the unit power supply cable. Plug the unit power supply plug into the suitable Power Supply Outlet   power supply outlet. CAUTION This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
  • Page 12: Attach The Backrest And Seat Cushion

      5-10. Attach the backrest and seat cushion 1. Fix the seat cushion with six cap bolts(M5×15) 2. Fix the seat cover L & R with screws. 4. Backrest Cushion Attach the backrest cushion 3. Keep depressing backrest raising button vertical to the backrest frame.
  • Page 13: Attach The Neck Cushion

    5-11. Attach the Neck Cushion Neck Cushion 1. Attach the neck cushion on metal fittings Hook as shown in figure. Fixed Pin Metal Fitting 2. Both side hooks of the neck cushion is fixed on a fixed pin. Hook Hook 5-12.
  • Page 14 NOTE TAKARA BELMONT U.S.A., INC. 101 Belmont Dr., Somerset, NJ 08873 TEL. : Toll Free (866) 4 TAKARA (866-482-5272) TELEFAX : 732-469-9430...
