Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information What’s Included Specifications Main Power Connection DMX-512 Connection Size and Weight Main Control Menu Parts List DMX Profile Rigging the Fixture Cleaning & Maintenance Warranty Customer Support... -
Page 2: Safety Information

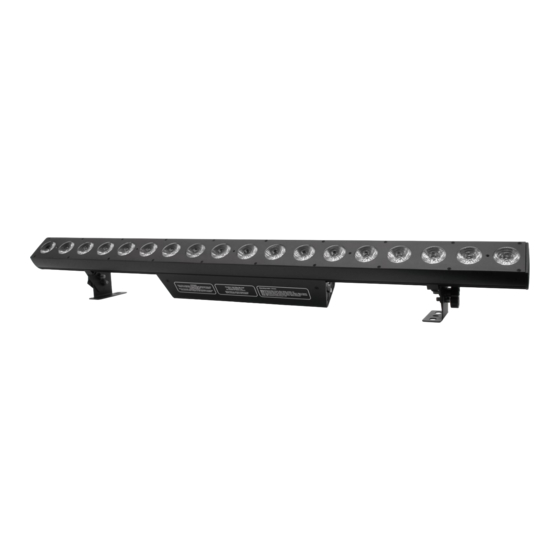

2. Use quality clamps or bolts when positioning unit 3. Do not open unit while it is on, risk of electrical shock. What is Included 1pc N-E Pixstrip H216 Fixture 1pc Power Conn Type to Nema 5-15 Cable 1pc 10M Eye Bolt for Safety Connection... -
Page 3: Specifications
Specifications Part Numbers Road Case Fixture 4055-N-E Pixstrip H216 CAS-4055-4 Unit Road Case Specifications LED: Qty 18 12Watt LED LED Color: Red, Green, Blue, White, Amber, UV Lumen Output: 5490lm All Emitters DMX Connectors: Panel Mounted 3 & 5-pin XLR connectors in/out... -
Page 4: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 240V automatically This unit must be earthed. (electronically grounded) Power Link 10 units max at 110V and 20 units at 220V The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 90V to 264V from 50Hz to 60Hz Cable (USA) -
Page 5: Size And Weight
Size and Weight (Adjustable) Size 39.76" X 3.94" X 5.28" Weight 10lb Packaged 41" X 5.5" X 7" 11.5lb... -
Page 6: Main Control Menu
Main Control Menu CONTROL BOARD The control board on the fixture is your interface to access and control all the functions on the unit. Its digital display gives you a code view of the options and functions. The following will explain each function and its options. -
Page 7: Parts List
Auto Mode Select from 0-29 and speed 0-9 . Press Enter to confirm the settings. Color Select from 64 preset colors . Press Enter to confirm the settings. Manual Manually adjust variable light output from the 6 color options . Press Enter to confirm the settings. Display Invert Display. -
Page 8: Dmx Profile
DMX Profile 6 Ch Mode DMX Channel Function Description Value LED Color Red LED Intensity 000-255 LED Color Green LED Intensity 000-255 LED Color Blue LED Intensity 000-255 LED Color White LED Intensity 000-255 LED Color Amber LED Intensity 000-255 LED Color UV LED Intensity 000-255... - Page 9 108 Ch Mode DMX Channel Function Description Value LED Color 1 Red LED Intensity 000-255 LED Color 1 Green LED Intensity 000-255 LED Color 1 Blue LED Intensity 000-255 LED Color 1 White LED Intensity 000-255 LED Color 1 Amber LED Intensity 000-255 LED Color 1 UV LED Intensity...
- Page 10 LED Color 9 White LED Intensity 000-255 LED Color 9 Amber LED Intensity 000-255 LED Color 9 UV LED Intensity 000-255 LED Color 10 Red LED Intensity 000-255 LED Color 10 Green LED Intensity 000-255 LED Color 10 Blue LED Intensity 000-255 LED Color 10 White LED Intensity...
-
Page 11: Rigging The Fixture
Rigging the Fixture Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injuries if you have doubts concerning the safety do not install. 3. Unit is to be 24inches away from flammable materials (decoration material) 4. -
Page 13: Customer Support
Customer Support Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob- lem. Please visit our website for any other related technical documents. For service related issue please contact our service dept.
