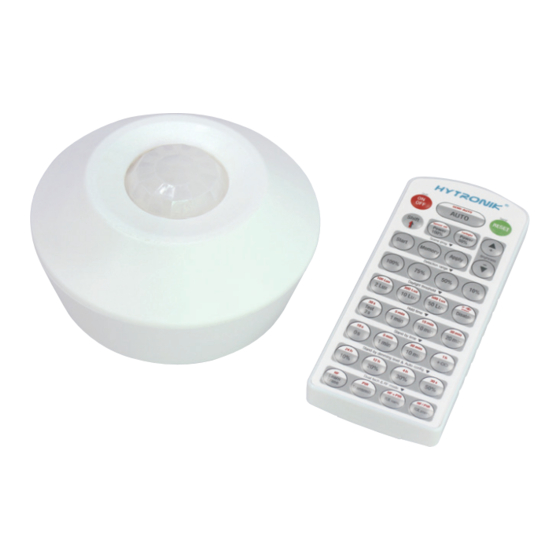

Stand-alone Dual Sense Motion Sensor
HIM16
HF and PIR, trailing edge sensor with daylight harvest

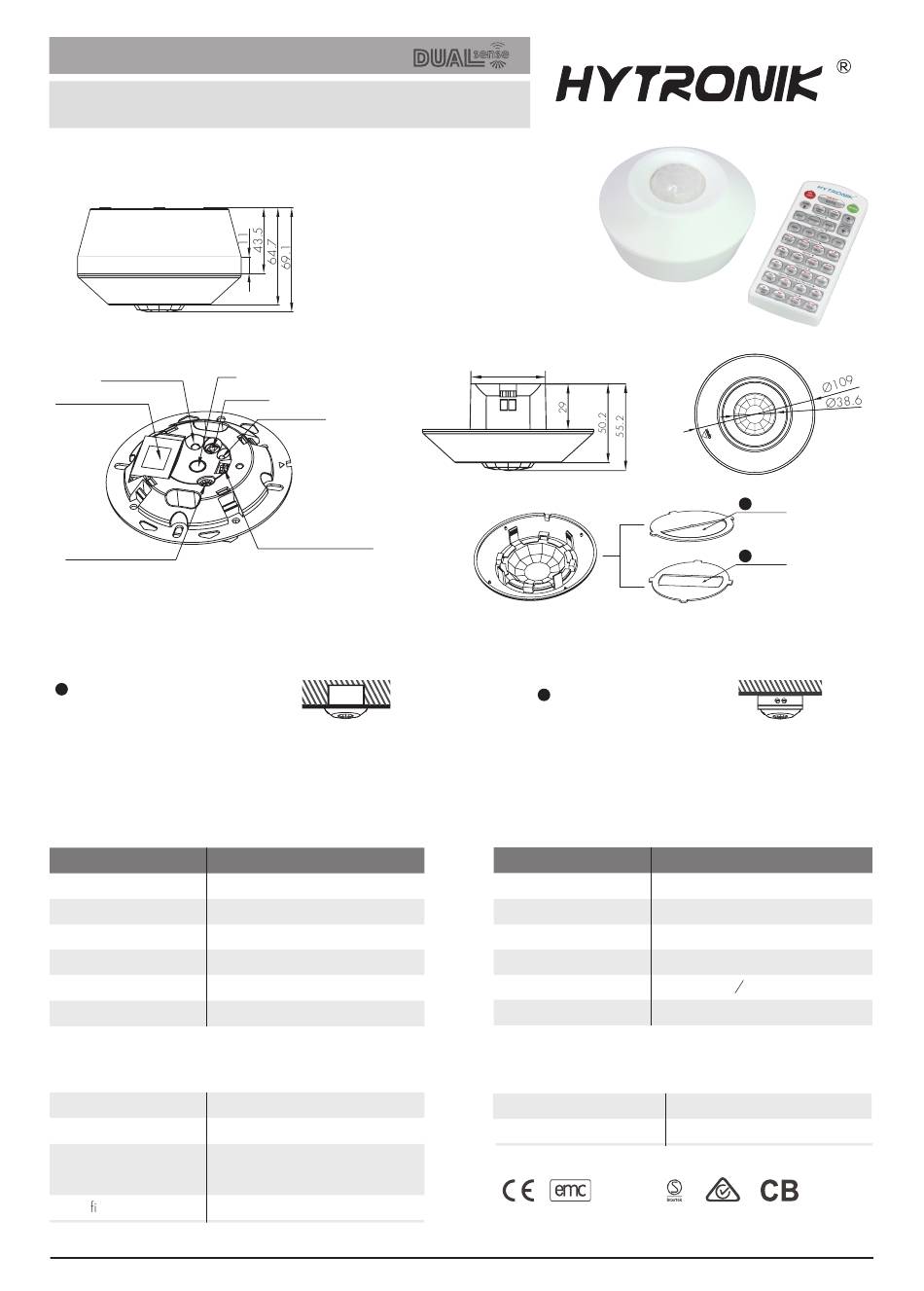

Mechanical Structure
C - Surface box
B - Facia Cover
PIR
Infrared receiver
Photocell
HF Sensor module
A - Control Board
Installation:
For more details, please refer to user manual.
Direct junction "J" box mounting
1
Note:We recommend the mounting distance between sensor to sensor should be more than 2m to prevent sensors
from false-triggering.
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
Trailing edge driver
100W@120V; 150W@220 -277V
Resistive
120W@120V; 200W@220 -277V
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certi cation
Subject to change without notice.
LED indicator
Sensor mode selection
HIM16
120~277VAC 50/60Hz
<1W
30s
EN55015, EN61000
EN60669, AS/NZS60669
EN300440, EN301489-1,
EN62479
Semko, CB, CE , EMC, RED, RCM
TM
56
Note: the blinds are optional, they may be inserted
behind the lens for focussing the detection range.
Surface mount assembly
2
Sensor Data
Model No.
Sensor principle
Operation frequency
Transmission power
Sensor mode
Detection angle
Environment
Operation temperature
IP rating
RED
Edition: 26 Feb. 2020
A
Blind
B
Blind
HIM16
High Frequency (microwave), PIR
5.8GHz +/- 75MHz (HF)
<0.2mW (HF)
4 modes: PIR, HF, PIR+HF, PIR/HF
Max. ( O x H) 12m x 6m
O
360
O
O
Ta: -20
C ~ +55
C
IP20
IP20
Ver. A0
Page 1/6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hytronik HIM16
Summary of Contents for Hytronik HIM16
- Page 1 Stand-alone Dual Sense Motion Sensor HIM16 HF and PIR, trailing edge sensor with daylight harvest Mechanical Structure C - Surface box B - Facia Cover Infrared receiver Photocell HF Sensor module LED indicator Blind Sensor mode selection Rotary switch preset...
- Page 2 Dual Sense Introduction It’s commonly known Microwave and Infrared are main detecting technologies in lighting controls. Both have the advantage and disadvantage for industrial applications. Advantage Advantage * sensitive to minor motion. * no penetration, con ned detection area. * sensitive to radial movement. * sensitive to tangential movement.
- Page 3 Double L N terminal makes it easy for wire loop-in and loop-out, and saves the cost of terminal block and assembly time. Wiring Diagram Trailing edge dimmable driver PUSH L’ HIM16 Trailing edge dimmable driver Subject to change without notice. Edition: 26 Feb. 2020 Ver. A0...
- Page 4 Settings (Remote Control HRC-11) Permanent ON/OFF function Press button “ON/OFF” to select permanent ON or permanent OFF mode. * Press button “AUTO”, “RESET” to quit this mode. The mode will change to AUTO Mode after power failure. Reset Settings Press button “RESET”, all settings go back to rotary switch settings. Sensor detection mode returns to DIP switch settings.
- Page 5 Stand-by time (corridor function) Press buttons in zone “stand-by time” to set the stand-by period at 0s / 10s / 1min / 5min / 10min / 30min / 1h / +∞. Note: “0s” means on/off control; “+∞” means bi-level control, the xture is 100% on when there is motion detected, and remains at the stand-by dimming level when no presence after motion hold-time.
- Page 6 Additional Information / Documents 1. Regarding precautions for microwave sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors - Precautions for Product Installation and Operation 2. Regarding precautions for PIR sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors - Precautions for Product Installation and Operation...
