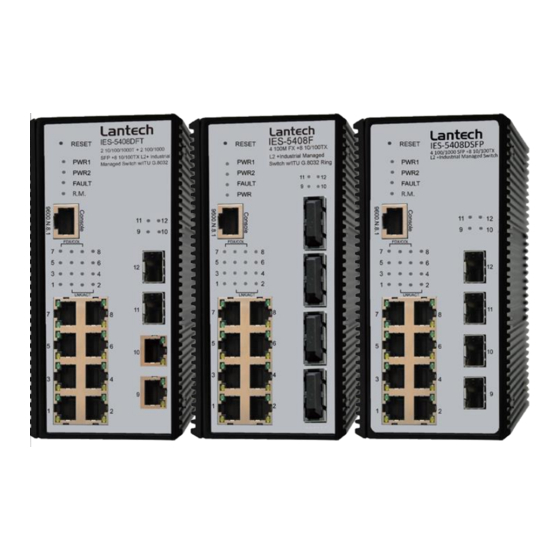

- Page 1 I(P)ES-3XXX I(P)ES-5XXX IP30-rated Series IP30-rated DIN Rail L2 Industrial Managed Switch User Manual (Hardware) *For 19-inch rack-mount models, please refer to hardware manual with specific model name. Oct. 2022...
- Page 2 Recommendation for Shielded network cables STP cables have additional shielding material that is used to reduce external interference. The shield also reduces the emission at any point in the path of the cable. Our recommendation is to deploy an STP network cable in demanding electrical environments. Examples of demanding indoor environments are where the network cable is located in parallel with electrical mains supply cables or where large inductive loads such as motors or contactors are in close vicinity to the camera or its cable.
- Page 3 Lantech Communications Global Inc. Products offered may contain software which is proprietary to Lantech Communications Global Inc. The offer or supply of these products and services does not include or infer any transfer of ownership.
- Page 4 FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
-
Page 5: Table Of Contents
Content Chapter 1 Hardware Features ......... 5 Chapter 2 Hardware Description ......5 IP Protection ........... 5 LED Indicators..........8 Chapter 3 Hardware Installation ......10 3.1. Hardware installation........10 DIN-Rail Mounting ........12 Wall Mount Plate Mounting ......14 Wiring the Power Inputs ....... -
Page 6: Chapter 1 Hardware Features
Chapter 1 Hardware Features Lantech 3000/5000 series industrial Ethernet switch is a high performance L2+ Ethernet switch that provides advanced security function for network aggregation deployment. *For detail specifications, please refer to product datasheet. Chapter 2 Hardware Description In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling information, and wiring installation. - Page 7 with a body part >12.5 mm Fingers or similar objects >2.5 mm Tools, thick wires, etc. >1 mm Most wires, screws, etc. Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the Dust protected satisfactory operation of the equipment;...
- Page 8 the vertical shall have no minute harmful effect. Pressure: 80–100 kPa Splashing Water splashing against Test duration: 5 minutes of water the enclosure from any Water volume: 10 litres per direction shall have no minute harmful effect. Pressure: 80–100 kPa Water jets Water projected by a Test duration: at least...
-
Page 9: Led Indicators
that the equipment is hermetically sealed. However, with certain types of equipment, it can mean that water can enter but only in such a manner that it produces no harmful effects. — Powerful Protected against close- high range high pressure, high temperature temperature spray downs. - Page 10 The port is transmitting or receiving packets Blinking from the TX device. No device attached PoE FWD The port is not operating in PoE mode. (For PoE The port is operating in PoE mode. model) A network device is detected. The port is transmitting or receiving packets Blinking SFP Port...
-
Page 11: Chapter 3 Hardware Installation
For POE models: Do not use units’ POE ports to uplink to another POE switch in vehicle applications. (May Cause Damage) Lantech strongly advise the installation of a Galvanic isolated DC/DC converter between the power supply and the Ethernet switch on all Non-Isolated models. - Page 12 the Industrial switch will light up when the cable is connected with the network device. Please refer to the LED Indicators section for LED light indication. [NOTE] Make sure that the connected network devices support MDI/MDI-X. If it does not support, use the crossover category-5 cable.
-
Page 13: Din-Rail Mounting
3.2 DIN-Rail Mounting The DIN-Rail is screwed on the industrial switch when out of factory. If the DIN-Rail is not screwed on the industrial switch, please see the following pictures to screw the DIN- Rail on the switch. Follow the steps below to hang the industrial switch. - Page 14 First, insert the top of DIN-Rail into the track. Then, lightly push the DIN-Rail into the track. Check if the DIN-Rail is tightened on the track or not. To remove the industrial switch from the track, reverse above steps.
-
Page 15: Wall Mount Plate Mounting
3.3 Wall Mount Plate Mounting Follow the steps below to mount the industrial switch with wall mount plate. 1. Remove the DIN-Rail from the industrial switch; loose the screws to remove the DIN- Rail. 2. Place the wall mount plate on the rear panel of the industrial switch. 3. -
Page 16: Wiring The Power Inputs
3.4 Wiring the Power Inputs Note: Please check the power connector has been connected to the switch correctly before you turn on the power resource. 3.4.1. For 12V / 24V / 48V models Please follow the steps below to insert the power wire. 1. -
Page 17: For Hv Models
3.4.2. For HV models Using DC power Insert DC power wires into the contacts 5 with negative electrode of power and, 6 with positive electrode of power, the HV models are single power design. Tighten the wire- clamp screws for preventing the wires from loosing. Using AC power AC power resource has no polarity so the power input of switch can be connected with the wires either way round. -
Page 18: Wiring The Fault Alarm Contact
3.5 Wiring the Fault Alarm Contact The fault alarm contacts are in the middle of the terminal block connector as the picture shows below. Inserting the wires, the switch will detect the fault status of the power failure, or port link failure (available for managed model) and then forms an open circuit. The following illustration shows an application example for wiring the fault alarm contacts. -
Page 19: Wiring The Dido
3.6 Wiring the DIDO In case of event, the switch being able to send an email to pre-defined addresses as well as SNMP Traps out immediately. It provides 2DI and 2DO (DI=Digital input / DO=Digital output). When disconnection of the specific port was detected; DO will activate the signal LED to alarm. -
Page 20: Cabling
3.7 Cabling Use four twisted-pair, Category 5e or above cabling for RJ-45 port connection. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. Fiber segment using single-mode connector type must use9/125 µm single- mode fiber cable. - Page 21 Transceiver to the SFP module Transceiver Inserted Second, insert the fiber cable of LC connector into the transceiver.
- Page 22 LC connector to the transceiver...
- Page 23 To remove the LC connector from the transceiver, please follow the steps shown below: First, press the upper side of the LC connector to release from the transceiver and pull it out. Remove LC connector Second, push down the metal loop and pull the transceiver out by the plastic handle. Pull out from the transceiver...
-
Page 24: Chapter 4 Console Management
Chapter 4 Console Management 4.1. Connecting to the Console Port The supplied cable which one end is RS-232 connector and the other end is RJ-45 connector. Attach the end of RS-232 connector to PC or terminal and the other end of RJ-45 connector to the console port of the switch. -
Page 25: Login In The Console Interface
4.2. Login in the Console Interface When the connection between Switch and PC is ready, turn on the PC and run a terminal emulation program or Hyper Terminal and configure its communication parameters to match the following default characteristics of the console port: Baud Rate:115200 bps Data Bits: 8 Parity: none... - Page 26 Console login interface ===============Notice=============== For web-based management, please refer to our “Software Management Manual”. Please contact support@lantechcom.tw for more information.
