Field Controls CUV Series Manual page 16

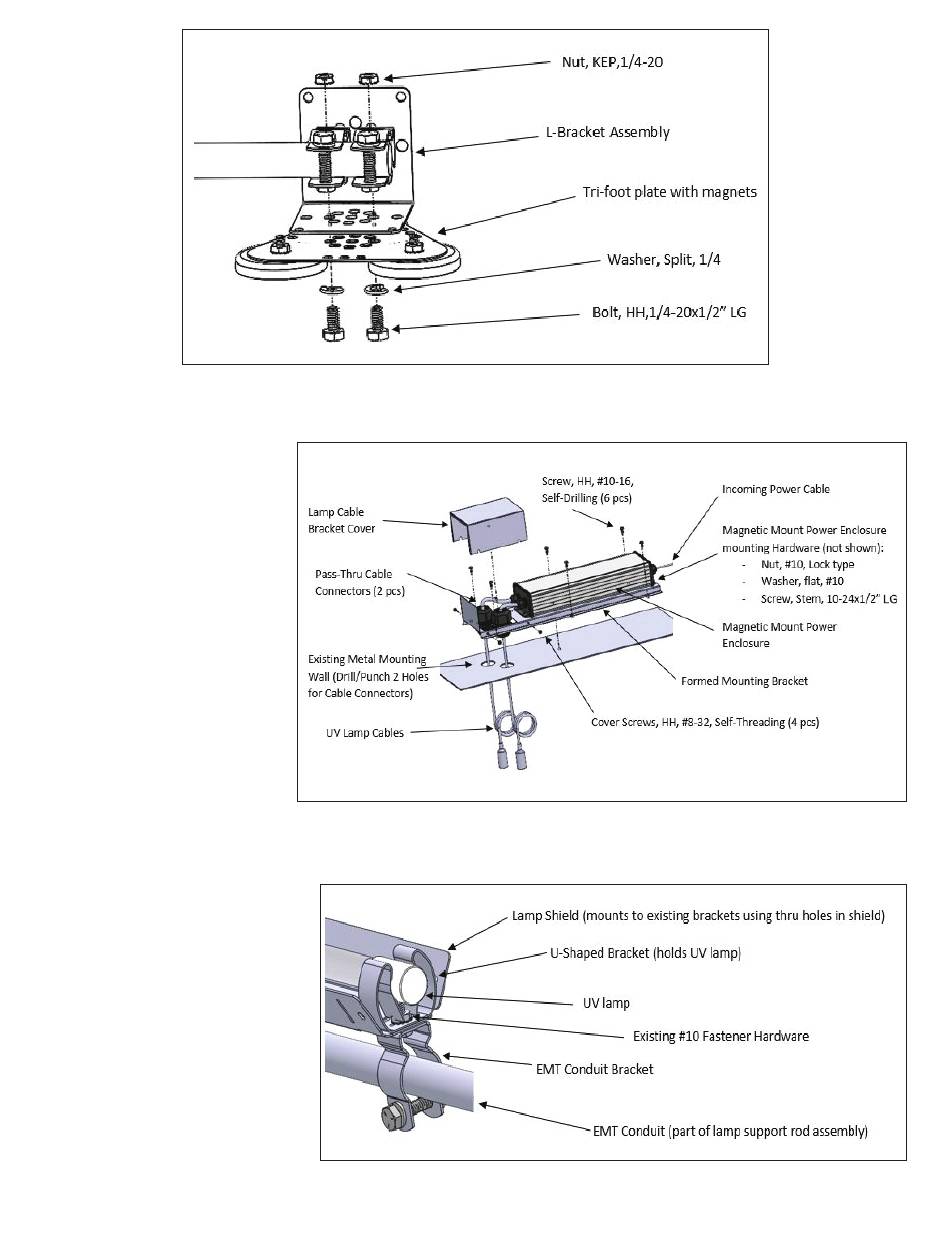

Figure 20: : EMT Tri-Foot Magnet Partial Assembly
(Exploded View)
OUTDOOR MOUNTING KIT
When installing Magnetic
Mount Power Enclosure
outdoors, order the Outdoor
Mounting Kit (refer to Fig-
ure 21). The outdoor mounting
kit is an optional accessory kit
designed to protect the
lamp cables from accidental
damage and provides a bracket
to securely mount the Magnetic
Mount Power Enclosure. This kit
comes with: a formed mounting
bracket, lamp cable cover plate,
two panel pass-thru cable con-
nectors, hardware and mount-
Figure 21: Outdoor Mounting Kit
ing instruction sheet.
OPTIONAL LAMP SHIELDS
Optional Lamp Shields can be
added to lamp support rod
assemblies to shield some areas
from UVC rays and direct the UV
intensity towards a specifi c area as
shown in Figure 22. The lamp shield
is designed to mount between
Inverted U-shaped bracket (which
holds UV lamp) and EMT conduit
bracket.
Figure 22: Generic Lamp Shield Installation
P/N 780108800 Rev A 10/22
page 16 of 20
