Summary of Contents for Field Controls Cube

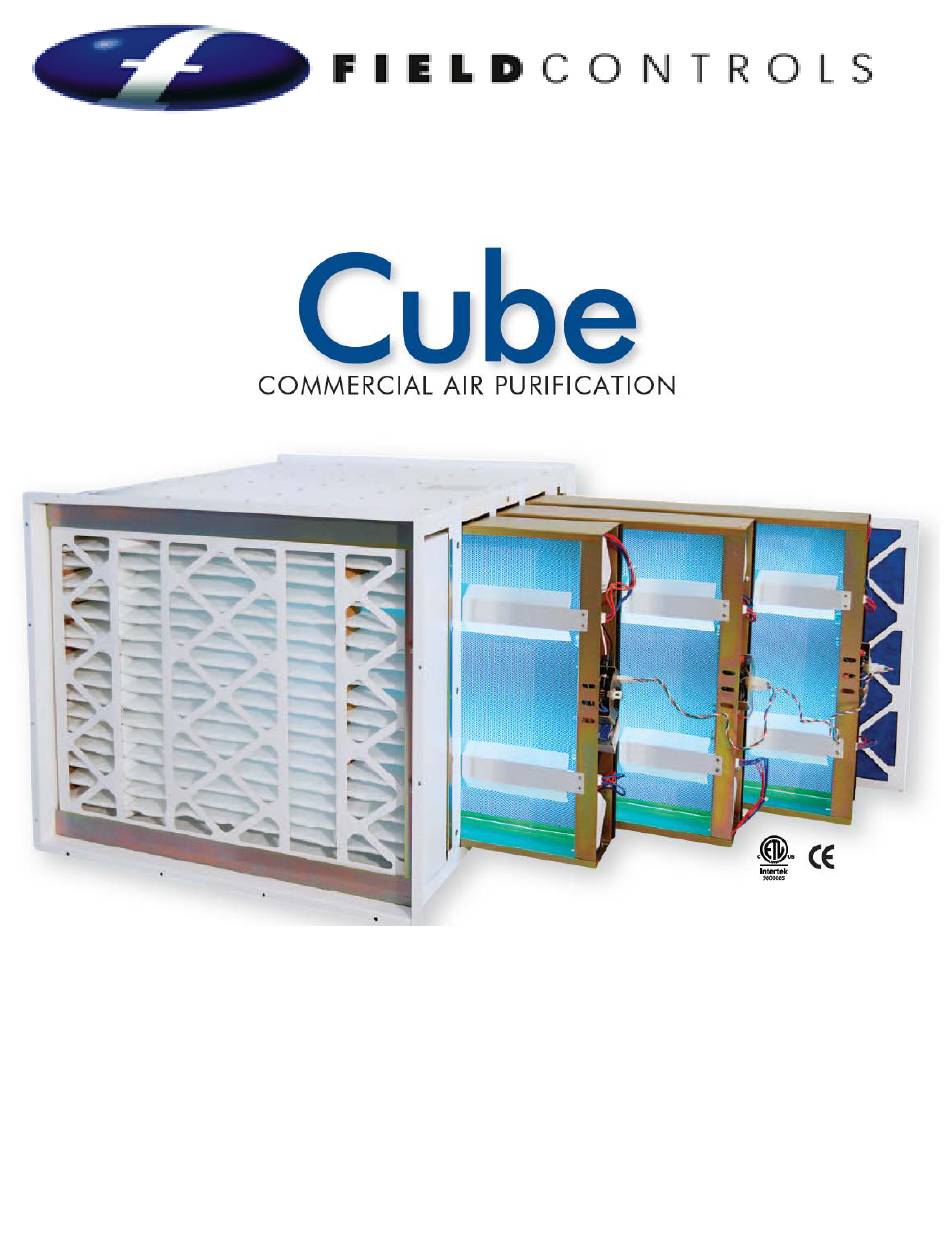

- Page 1 Field Controls * 2630 Airport Road * Kinston, NC 28504 * (252) 522-3031 * www.fieldcontrols.co...
-
Page 2: Table Of Contents
Table of Contents Important Safety Instruction ……………………………………….. 3 Specifications ……………………………………………………………… 4 Operation ……………………………………………………………………. 5 Air Cycles / HHSC+ ………………………………………………………. 5 Service ……………………………………………………………………….. 6 Changing Filters ………………………………………………………….. 6 Replacement Filters and Germicidal UVC Lamps …………….. 7 Resetting Remote Service Panel ………...…………………………. 8 Installation ………………………………………………………………….. -
Page 3: Important Safety Instruction
Warning - Always unplug the power cord from the Cube air purification system when changing the filter or germicidal ultraviolet lamps. Never look into an illuminated ultraviolet lamp as severe damage to the eyes will result. -
Page 4: Specifications
SPECIFICATIONS Power 110V/60Hz / 1.8 Amps 150watts 220V/50Hz /.09 Amps 150watts Fuse Replace only with AGC-6 Fuse Max Air Flow 2500 CFM 70.8 m3/min Max Face Velocity 720 FPM 220 m/min Repl. Lamp Part No. 46636400 Repl. Lamp Model No. 22LAMP Lamp Life Efficiency 2 Years... -
Page 5: Operation
There are many smart programmable thermostats that allow for automatic operation of the air-handler-fan unit when there is no demand for heating or cooling. It is important that the Cube is operating twenty (20) to Thirty (30) minutes every hour in a twenty four hour day to remove airborne contamination from the indoor environment. -
Page 6: Service
The service light turns from green to yellow after five (5) months and to red after six (6) months. Change the post filter before the red LED light illuminates. Carbon Post Filter is an onsite installed option. Order Field Controls part number 46728500 model number 1RK027. Field Controls recommends replacing minimum every six (6) months. The service light turns from green to yellow after five (5) months and to red after six (6) months. -
Page 7: Replacement Filters And Germicidal Uvc Lamps
1. Always wear protective eye goggles when servicing UVC germicidal lamps. 2. Unplug the power cord from main outlet on the Cube unit. 3. Remove the central Cube metal cover which is held in place with eight (8) screws. This will allow access to the 3 PRO-Cell™ modules and electronics. -
Page 8: Resetting Remote Service Panel
REPLACEMENT FILTERS and UVC GERMICIDAL LAMPS Replacement filters and UVC germicidal lamps are available from your authorized Field Controls Wholesaler / Distributor or Contractor. You may contact Field Controls for information on a Wholesaler / Distributor or Contractor at: Field Controls... -
Page 9: Installation
Attach the transitions to the Cube and fasten with #10 x 1/2 self-tapping sheet metal screws. (See Figure 2 illustration on following page) 1. Tape all seams between the air handler / blower return side and the outlet side of the Cube so not to allow air bypassing the system. - Page 10 FIGURE 2...
-
Page 11: Electrical Schematic
ELECTRICAL SCHEMATIC... -
Page 12: Performance Data
PERFORMANCE DATA... -
Page 13: Warranty
WARRANTY Refer to www.fieldcontrols.com for complete warranty statement...
