PHOTO-CATALYTIC AIR PURIFIER SYSTEMS
Models: DUO-11/24, DUO-11/120, DUO-14/24, DUO-14/120, PCUV-16UA, DUO-16/24, DUO-16/120
*includes
carbon
fi lter
PCUV-16UA ONLY
The Duo & PCUV models produce germicidal UVC Band light rays, which sterilize and reduce airborne
microorganisms and reduce Volatile Organic Compounds (VOC's) by a combination of photocatalytic chemical
reaction and carbon absorption as air passes through a heating or air conditioning system. They are installed in
the main supply or return duct and operate continuously to automatically purify the air in the home 24 hours a day.
The PCUV-16UA PCO Upgrade Kit is intended for retrofi t to an existing UV-16 or AH-1 germicidal UVC lamp
installation. The PCUV-16UA provides a new mounting structure with photo-catalytic VOC reduction and
carbon absorption technology for the existing lamp installation.
This product is not sold as a medical device and is not for the purpose of diagnosis of any disease or condition,
nor for use in the mitigation, treatment, or prevention of any disease or condition.
WARNING: Duo-11/24V, Duo-14/24V and Duo-16/24V models are intended for use with 24V ONLY!
WARNING: Duo-11/24V, Duo-14/24V and Duo-16/24V models are intended for use with 24V ONLY!
Do not exceed voltage rating. Severe damage to device and or fi re could result. Verify proper voltage.
Do not
exceed voltage rating. Severe damage to device and or fi re could result. Verify proper voltage.
This device MUST be installed by a qualifi ed agency in accordance with the manufacturer's installation instructions. The defi nition of
a qualifi ed agency is: any individual, fi rm, corporation or company which either in person or through a representative is engaged
in, and is responsible for, the installation and operation of HVAC appliances, who is experienced in such work, familiar with all the
precautions required, and has complied with all the requirements of the authority having jurisdiction.
Installed By:
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY
BEFORE PROCEEDING WITH THE INSTALLATION.
BEFORE PROCEEDING WITH THE INSTALLATION.
Please retain these instructions after installation.
Phone:
www.fi eldcontrols.com

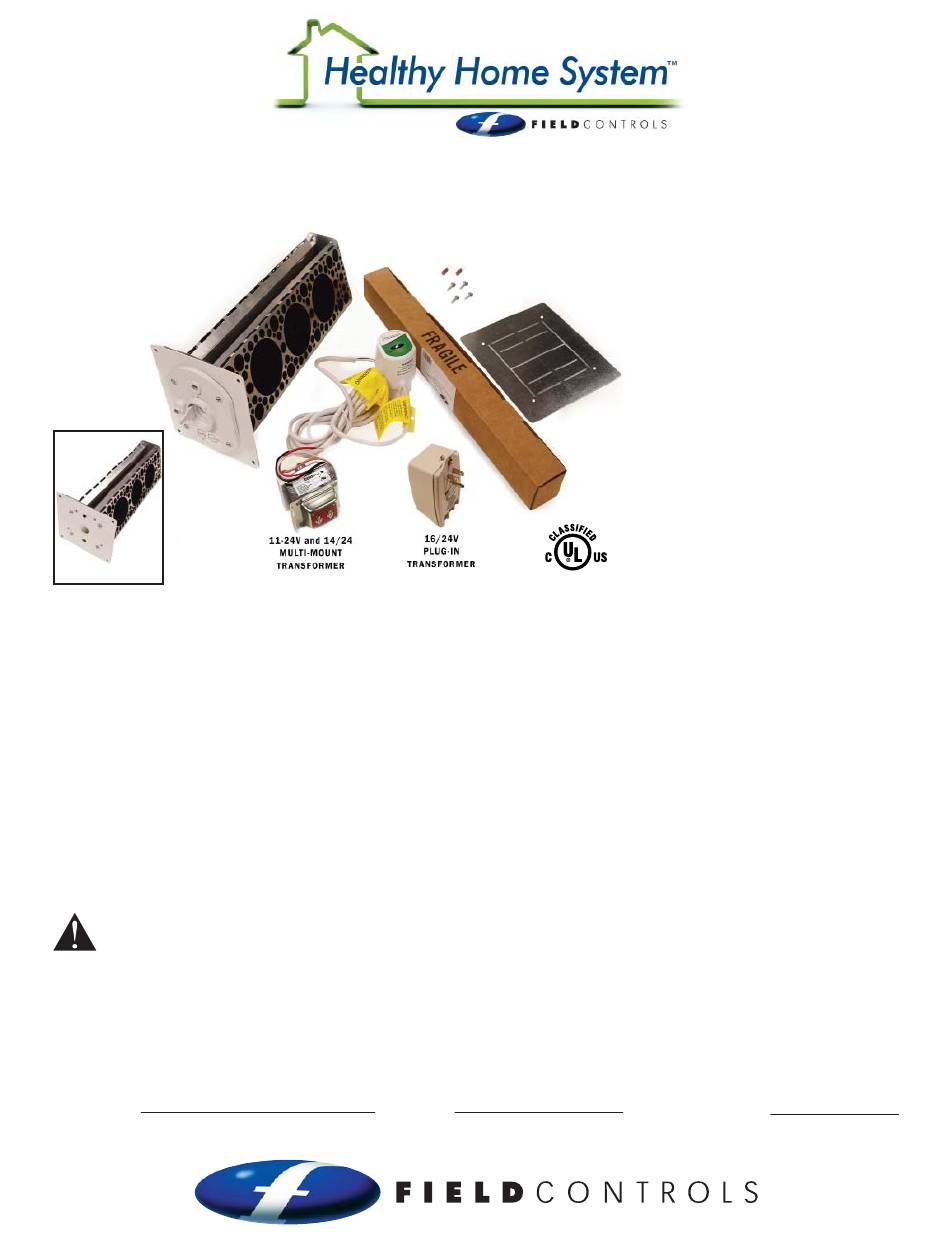

ITEMS INCLUDED IN KIT:
1 - 24 Volt or 120 Volt UV-Aire Ballast
Assembly (not included with PCUV)
1 - Photo-Catalytic and Carbon Duct Media
1 - UVC Germicidal Lamp
(not included with PCUV)
4 - Sheet Metal Mounting Screws
1 - Instruction Sheet
1 - Duct Board Mounting Bracket
1 - 24V Multi-Mount Transformer TR50VA
(included with 11/24 & 14/24 models)
1 - 24V Plug-in Transformer TR12024P
(included with 16/24 models)
2 - Fork Terminals
Installation Date:
P/N 46648100 09/18 Rev J
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Field Controls Healthy Home System DUO-11/24
Summary of Contents for Field Controls Healthy Home System DUO-11/24
- Page 1 PHOTO-CATALYTIC AIR PURIFIER SYSTEMS Models: DUO-11/24, DUO-11/120, DUO-14/24, DUO-14/120, PCUV-16UA, DUO-16/24, DUO-16/120 ITEMS INCLUDED IN KIT: 1 - 24 Volt or 120 Volt UV-Aire Ballast *includes carbon Assembly (not included with PCUV) fi lter 1 - Photo-Catalytic and Carbon Duct Media 1 - UVC Germicidal Lamp (not included with PCUV) 4 - Sheet Metal Mounting Screws...
-
Page 2: Safety Considerations
SAFETY CONSIDERATIONS WARNING: Never expose eyes or skin to UVC light from any source. WARNING: Never expose eyes or skin to UVC light from any source. • Looking directly at the UVC light may cause permanent eye damage or blindness. •... - Page 3 PRODUCT SIZING The UV-Aire DUO products are designed to fi t into supply and return air ductwork as well as fi t into HVAC systems. The UV-Aire DUO product insertion sizes and maximum HVAC system sizes are listed in Table 1 below.
- Page 4 7. Install the PCUV-16UA as directed for the Duo models. Use the included sheet metal screws or other appropriate fasteners to securely mount the PCUV-16UA to the mounting surface or Duct Board Adapter if used. 8. Complete the installation of a new UV-16/24 or UV-16/120 model as directed in the instructions includ- ed with the UV-16 unit, otherwise install the existing UV-16 lamp and ballast by instructions included with the unit.
- Page 5 d. Insert the Duo unit into the duct opening and attach it to the duct (or Ductboard Adapter Plate) with the four included sheet metal screws. The wider side of the V-shape of the Duo unit panels should face into the oncoming airstream, see Figure 2. e.
- Page 6 Figure 5 Figure 6 For 24V models, ensure that power has been disconnected to the circuit that will provide power to the 24V transformer, and install the transformer as directed in the installation instructions included with the transformer. WARNING: MAKE SURE POWER IS DISCONNECTED TO THE CIRCUIT TO BE USED TO PROVIDE POWER WARNING: MAKE SURE POWER IS DISCONNECTED TO THE CIRCUIT TO BE USED TO PROVIDE POWER TO THE DUO 24V UNIT! TO THE DUO 24V UNIT!
-
Page 7: Maintenance
MAINTENANCE WARNING: Disconnect power to the transformer before commencing WARNING: Disconnect power to the transformer before commencing inspection and cleaning. inspection and cleaning. NOTE: Wear disposable, non-absorbent protective gloves prior to inspection procedure in case of accidental breakage of glass. 1. - Page 8 NOTE: If blue light leaks through any portion of plenum and/or around mounting plate, unplug power supply cord immediately and seal affected areas and/or rotate ballast and repeat step #9. UV lamps contain a small amount of mercury, like a typical fl uorescent lamp.
- Page 9 HONEYCOMB AND CARBON REPLACEMENT If there is a need to replace the Pro-Cell honeycomb or carbon media, the subsequent procedure should be followed. WARNING: WARNING: Make sure power is disconnected from the unit before removing the unit. Note: Wear disposable non-absorbent protective gloves prior to replacement procedure in case of accidental breakage of glass.
-
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE 1. Do not wire the 24V models into the appliance 24 volt fan or thermostat circuit. This will cause premature ballast or lamp failure and void the warranty. For proper operation, 24V models requires 24VAC at all times. 2. -
Page 11: Replacement Parts List
PRO-Cell Honeycomb, DUO-11 80213041130 PRO-Cell Honeycomb, DUO-14 80213041150 PRO-Cell Honeycomb, DUO-16 For replacement parts, contact Field Controls at: Phone: 252-522-3031 • Fax: 252-522-0214 Email: sales@fi eldcontrols.com CLEAN-UP OF BROKEN LAMPS (see warnings on page two of this manual) UV lamps contain a small amount of mercury, like a typical fl uorescent lamp. DO NOT touch any of the mercury with your bare hands. - Page 12 This manual may be downloaded and printed from the Field Controls website (www.fi eldcontrols.com) This manual may be downloaded and printed from the Field Controls website (www.fi eldcontrols.com) WARRANTY WARRANTY For warranty information about this or any Field Controls product, visit: For warranty information about this or any Field Controls product, visit: www.fi...
