UV-AIRE
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE PROCEEDING WITH THE INSTALLATION
LEAVE THE INSTALLATION INSTRUCTIONS WITH THE OWNER/OPERATOR OF THE DEVICE
AFTER OPENING THE CARTON, UNPACK AND INSPECT THE UNIT AND LAMP FOR DAMAGE.
DO NOT INSTALL THIS UNIT IF ANY DAMAGE IS NOTICEABLE.
SAFETY CONSIDERATIONS
WARNING: Never expose eyes or skin to UVC light from any source.
• Looking directly at the UVC light may cause permanent eye damage or blindness.
• Never operate the UV-Aire Air Purifying System out of the plenum.
WARNING: UV light will break down plastic materials not rated for UV exposure:
(Examples: wire insulation, flex duct, drain pans, and humidifiers)
• The unit must be mounted at least 30" from the above stated type of materials.
• If it is necessary to mount the unit in direct line of sight of these types of materials, they must be
shielded with aluminum foil, aluminum foil tape, or sheet metal.
This product is not sold as a medical device and is not for the purpose of diagnosis of any disease or condition nor for
use in the mitigation, treatment, or prevention of any disease or condition.
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE PROCEEDING WITH THE INSTALLATION.
This device MUST be installed by a qualified agency in accordance with the manufacturer's installation instructions. The definition of
a qualified agency is: any individual, firm, corporation or company which either in person or through a representative is engaged
in, and is responsible for, the installation and operation of HVAC appliances, who is experienced in such work, familiar with all the
precautions required, and has complied with all the requirements of the authority having jurisdiction.
Installed By:
AIR PURIFYING SYSTEM
®
Model: UV-E
(For use with 12", 18", and 28" Field Controls Lamps)
(120/240 volt application)
Please retain these instructions after installation.
Phone:
www.fieldcontrols.com

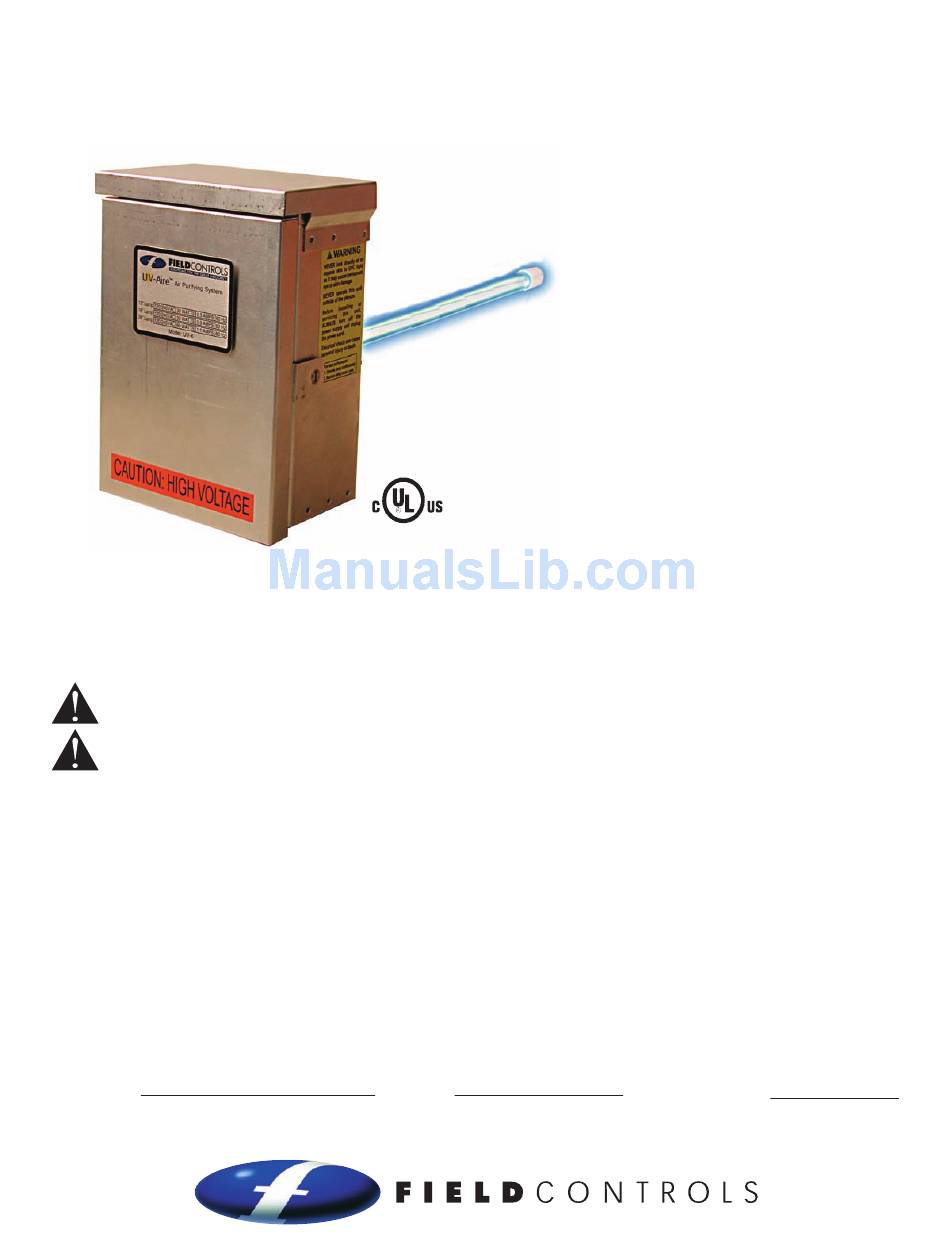

ITEMS INCLUDED IN KIT:
1- UV-E power unit (NEMA3 housing)
1- Mounting Template
4- Sheet metal mounting screws
1- Angled mounting bracket
1- Flat mounting bracket
1- Instruction Sheet
1- Wing nut
2- Hex nuts
1- Lamp
UV-C light inhibits the growth and reproduction of
germs and bacteria that circulate through a home's
heating and air conditioning system. The treatment
is a safe, silent, and proven way to make your
home a healthier place to live.
Installation Date:
