Figures 7, 8 and 9 show examples of UV-Aire Air Purifying System series product installed in Roof Top Mount
HVAC system. Figures 10, 11 and 12 show examples of product installed in HVAC ductwork. These examples
are not provided to be all exclusive and limited to but to assist the installer with where and how to install this
product. There are infi nite other product installation orientations which can be acceptable by following the
basic information and guidelines provided within this manual.

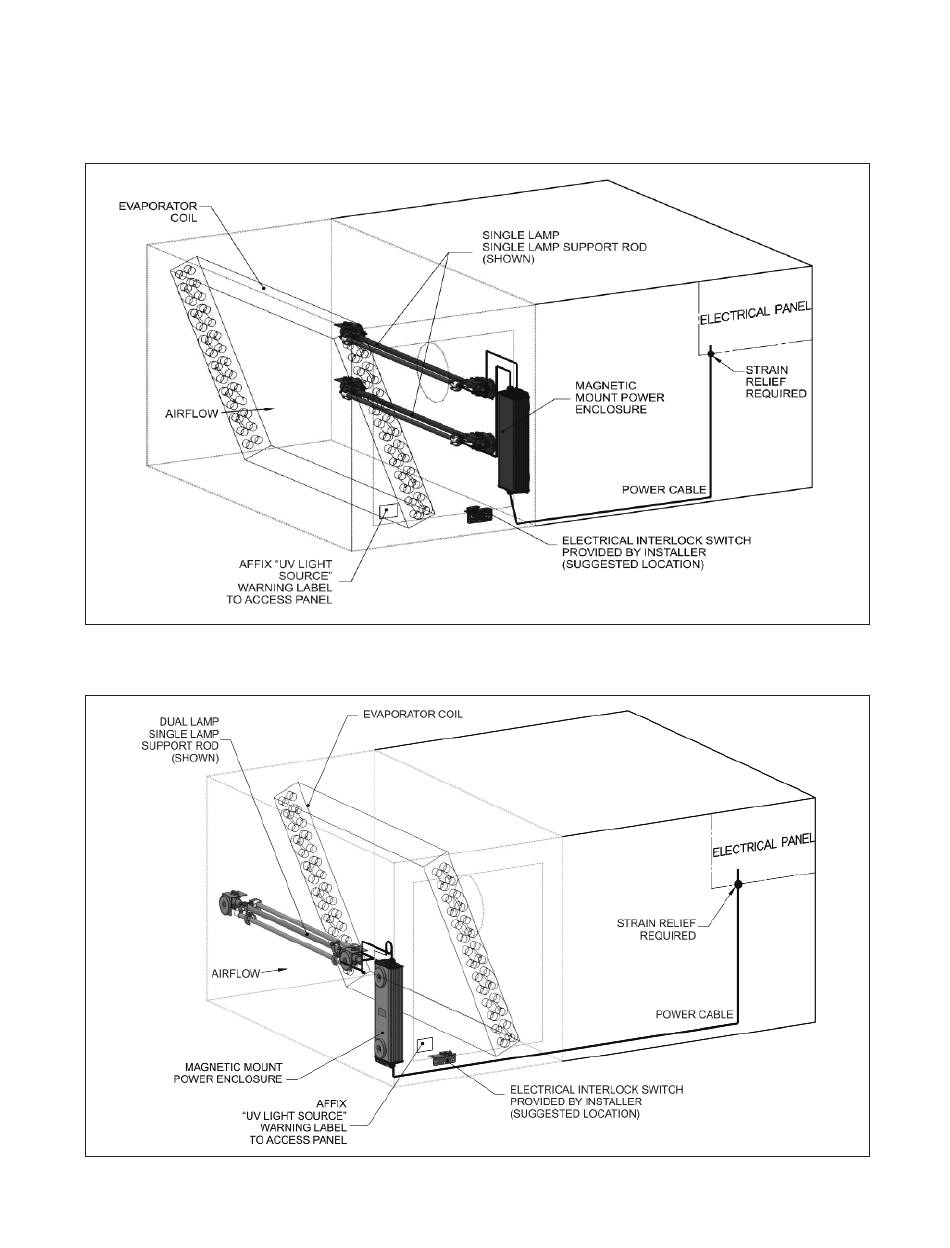

Figure 7: Generic Example of Rooftop HVAC Supply Air Side Installation
Figure 8: Generic Example of Rooftop HVAC Return Air Side Installation
page 11 of 20
