- Page 1 READ AND SAVE THESE INSTRUCTIONS Trio Plus AIR PURIFIER USER MANUAL...
-
Page 2: Table Of Contents
WARNING - Failure to follow the instructions below can damage the product Lorem ipsum or cause personal injury. TABLE OF CONTENTS To reduce the risk of fire or electric shock, do not use this appliance with any solid-state speed control device. Do not spray any paint, insecticide, ethyl alcohol, or any other chemical agent on Safety Precautions 01-02... -
Page 3: Product Overview

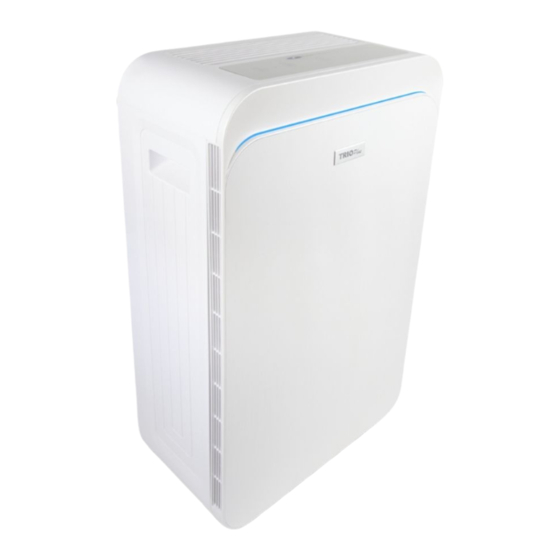

17.3 x 28 x 9 Filter Cover Product Features and Functions The Trio Plus air purifier combines three state-of-the-art air treatment processes into one powerful system. The 3-stage system boasts True HEPA filtration, two high-intensity UVC lamps, and Field Controls’ PRO-Cell™ Catalyst. -
Page 4: Operation Instructions
Control Panel Operating Instructions OPERATION INSTRUCTIONS Air quality is classified into five levels: Healthy, Good, Fair, Unhealthy, and Poor. The different colors of the air quality indicator light represent the air quality in different states. Speed Air Quality Indicator Poor Unhealthy Orange Fair... - Page 5 Symbol Symbol Meaning Symbol Symbol Meaning Name Name The UVC indicator will blink when the UVC lamps need to be replaced. After the When the purifier is on, cycle between modes UV lights are replaced, press, and by pressing the mode button. hold the UV light change indicator for 5 seconds to reset the UV light indicator.
- Page 6 Power Press to turn the purifier ON or OFF. Getting Started Setting up the TRIO Plus Step 3: Remove each filter from Step 4: Remove the padding from Before using the appliance, remove all the packaging materials covering the appliance and remove from behind the UVC lamps.
- Page 7 PRO-Cell Catalyst Step 5: Remove all four ties from the Step 6: Place unpackaged PRO-Cell ends of the UVC lamps. Catalyst in the innermost position Pre-filter closest to the UVC lamp with the tag pointing towards you, as shown. Step 9: Slide the pre-filter into the Step 10: Place front cover on the unit once pre-filter frame from the bottom.
-
Page 8: Maintenance Instructions
1 to 3-months. Filter Indicator Timing The TRIO Plus calculates the recommended replacement of the filter based This will extend the life of the HEPA on operation time and fan speed. If the unit is run at higher speeds, the filters... -
Page 9: Filter Replacement
Filter Replacement Steps Before replacing the filter, turn off the appliance and unplug from the power source. Step 5: Remove the new Step 6: Remove the packaging Carbon Filter from its packaging on the new HEPA filter and place Step 1: With both hands on the Step 2: Press the clasps of and place the new filter in the in the direction of the arrow with... - Page 10 WARNING – Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always shutdown and disconnect the power before replacing or servicing. Replace lamps with Field Controls Trio Plus UV lamp replacement kit Part Number # 602604500. Replacement steps: 1.
-
Page 11: Common Problems And Solutions
COMMON PROBLEMS AND SOLUTIONS Problem Possible Causes Remedial Action If the power light is off, Confirm the unit is appliance the unit is: plugged in. Step 7: Install filters into unit does not 1.Not plugged in, or Confirm all filters and starting with PRO-Cell, followed turn on 2.The filters or front panel is... -
Page 12: Transportation And Storage Conditions
Problem Possible Causes Remedial Action Problem Possible Causes Remedial Action The ambient air quality of Open the window to the room is poor. improve ventilation. ● The odor gradually Inlet and or outlet restricted. Replace the activated Poor odor ● Time to replace the filters. disappears after The filters need to be carbon filter. - Page 13 This manual may be downloaded and printed from the Field Controls website (www.fieldcontrols.com) WARRANTY For warranty information about this or any Field Controls product, visit: FieldControls.com/warranty Field Controls Technical Support FieldControls.com/trio-plus-support/...
