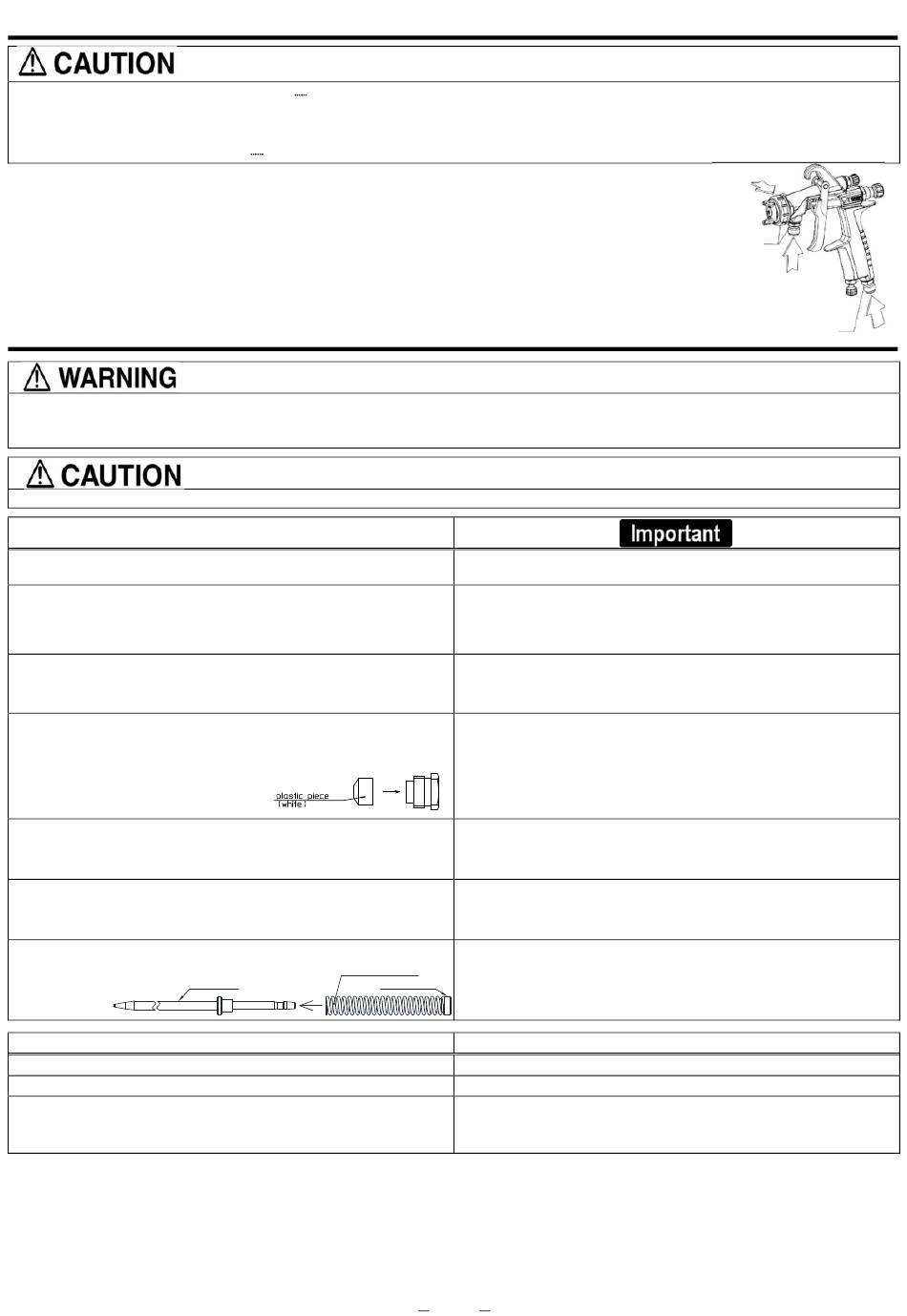

■ How to connect
・ Use clean air filtered through air dryer and air filter.
・ Before using the spray gun for the first time, clean fluid passages with thinner to remove rust preventive oil.
If not cleaned, the rust preventive oil can cause paint failure, such as fish eyes.
・ Firmly connect hose or cup to spray gun.
Step1. Connect an air hose to air nipple tightly.
Step2. Connect a fluid hose or a container to fluid nipple tightly.
Step3. Flush the spray gun fluid passage with a compatible solvent.
Step4. Pour paint into container, test spray and adjust fluid output as well as pattern width.
■Maintenance and inspection
・ First release air and pressure fully according to item No. 3 of "Improper use of equipment" of WARNING on page 2.
・ Only an experienced person who is fully knowledgeable of the equipment should perform maintenance and inspection.
・ Use neutral cleaner: pH value shall be 6 to 8, otherwise could cause corrosion.
・ Only use genuine ANEST IWATA parts for any maintenance or repairs.
Step-by-step procedure
1. Pour remaining paint to another container. Clean fluid passages and air cap assy.
Spray a small amount of thinner into fluid passages to clean them.
2. Clean each section with brush soaked with thinner and wipe out with waste cloth.
3. Before disassembly, fully clean fluid passages.
Remove fluid nozzle, using a ring spanner, box wrench or optional accessory spanner
(code 93538601)
4. If you need to adjust fluid needle packing set, first tighten it by hand (with fluid needle in
place). Then tighten it further about 1/6 turn (60-degree) by spanner.
When you remove needle packing set, do not leave the plastic tip of the packing in the
spray gun body.
5. To assemble the air valve, first assemble the air valve, air valve spring, and fluid adj. guide
assy. together. Next, insert fluid needle into fluid adj. guide assy., then fit it to spray gun
body and screw fluid adj. guide assy. in.
6. Before assembling the pattern adj. assy. or air adj. assy. back on to the gun body, fully turn
the adjustment knobs counterclockwise to open. Once in the gun body the pattern adj.
knob and air adj. knob can be tightened.
7. When you assemble the needle spring on the fluid needle, the plastic tip should be on the
opposite side as the fluid needle tip.
Where to inspect
1. Each hole passage of air cap assy and fluid nozzle
2. Packing and O ring
3. Leakage from seating surface between fluid nozzle and fluid needle
If not, dirty air can cause painting failure.
If not, disconnection of hose or drop of cup can cause bodily injury.
Needle spring assy
Fluid needle
1. Incomplete cleaning can result in poor spray pattern and contaminated paint.
It is especially important clean the gun fully and promptly after using two-component paint.
2. Soaking whole spray gun in solvent may cause spray gun malfunction. Also soaking air
cap assy. itself for extended period may cause a defective spray pattern.
When cleaning, never scratch the air cap assy., fluid nozzle, or fluid needle.
Avoid touching or damaging the tip of the fluid nozzle or needle.
3. During disassembly, avoid scratching the needle seating surface.
Either first remove the fluid needle or hold the trigger back while removing the fluid nozzle,
to protect the seating surface.
4. If you tighten the fluid needle packing set too much, fluid needle will not move smoothly,
resulting in paint leakage from tip of the fluid nozzle. Try to adjust it carefully while pulling
the trigger and confirming smooth movement of the fluid needle.
If you tighten it too much, first fully loosen it and then retighten again carefully.
5. If you try to fit air valve spring and air valve to the spray gun body without the fluid
needle, the air valve may not be fitted correctly and the packing inside fluid adj. guide
assy. can be damaged.
6. If pattern adj. knob or air adj. knob is not fully opened when tightening into gun body, the tip
of it can contact and damage the seating surface.
7. If plastic tip is on the wrong side, it may not operate normally. Incorrect installation of the
needle spring may cause a heavy trigger pull.
Plastic tip
Replace if it is crushed or deformed.
Replace if it is deformed or worn out.
Replace them if leakage does not stop after fully cleaning the fluid nozzle and needle.
If you replace the fluid nozzle or fluid needle only, ensure they fully match and confirm that
there is no leakage.
3
Fluid (Gravity)
Fluid nipple
Parts replacement standard
Fluid
(Suction / Pressure)
Air nippl e
Air
