INSTRUCTION MANUAL

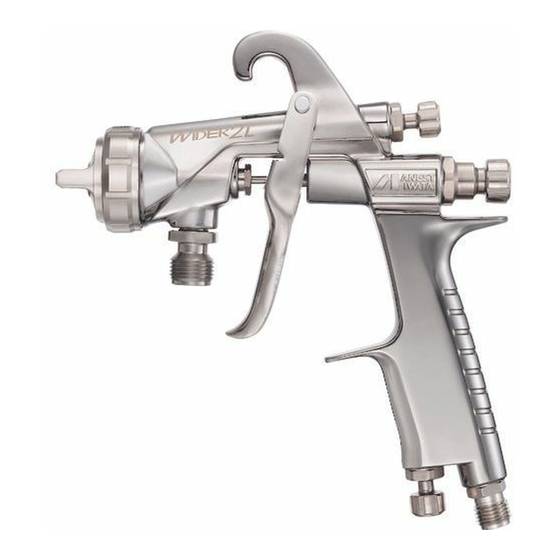

HVLP Spray Gun
Be sure to observe warning s and cautions in this instruction manual.
If not, it can cause paint ej e cti o n and serious bodil y injury by drawing organic sol v ent.
Be sure to observe fol l owing marked items which are especiall y important.
Indicates a potentially hazardous situation which, if not avoided, may result in serious injury or loss of
life.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury
or property damage.
Indicates notes which we ask you to observe. The safety precautions in this instruction manual are
the minimum necessary conditions. Follow national and local regulations regarding fire prevention,
electricity and safety as well as your own company regulations.
Symbol Marking on the Spray Gun:
This ANEST IWATA spray gun complies
with 2014/34/EU Directive relating to
equipment and protective systems
intended for use in explosive potentially
atmospheres.
Important specifications
Max. Pressure 0.70MPa / 7.0bar / 100psi
Noise l e vel 80dB(A)
Spray conditi o n Recommended
Measuring point 1m backwards from spray gun, 1.6m hei g ht
Max. temperature Atmosphere: 5°C~40°C(41°F~104°F)
Important
Never connect pressure feeding paint except pressure feed type spray gun.
Main specifications
Type of Nozzle orifice
Model
feed Φ mm (in)
WIDER2L-10G2P 1.0(0.039)
-12G2P 1.2 (0.047)
-14G2P Pressure 1.4 (0.055)
WIDER2L-2-10G2P 1.0 (0.039)
-12G2P 1.2 (0.047)
*1.Atomizing air pressure means air pressure at spray gun inlet when trigger is pulled and air flows.
II 2 G Ex h X
II
Complies Specific Group II
with Marking for (Surface)
European Explosion
Directive Protective
Air and Flui d : 5°C~43°C(41°F~109°F)
Fluid nozzle
Mark
Air cap assyMark
W2L WIDER2L-G2
W2L-2 WIDER2L-2-G2
2 G Ex h
Category Type of Ignition
(Zone 1&2) Atmosphere Protection
(GAS) (not appl i ed)
Model
WIDER2L-10G2P
WIDER2L-12G2P
WIDER2L-14G2P
WIDER2L-2-10G2P
WIDER2L-2-12G2P
Recommended condition
*1Atomizing air Air pressure Fluid output
pressure inside air cap
MPa (bar / PSI) MPa (bar / PSI)
0.20 0.07
(2.0/ 28) (0.7 / 10)
－ 1 －
This manual contains IMPORTANT
WARNINGS and INSTRUCTIONS.
Equi p ment i n this manual i s exclusivel y for
painting purposes.
Do not use for other purposes.
The operator shal l be full y conversant with
the requi r ements stated i n thi s i n struction
manual i n cludi n g i m portant warnings,
cautions and operation and correct handli n g.
Read and understand the instructi o n
manual , before use and retai n for reference.
IIB T6 Gb
Explosion Temperature Explosion
Group Class Protection
(Ethylene) (≤ 85°C) level
(EPL)
Fluid nozzl e – Flui d needle assy combination
Fluid nozzl e
Orifice Φ mm (in) Mark
Φ 1.0 (0.039) / W2L / 10
Φ 1.2 (0.047) / W2L / 12
Φ 1.4 (0.055) / W2L / 14
Φ 1.0 (0.039) / W2L-2 / 10
Φ 1.2 (0.047) / W2L-2 / 12
Air consumption Pattern width
ml/min l/min (cfm) mm (in)
300 250( 9.8)
500 470(16.6) 300(11.8)
500 300(11.8)
100 330(13.0)
430 (15.2)
130 350(13.8)
T
Amb
X
+5°C +40°C
Additional Ambient
conditions: Temperature
Any st a ti c
El e ct r i c it y shoul d
be di s charged
and needs to be
di v ert e d t o the
ground vi a a
conduct i v e ai r
hose not
i n cl u ded.
Fluid needl e assy
Mark
12H WIDER2
15HWIDER2
12HWIDER2
Air & fluid
Mass
connection
g (lbs.)
Air
G1/4
(NPS1/4)
375
(0.83)
Fluid
G3/8
(NPS3/8)
