Anest Iwata WIDER2 Instruction Manual

INSTRUCTION MANUAL

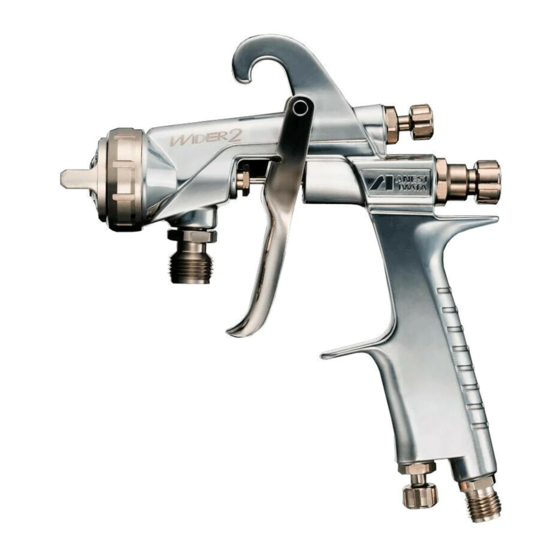

Spray Gun
Be sure to observe warning s and cauti o ns i n this instructi o n manual.If not, it can cause pai n t ej e ction and serious bodily injury by drawi n g organic solvent.
Be sure to observe fol l owing marked items which are especially important .
I
ndicates a potentially hazardous situation which, if not avoi d ed, may result in serious injury or loss of life.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or
property damage.
Indicates notes which we ask you to observe. The safety precautions in this instruction manual are the
minimum necessary conditions. Follow national and local regulations regarding fire prevention, electricity
and safety as well as your own company regulations.
IMPORTANT WARNING: Our spray guns, airbrushes, and other products are made to conform by our local group companies with local laws and regulations
that may differ from place to place. Improper trade of products outside of designated domestic territories (unauthorized reselling) can result in legal violations,
local fines, and penalties. ANEST IWATA CORPORATION assumes no liability for products acquired through unauthorized reselling and in such cases and due
to quality control protocols, unauthorized reselling renders the warranty null and void.
Abbreviate Marking
on the Spray Gun:
This ANEST IWATA
spray gun complies
Complies
with 2014/34/EU
with
Directive relating to
European
equipment and
Directive
protective systems
intended for use in
explosive potentially
atmospheres.
Important specifications
Max. Pressure 0.70MPa / 7.0bar / 100psi
Noise level 80dB(A)
Spray condi t i o n Recommended
Measuri n g point 1m backwards from spray gun, 1.6m height
Max. temperature Atmosphere: 5°C ~40°C (41°F~104°F)
Important
Never connect pressure feedi n g pai n t except pressure feed type spray gun.
Main specifications
Model Type of feed
WIDER2-12G2P Pressure
WIDER2-15K1S
-15K2S
-18K2S
Suction
-20R1S
-20R2S
-25W1S
WIDER2-15K1G
-15K2G
-18K2G
Gravity
-20R1G
-20R2G
-25W1G
WIDER2-2-08G2P
-10G2P Pressure
-12G2P
*1. Atomizing air pressure means air pressure at spray gun inlet when trigger is pulled and air flows.
II 2 G Ex h X
II 2
Specific Group II Category
Marking for (Surface) (Zone 1&2)
Explosion
Protective
Air and Fl u id: 5°C ~43°C (41°F~109°F)
Air cap assy
Nozzle orifice
Mark
mm (in)
1.2 (0.047) G2P
K1
1.5 (0.059)
K2
1.8 (0.071)
R1
2.0 (0.079)
R2
2.5 (0.098) W1
K1
1.5 (0.059)
K2
1.8 (0.071)
R1
2.0 (0.079)
R2
2.5 (0.098) W1
0.8 (0.031)
1.0 (0.039) 2-G2
1.2 (0.047)
G Ex h IIB
Type of Ignition Explosion
Atmosphere Protection Group
(GAS) (not applied) (Ethylene)
Recommended condition
*1 Atomizing air Fluid output
pressure
MPa (bar / PSI) ml/min
500
240
290
350
0.29
440
(3.0 / 43)
270
290
410
510
200
0.16
250
(1.6 / 23)
300
1
This manual contains IMPORTANT
WARNINGS and INSTRUCTIONS.
Equipment in this manual is exclusively for
painting purposes.
Do not use for other purposes.
The operator shall be fully conversant with
the requirements stated in this instruction
manual including important warnings,
cautions and operation and correct
handling.
Read and understand the instruction
manual, before use and retain for reference.
T6 Gb
Temperature Explosion Additional
Class Protection conditions:
( 85°C) level
Electricity should be
(EPL)
discharged and needs to
be diverted to the ground
via a conductive air hose
not included
Fluid nozzl e – Fl u id needle assy combi n ation
Fluid nozzl e
Orifice mm (i n ) Mark
1.2 (0.047) / W2 / 12
1.5 (0.059) / W2 / 15
1.8 (0.071) / W2 / 18
2.0 (0.079) / W2 / 20
2.5(0.098) / W2 / 25
0.8 (0.031) / W2-2/ V8-08
1.0 (0.039) / W2-2/ V8-10
1.2 (0.047) / W2-2/ V8-12
Air consumption Pattern width
l/min (cfm) mm (in)
500 (17.7) 400 (15.7)
200 ( 7.1) 210 ( 8.3)
290 (11.4)
330 (11.7)
340 (13.4)
260 ( 9.2) 260 (10.2)
290 (11.4)
360 (12.7)
280 (11.0)
200 ( 7.1) 220 ( 8.7)
320 (12.6)
330 (11.7)
340 (13.4)
260 ( 9.2) 280 (11.0)
320 (12.6)
360 (12.7)
310 (12.2)
360 (14.1)
340 (12.0) 360 (14.1)
380 (14.9)
T
Amb
X
+5°C +40°C
Ambient
Temperature
Any static
Fluid needl e assy
Mark
12H WIDER2
15 WIDER2
20 WIDER2
25 WIDER2
12 WIDER2
Air & fluid
Mass
connection
g (lbs.)
Air
G1/4
(NPS1/4)
375
(0.83)
Fluid
G3/8
(NPS3/8)
