Anest Iwata WIDER1 Series Instruction Manual

INSTRUCTION MANUAL

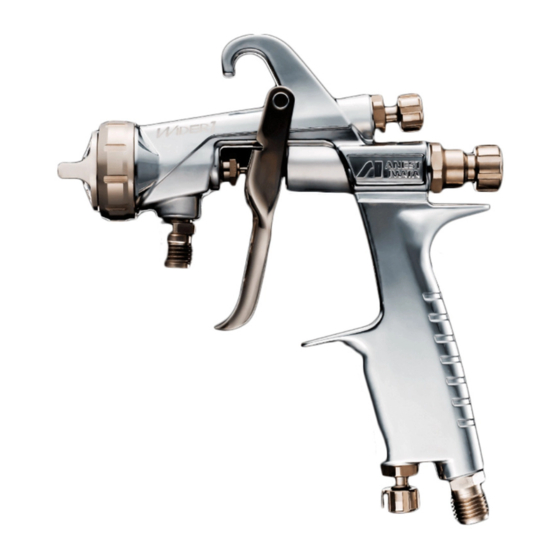

Spray Gun
Be sure to observe warning s and cautions in this instructi o n manual.
If not, it can cause paint ejection and seri o us bodily injury by drawing organic solvent.
Be sure to observe following marked items which are especi a lly i m portant.
Indicates a potentially hazardous situation which, if not avoided, may result in serious injury or loss of life.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury
or property damage.
Indicates notes which we ask you to observe. The safety precautions in this instruction manual are
the minimum necessary conditions. Follow national and local regulations regarding fire prevention,
electricity and safety as well as your own company regulations.
Symbol Marking on the Spray Gun:
This ANEST IWATA spray gun
complies with 2014/34/EU Directive
relating to equipment and protective
systems intended for use in explosive
potentially atmospheres.
Important specifications
Max. Pressure
Noise level
Spray condition
Measuring poi n t
Max. temperature
Important
Never connect pressure feeding paint except pressure feed type spray gun.
Main specifications
Model Type of feed
WIDER1-08E2P
-10E2P
Pressure
-13E2P
-15E2P
WIDER1-10E1S
-13K1S
-13H2S
Suction
-15K1S
-15H2S
-18N1S
WIDER1-10E1G
-13K1G
-13H2G
Gravity
-15K1G
-15H2G
-18N1G
*1. Atomizing air pressure means air pressure at spray gun inlet when trigger is pulled and air flows.
II 2 G Ex h X
II
Complies Specific Group II Category
with Marking for (Surface) (Zone 1&2)
European Explosion
Directive Protective
0.70MPa / 7.0bar / 100psi
78.7dB(A)
Recommended
1m backwards from spray gun, 1.6m height
Atmosphere: 5°C ~40°C (41°F~104°F)
Nozzle orifice Air cap assy
Mark
Φ mm (in)
0.8 (0.031)
1.0 (0.039)
E2P
1.3 (0.051)
1.5 (0.059)
1.0 (0.039) E1
K1
1.3 (0.051)
H2
K1
1.5 (0.059)
H2
1.8 (0.071) N1
1.0 (0.039) E1
K1
1.3 (0.051)
H2
K1
1.5 (0.059)
H2
1.8 (0.071) N1
2 G Ex h
Type of Ignition Explosion
Atmosphere Protection Group
(GAS) (not applied) (Ethylene)
Air and Flui d : 5°C ~43°C (41°F~109°F)
Recommended condition
*1 Atomizing air Fluid output
pressure
MPa (bar / PSI) ml/min
0.29 150
(3.0 / 43)
200
250
85
150
175
0.24 170
(2.5 / 36)
210
95
160
200
190
240
− 1 −
和文取説は、裏面にあります
This manual contains IMPORTANT
WARNINGS and INSTRUCTIONS.
Equipment in this manual is exclusively for
painting purposes.
Do not use for other purposes.
The operator shall be fully conversant with
the requirements stated in this instruction
manual including important warnings,
cautions and operation and correct handling.
Read and understand the instruction
manual, before use and retain for reference.
IIB T6 Gb
Temperature Explosion Additional
Class Protection conditions:
(≤ 85°C) level Any static
(EPL) Electricity
should be
discharged
and needs to
be diverted to
the ground via
a conducti v e
air hose not
included.
Fl u i d nozzle – Fluid needle assy combination
Fl u i d nozzle
Orifice Φ mm (in) Mark
Φ 0.8 (0.031) / W1 / 08
Φ 1.0 (0.039) / W1 / 10
Φ 1.3 (0.051) / W1 / 13
Φ 1.5 (0.059) / W1 / 15
Φ 1.8 (0.071) / W1 / 18
Air consumption Pattern width
l/min (cfm) mm (in)
190 (7.5)
270 (9.5)
220 (8.7)
210 (8.3)
220 (7.8)
240 (9.4)
75 (2.6) 120 (4.7)
145 (5.1) 155 (6.1)
225 (7.9) 160 (6.3)
145 (5.1) 170 (6.7)
225 (7.9) 175 (6.9)
170 (6.0) 170 (6.7)
75 (2.6) 130 (5.1)
145 (5.1) 170 (6.7)
225 (7.9) 175 (6.9)
145 (5.1) 180 (7.1)
225 (7.9)
190 (7.5)
170 (6.0)
T
Amb
X
+5°C +40°C
Ambient
Temperature
Fl u id needle
assy
Mark
08H WIDER1
13 WIDER1
18 WIDER1
Air & fluid Mass
connection
g (lbs.)
Air
G1/4
(NPS1/4)
290
(0.64)
Fluid
G1/4
(NPS1/4)
