INSTRUCTION MANUAL

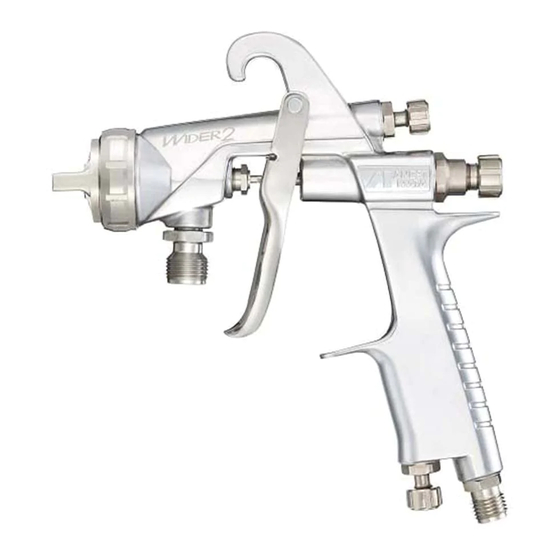

Spray Gun
Be sure to observe warning s and cauti o ns i n this instructi o n manual.
If not, it can cause paint ejecti o n and serious bodily i n jury by drawi n g organic solvent.
Be sure to observe fol l owing marked items which are especially important .
Indicates a potentially hazardous situation which, if not avoided, may result in serious injury or loss of
life.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury
or property damage.
Indicates notes which we ask you to observe. The safety precautions in this instruction manual are
the minimum necessary conditions. Follow national and local regulations regarding fire prevention,
electricity and safety as well as your own company regulations.
Abbreviate Marking on the Spray Gun:
This ANEST IWATA spray gun
complies with 2014/34/EU Directive
relating to equipment and protective
systems intended for use in explosive
potentially atmospheres.
Important specifications
Max. Pressure
Noise level
Spray condi t i o n
Measuri n g point
Max. temperature
Important
Never connect pressure feedi n g pai n t except pressure feed type spray gun.
Main specifications
Model Type of feed
WIDER2-12G2P Pressure
WIDER2-15K1S
-15K2S
-18K2S
Suction
-20R1S
-20R2S
-25W1S
WIDER2-15K1G
-15K2G
-18K2G
Gravity
-20R1G
-20R2G
-25W1G
WIDER2-2-08G2P
-10G2P Pressure
-12G2P
*1. Atomizing air pressure means air pressure at spray gun inlet when trigger is pulled and air flows.
II 2 G Ex h X
II
Complies Specific Group II Category
with Marking for (Surface) (Zone 1&2)
European Explosion
Directive Protective
0.70MPa / 7.0bar / 100psi
80dB(A)
Recommended
1m backwards from spray gun, 1.6m height
Atmosphere: 5°C ~40°C (41°F~104°F)
Air cap assy
Nozzle orifice
Mark
mm (in)
1.2 (0.047) G2P
K1
1.5 (0.059)
K2
1.8 (0.071)
R1
2.0 (0.079)
R2
2.5 (0.098) W1
K1
1.5 (0.059)
K2
1.8 (0.071)
R1
2.0 (0.079)
R2
2.5 (0.098) W1
0.8 (0.031)
1.0 (0.039) 2-G2
1.2 (0.047)
2 G Ex h
Type of Ignition Explosion
Atmosphere Protection Group
(GAS) (not applied) (Ethylene)
Air and Fl u id: 5°C ~43°C (41°F~109°F)
Recommended condition
*1 Atomizing air Fluid output
pressure
MPa (bar / PSI) ml/min
500
240
290
350
0.29
440
(3.0 / 43)
270
290
410
510
200
0.16
250
(1.6 / 23)
300
− 1 −
This manual contains IMPORTANT
WARNINGS and INSTRUCTIONS.
Equipment in this manual is exclusively for
painting purposes.
Do not use for other purposes.
The operator shall be fully conversant with
the requirements stated in this instruction
manual including important warnings,
cautions and operation and correct handling.
Read and understand the instruction
manual, before use and retain for reference.
IIB T6 Gb
Temperature Explosion Additional
Class Protection conditions:
( 85°C) level
Any static
(EPL)
Electricity should
be discharged
and needs to be
diverted to the
ground via a
conductive air
hose not
included.
Fluid nozzl e – Fl u id needle assy combi n ation
Fluid nozzl e
Orifice mm (i n ) Mark
1.2 (0.047) / W2 / 12
1.5 (0.059) / W2 / 15
1.8 (0.071) / W2 / 18
2.0 (0.079) / W2 / 20
2.5(0.098) / W2 / 25
0.8 (0.031) / W2-2/ 08
1.0 (0.039) / W2-2/ 10
1.2 (0.047) / W2-2/ 12
Air consumption Pattern width
l/min (cfm) mm (in)
500 (17.7) 400 (15.7)
200 ( 7.1) 210 ( 8.3)
290 (11.4)
330 (11.7)
340 (13.4)
260 ( 9.2) 260 (10.2)
290 (11.4)
360 (12.7)
280 (11.0)
200 ( 7.1) 220 ( 8.7)
320 (12.6)
330 (11.7)
340 (13.4)
260 ( 9.2) 280 (11.0)
320 (12.6)
360 (12.7)
310 (12.2)
360 (14.1)
340 (12.0) 360 (14.1)
380 (14.9)
T
Amb
X
+5°C +40°C
Ambient
Temperature
Fluid needl e
assy
Mark
12H WIDER2
15 WIDER2
18 WIDER2
20 WIDER2
25 WIDER2
12 WIDER2
Air & fluid
Mass
connection
g (lbs.)
Air
G1/4
(NPS1/4)
375
(0.83)
Fluid
G3/8
(NPS3/8)
