Section 6 - Endcap Installation: Installing Cable Guides - Draper FlexShade Instructions Installation & Operation

Exterior Clutch-Operated FlexShade

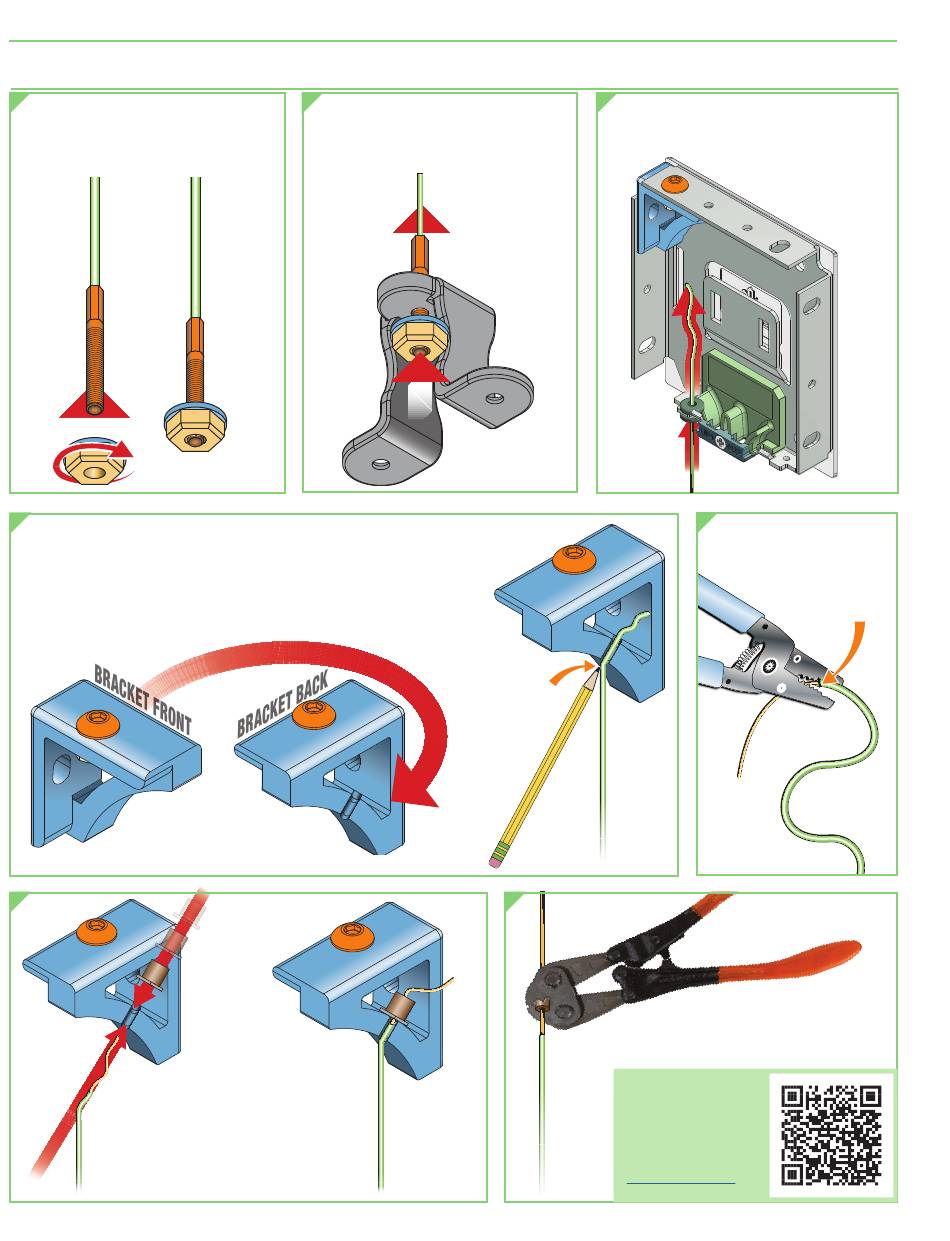

Section 6 - ENDCAP INSTALLATION: Installing Cable Guides

1.
Place washer and nut on
threads of bolted end of cable
to allow space for travel.
5.
Thread cable through groove on back side of
Bracket and pull taut. Mark cable as shown.
(Ceiling mount option shown.)
7.
Thread barrel onto
stripped end of cable,
above the groove on
back side of Bracket.
2.
Pull cable up, through Cable
Clamp on Mounting Bracket.
(Deck mount option shown.)
®
3
20# CLUTCHES ONLY:
.
Pull cable up, through Cable
Mark
8.
Crimp the barrels approximately
1/ 8 "
(3mm)
PLEASE NOTE:
Draper recommends
®
32-VC:VG Crimper,
available from
www.nicopress.com
page 8 of 12
Mounting Hole on Endcap.
( Ceiling mount option
shown.)
6.
Strip cable
to mark.
Mark
above mark.
