Bottom-Up FlexShade
Small and Large Hardware
Premium manually-operated bottom-up shade

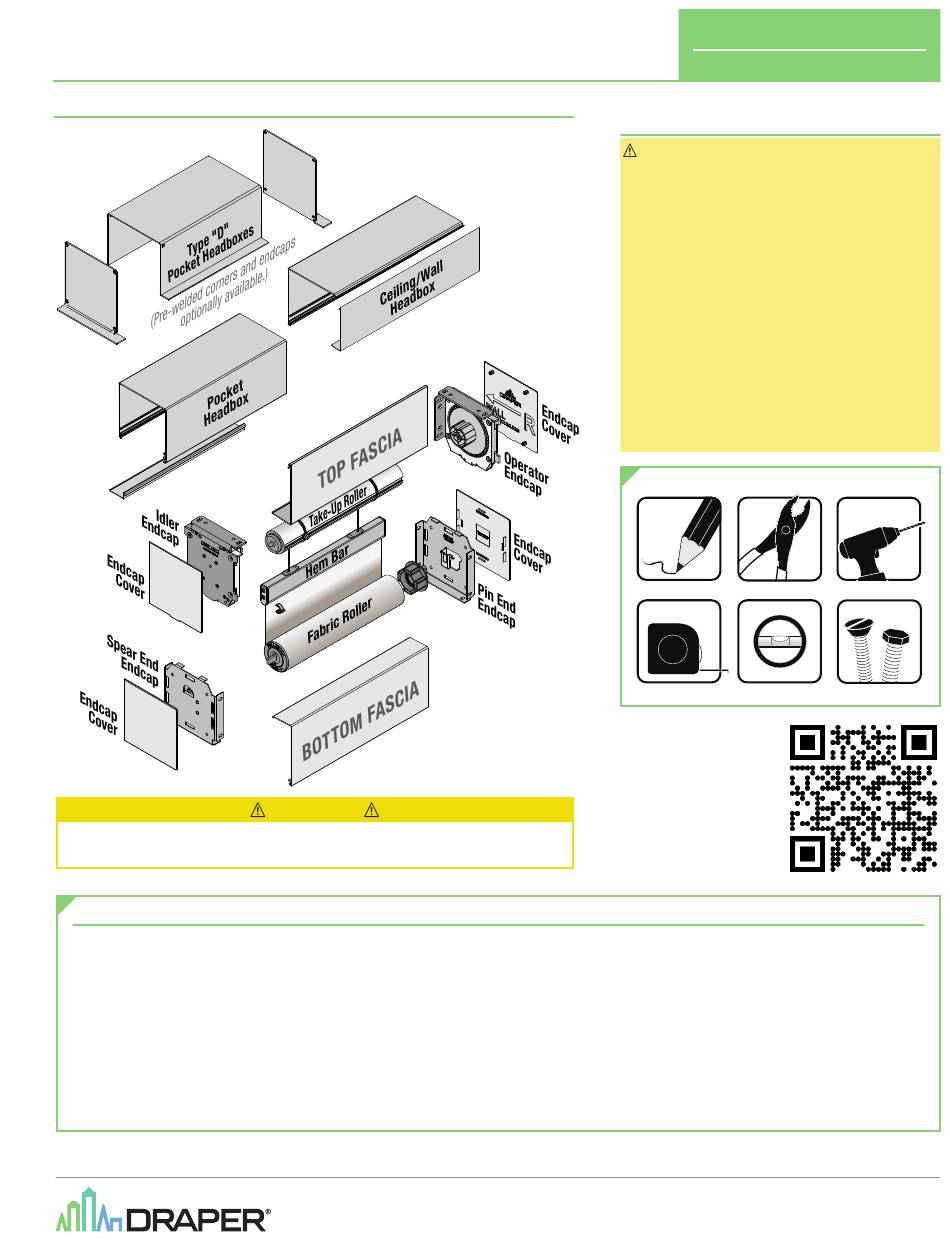

Overview - Components

Read and understand all warnings
before beginning installation.
Contents
Overview - Components .......................................................................................1
PLEASE READ - Important Installation Information ........................................1
PLEASE READ - Important Safety Information .................................................2
Section 1 - Endcap Covers .................................................................................3
Section 3 - Mounting Endcaps ............................................................................3
Section 4 - Shade Fabric Top Roller Mounting .................................................4
Section 5 - Top Roller Spring Assist Option .....................................................4
Section 6 -Idler End Safety Bracket ...................................................................5
NEXD,
®
CAUTION
(Page 2 of this document)
INSTRUCTIONS
INSTALLATION & OPERATION
PLEASE READ -
Important Installation Information
Caution:
1. Inspect all boxes to make sure you have received the
proper shades and parts. Controls may be shipped
separately, or in same carton as shades.
2. Open cartons lengthwise, taking care not to cut into
cardboard shipping container.
3. Before mounting shades, verify measurements on
label provided with shade, and ensure unit is installed
at correct width.
4. All endcaps, fascia, pocket headbox, and other
hardware must be installed level. Shades must be
level and square.
6. Read the following installation guidelines
thoroughly and follow them carefully. Failure to
do so may cause product to fall or otherwise fail,
and invalidates warranty.
7. Installer is responsible for selecting mounting
hardware appropriate for site conditions.
TOOLS REQUIRED
PENCIL
TAPE MEASURE
Scan this QR Code with
your smartphone to view
our online video, or visit
draperinc.com/go/NEXDinfo
Section 7 - Hem Bar ..............................................................................................5
Section 8 - Pre-tensioning Bottom Roller .........................................................5
Section 9 - Bottom Roller Assembly ..................................................................6
Section 10 - Installing Draw Cables ..................................................................6
Section 11 - Adjusting Fabric Tracking ..............................................................7
Section 13 - Surface Headbox or Pocket Headbox..........................................7
Section 15 - Dimensions ......................................................................................8
If you have any difficulties installing or servicing your
Bottom-Up FlexShade
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
© 2020 All Rights Reserved
PLIERS
POWER DRILL
LEVEL
HARDWARE
(by others)
............................................................7
NEXD, call your dealer or Draper, Inc.
®
|
FORM: Bottom-Up_NEXD_Inst20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlexShade NEXD and is the answer not in the manual?

Questions and answers

Related Manuals for Draper FlexShade NEXD

Summary of Contents for Draper FlexShade NEXD

  • Page 1: Table Of Contents

    If you have any difficulties installing or servicing your Bottom-Up FlexShade NEXD, call your dealer or Draper, Inc. ® Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: Bottom-Up_NEXD_Inst20 © 2020 All Rights Reserved...

  • Page 2: Please Read - Important Safety Information

    Most standard Draper fabrics may be cleaned at the window by vacuuming with a soft brush If the shade is telescoping, place a piece of high attachment. They also may be cleaned by using a sponge or soft cloth and mild solution of warm soapy quality gaffer tape about 1"...

  • Page 3: Section 1 - Endcap Covers

    Bottom-Up FlexShade NEXD, ® Small and Large Hardware page 3 of 8 Please Note: If installing Pocket Headbox or Surface Headbox, please install headbox FIRST (Section 13) Section 1 - Endcap Covers Section 2 - Converting Between Left and Right Mounting Caution: Before mounting shades, verify measurements on label provided with shade, Configurations on Wall and ensure unit is installed at correct width.

  • Page 4: Section 4 - Shade Fabric Top Roller Mounting

    Fig. 6-B: sure to use stop balls provided in hardware packet necessary to compress the spring-loaded spear. by Draper to set up and down travel limits. Stop ® Caution: The retaining clip must be installed around the idler-end shaft as shown to prevent the...

  • Page 5: Section 6 -Idler End Safety Bracket

    Bottom-Up FlexShade NEXD, ® Small and Large Hardware page 5 of 8 Section 6 -Idler End Safety Bracket Section 8 - Pre-tensioning Bottom Roller Please Note: The fabric retraction device must be pre-tensioned to 3-5 revolutions. WARNING: If Shade is installed at a distance from the window greater than the diameter of Caution: NEVER ROTATE THE SPEAR IN THE OPPOSITE DIRECTION roller assembly, Safety Bracket must be...

  • Page 6: Section 9 - Bottom Roller Assembly

    Figure 9 Section 10 - Installing Draw Cables Warning: Do NOT trim draw cables until Section 11, Step 11. Caution: Starting locations of the Cable Attachment Studs are provided by Draper with each ® shade. Although these locations can be adjusted, the installer must ensure that any adjustments do not cause the hem bar to run into the brackets, possibly damaging the unit.

  • Page 7: Section 11 - Adjusting Fabric Tracking

    Bottom-Up FlexShade NEXD, ® Small and Large Hardware page 7 of 8 Section 11 - Adjusting Fabric Tracking Loosen smaller 1. Slide both ends of the draw cable close to 7. Tighten the smaller screw to lock the Figure 11 the attachment stud flat washers.

  • Page 8: Section 14 - Bead Chain Limits And Safety Device Installation

    Shade Width=Cloth Width + 1 " (41mm) *These dimensions are different for each shade and are provided by Draper with your order. Dimension “A” is a vertical cable spacing. Dimension “B” is the distance from the vertical cable spacing to the vertical edge of the shade.
