Draper FlexShade NEXD Installation & Operation Instructions

Draper FlexShade NEXD Installation & Operation Instructions

Clutch operated
Hide thumbs Also See for FlexShade NEXD:
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
Clutch Operated FlexShade
Window shade with heavy duty clutch and 3" hardware profile. Cassette option.

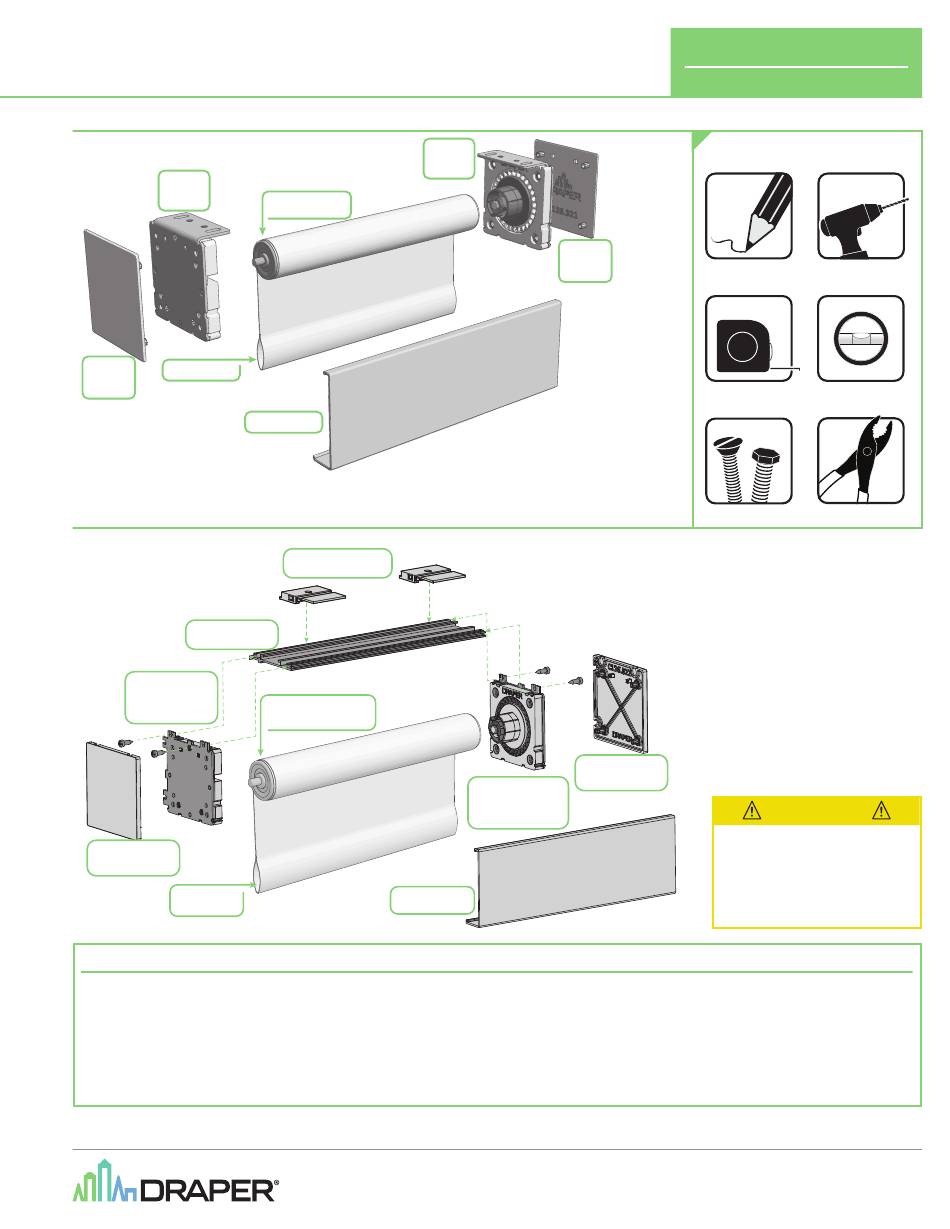

Overview - FlexShade NEXD Components
NEXD
Idler
Endcap
Idler
1" Eliptical Hem Bar
Endcap
Cover
Overview - Cassette FlexShade NEXD Components )
NEXD Cassette
Extrusion
Cassette
NEXD Idler
Endcap
Cassette
NEXD Idler
Endcap Cover
1" Eliptical
Hem Bar
Contents
FlexShade NEXD Components .......................................................1
Warnings and Safety Information ..................................................2
Field Adjustments, Cleaning and Maintenance ............................2
Cassette FlexShade NEXD Components .......................................1
Section 1
FlexShade NEXD Mounting With Bracket ......................................3
Section 2
Jamb Mounting ................................................................................3
NEXD
Clutch
Endcap
1¼" Roller with
Spline Atachment
Fascia
NEXD Cassette
Mounting Brackets
1¼" Roller with
Spline Atachment
Fascia
NEXD
®
Clutch
Endcap
Cover
Cassette
NEXD Clutch
Endcap Cover
Cassette
NEXD Clutch
Endcap
Section 3
Section 4
NEXD Cassette Installation .............................................................4
Section 5
Shade Fabric Roller Mounting ........................................................5
Section 6
Section 7
Fascia ................................................................................................5
Section 8
Dimensions .......................................................................................6
Clutch Operated FlexShade® NEXD, call your dealer or Draper, Inc.
© 2018 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
TOOLS REQUIRED
POWER DRILL
PENCIL
TAPE MEASURE
LEVEL
HARDWARE
PLIERS
(by others)
CAUTION
Read and understand
all warnings
(Page 2 of
this document)
beginning installation.
If you have any difficulties installing or servicing your
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: FlexShadeNEXD_Inst18
before

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlexShade NEXD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper FlexShade NEXD

Summary of Contents for Draper FlexShade NEXD

  • Page 1: Table Of Contents

    Section 8 Dimensions ..................6 If you have any difficulties installing or servicing your Clutch Operated FlexShade® NEXD, call your dealer or Draper, Inc. Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: FlexShadeNEXD_Inst18...

  • Page 2: Please Read Warnings And Safety Information

    Window covering products manufactured by Draper, when properly installed, should require no operational maintenance or lubrication. Most of Draper’s standard fabrics may be cleaned at the window by vacuuming with a soft brush attachment. They also may be cleaned by using a sponge or soft cloth and mild solution of warm soapy water.

  • Page 3: Flexshade Nexd Mounting With Bracket

    3 of 6 Window shade with heavy duty clutch and 3” hardware profile. Cassette option. Section 1 - FlexShade NEXD Mounting With Bracket Please Note: Installer is responsible for selecting mounting hardware appropriate for site conditions. Section 1.1 - Wall Mounting with Bracket...

  • Page 4: Nexd Cassette Installation

    Clutch Operated FlexShade NEXD ® page 4 of 6 Window shade with heavy duty clutch and 3” hardware profile. Cassette option. Section 4 - NEXD Cassette Installation Figure 10-A Section 4.1 - Ceiling Mount 2. Insert rail along top BRACKET of shade onto back side of mounting brackets.

  • Page 5: Shade Fabric Roller Mounting

    Caution: Do not allow shade roller to become exposed by running shade fabric too far down. Be sure to use stop balls provided in hardware packet by Draper to set up and down travel limits. Stop balls by others may be too small, and become lodged in clutch mechanism.

  • Page 6: Dimensions

    NEXD ® page 6 of 6 Window shade with heavy duty clutch and 3” hardware profile. Cassette option. Section 8 - Dimensions Clutch Operated FlexShade NEXD Dimensions Shade Width Shade Width Overall Width includes plastic endcap covers (Pair adds " (3mm) to Overall Width) ”...
